Bently Nevada TK-3E Vibration Monitoring Test Kit 177313-01-01-00

Gambar besar : Bently Nevada TK-3E Vibration Monitoring Test Kit 177313-01-01-00

Detail produk:

Tempat asal:	Amerika Serikat
Nama merek:	Bently Nevada
Sertifikasi:	CE
Nomor model:	TK-3e 177313-01-01-00

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 buah
Harga:	Bisa dinegosiasikan
Kemasan rincian:	Pengepakan karton standar
Waktu pengiriman:	12-16 minggu
Syarat-syarat pembayaran:	T/T
Menyediakan kemampuan:	100 pcs per bulan

Kontak Chat Sekarang

Bently Nevada TK-3E Vibration Monitoring Test Kit 177313-01-01-00

Deskripsi

Listrik:	95-125 Vac, 50/60 Hz, minimum 1A 190-250 Vac, 50/60 Hz, minimum 1A	Udara:	Maksimal 90 psi (6,2 bar).
Kisaran Amplitudo Getaran::	50 μm hingga 254 μm (2 hingga 10 mil) dari puncak ke puncak.	Rentang Mikrometer Spindel:	0 – 25,4 mm (0 – 1000 mil).
Ukuran fisik:	299mm248mm195mm	Berat:	5,22 kg
Kisaran suhu operasional:	0 ° C hingga 50 ° C	Kisaran suhu penyimpanan:	-18 °C hingga 65 °C
Menyoroti:	TK-3E Bently Nevada Vibration Monitoring System , 90psi Bently Nevada Vibration Monitoring System , 125Vac TK3 Proximity System Test Kit

TK-3E Bently Nevada Vibration Monitoring System TK3 Proximity System Test Kit 177313-01-01-00

Product Specifications

Attribute	Value
Electric	95-125 Vac, 50/60 Hz, 1A minimum 190-250 Vac, 50/60 Hz, 1A minimum
Air	90 psi (6.2 bar) maximum
Vibration Amplitude Range	50 μm to 254 μm (2 to 10 mils) peak-to-peak
Spindle Micrometer Range	0 – 25.4 mm (0 – 1000 mils)
Physical Size	299 mm × 248 mm × 195 mm
Weight	5.22 kg
Operational Temperature Range	0 °C to 50 °C
Storage Temperature Range	-18 °C to 65 °C

TK3 Proximity System Test Kit TK-3E 177313-01-01-00

Description

The TK-3 Proximity System Test Kit simulates shaft vibration and position for calibrating Bently Nevada monitors. It verifies the operating condition of the monitor readouts as well as the condition of the proximity transducer system. A properly calibrated system ensures that the transducer inputs and the resulting monitor readings are accurate.

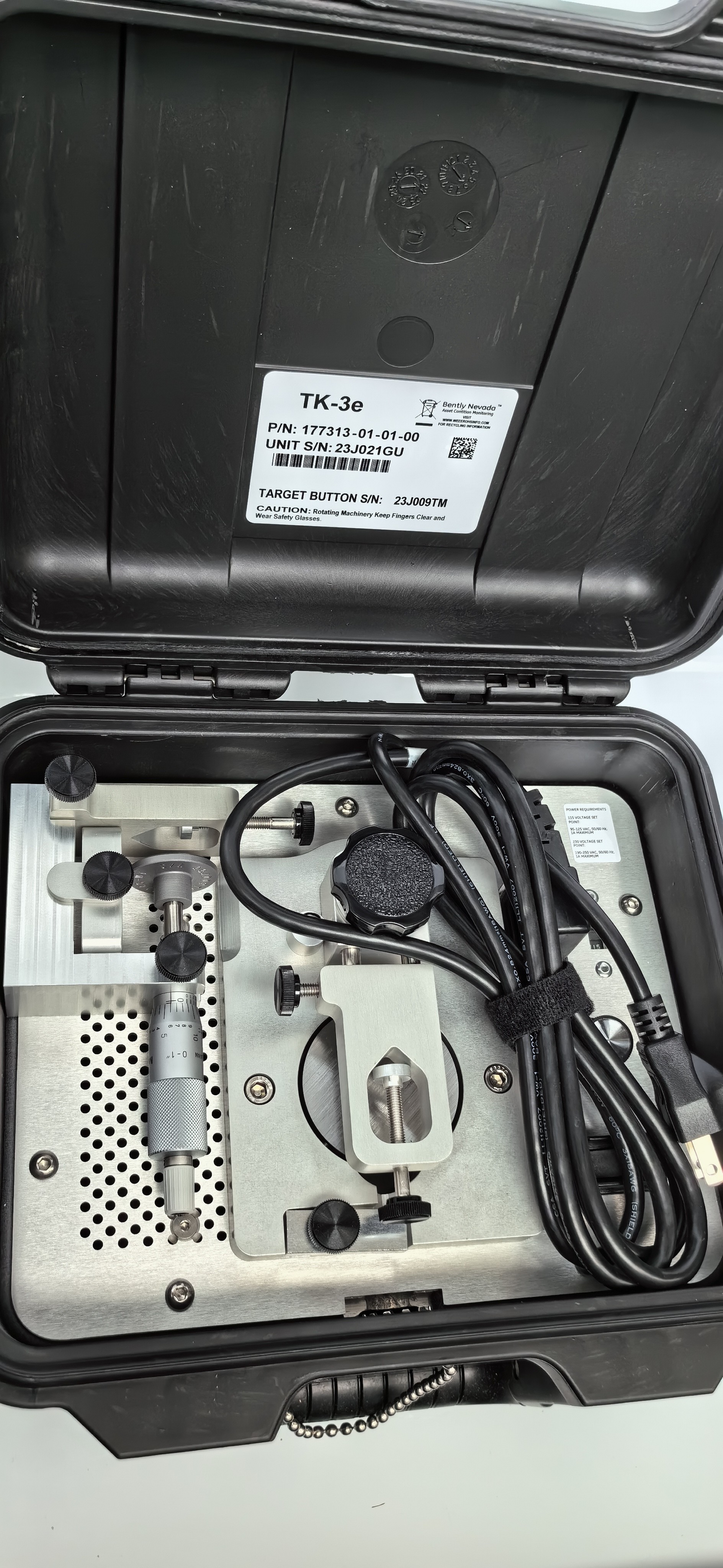

The TK-3 uses a removable spindle micrometer assembly to check the transducer system and position monitor calibration. This assembly features a universal probe mount that will accommodate probe diameters from 5 mm to 19 mm (0.197 in to 0.75 in). The mount holds the probe while the user moves the target toward or away from the probe tip in calibrated increments and records the output from the Proximitor Sensor using a voltmeter. The spindle micrometer assembly also features a convenient magnetic base for ease of use in the field.

Ordering Information

Electric Driven TK-3e

177313-AA-BB-CC

A: Scale Units
01	English
02	Metric
B: Power Cord Type
01	American
02	European
03	Brazilian
C: Agency Approvals
00	None

Air Driven TK-3g

177314-AA-BB

A: Scale Units
01	English
02	Metric
B: Agency Approvals
00	None

Related Part Numbers

16710-30

177230-01-01-CN

991-25-50-01-00

21000-28-05-00-024-03-02

177313-02-02-00

330106-05-30-05-02-00

190501-00-00-CN

330106-05-30-05-02-CN

200200-05-05-CN

200151-060-03-00

330106-05-30-10-02-00

330101-00-25-05-01-CN

200152-150-02-10

330106-05-30-10-02-CN

330103-00-05-10-01-00

200200-05-05-CN

330130-080-00-00

330105-02-12-10-02-00

330101-00-16-10-02-CN

330130-040-00-00

330180-91-CN

330101-00-25-05-01-CN

330130-040-00-CN

330190-085-00-00

330102-00-17-10-02-CN

330130-080-01-00

330195-02-12-05-00

330102-02-12-10-02-00

330130-045-00-CN

330400-01-CN

330103-00-05-10-01-00

330130-045-01-00

330400-02-CN

330103-00-08-05-02-CN

330130-075-01-CN

330901-00-90-10-02-CN

330103-00-08-05-02-CN

330130-085-00-CN

990-04-70-01-00

330103-00-12-15-02-CN

330180-51-00

990-05-50-01-00

330104-00-06-05-01-CN

330902-02-12-05-02-CN

990-05-70-02-00

330104-00-08-05-02-CN

330907-05-30-10-02-00

330180-91-00

330930-040-00-00

330130-045-03-00
