CE Endress Hauser Unifit CPA842 Process Assembly DN25 Standard 316L

CE Endress Hauser Unifit CPA842 Process Assembly DN25 Standard 316L
CE Endress Hauser Unifit CPA842 Process Assembly DN25 Standard 316L CE Endress Hauser Unifit CPA842 Process Assembly DN25 Standard 316L CE Endress Hauser Unifit CPA842 Process Assembly DN25 Standard 316L

Gambar besar :  CE Endress Hauser Unifit CPA842 Process Assembly DN25 Standard 316L

Detail produk:
Tempat asal: Jerman
Nama merek: Endress+Hauser
Sertifikasi: CE
Nomor model: CPA842-1040/0(CPA842-AA1E1AAA1+PK)
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 buah
Harga: Bisa dinegosiasikan
Kemasan rincian: Pengepakan karton standar
Waktu pengiriman: 12-14 minggu
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 100 pcs per bulan
Kontak Chat Sekarang

CE Endress Hauser Unifit CPA842 Process Assembly DN25 Standard 316L

Deskripsi
Persetujuan: Area yang tidak berbahaya Bahan; Bagian Permukaan yang Dibasahi: 1.4435/316L; Ra=0,76
segel: EPDM-FDA (USP Kelas VI) Koneksi proses: standar DN25
Model perangkat: 1 Aksesori Terlampir: Soket las G1 1/4 DN25 standar miring, 1,4435/316L
Menyoroti:

Unifit CPA842 Process Assembly

,

Endress Hauser Unifit CPA842

,

DN25 Endress Hauser Unifit CPA842

Endress Hauser Process Assembly Unifit CPA842 Accessory Enclosed 1.4435/316L
Product Specifications
Attribute Value
Approval Non-hazardous area
Material; Surface Wetted Parts 1.4435/316L; Ra=0,76
Seals EPDM-FDA (USP Class VI)
Process Connection DN25 standard
Device Model 1
Accessory Enclosed Weld-in socket G1 1/4 DN25 standard oblique, 1.4435/316L

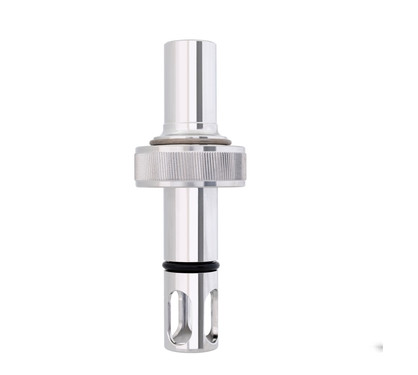

Product Overview
The Unifit CPA842 process assembly meets the highest requirements for inline cleaning and sterilization. Designed for easy installation of pH/ORP, oxygen, conductivity or cell growth sensors into tanks and pipelines for hygienic and sterile applications.
Key Features
  • Complies with EHEDG, 3-A, ASME BPE, FDA and USP 88 class VI standards
  • Ideal for permanent installation in tanks and pipework
  • Suitable for pressures up to 16 bar (stainless steel)
  • Optional protection guard and leakage control available
Applications
  • Food and beverage processing
  • Life sciences applications
  • Chemical processing
Technical Specifications
Measuring principle
Potentiometric
Installation
Fixed installation assembly
Characteristic
Open and closed tank, piping
Design
Hygienic assembly with corresponding process connections
Material
Holder: stainless steel 1.4404
Seals: EPDM, FKM, FFKM, all FDA conform, USP Class VI
Dimension
Immersion depth: 29.5 to 86.5 mm (1.16 to 3.4 inch)
Process temperature
-15 to 140 °C (5 to 280 °F)
Process pressure
16 bar up to 140 °C (232 psi up to 284 °F)
Connection
DN25 standard, DN25 B.Braun, Clamp 1.5" (short and long), Clamp 1.5'' angled at 15°, Clamp 2", Varivent flange N, dairy fitting DN50
