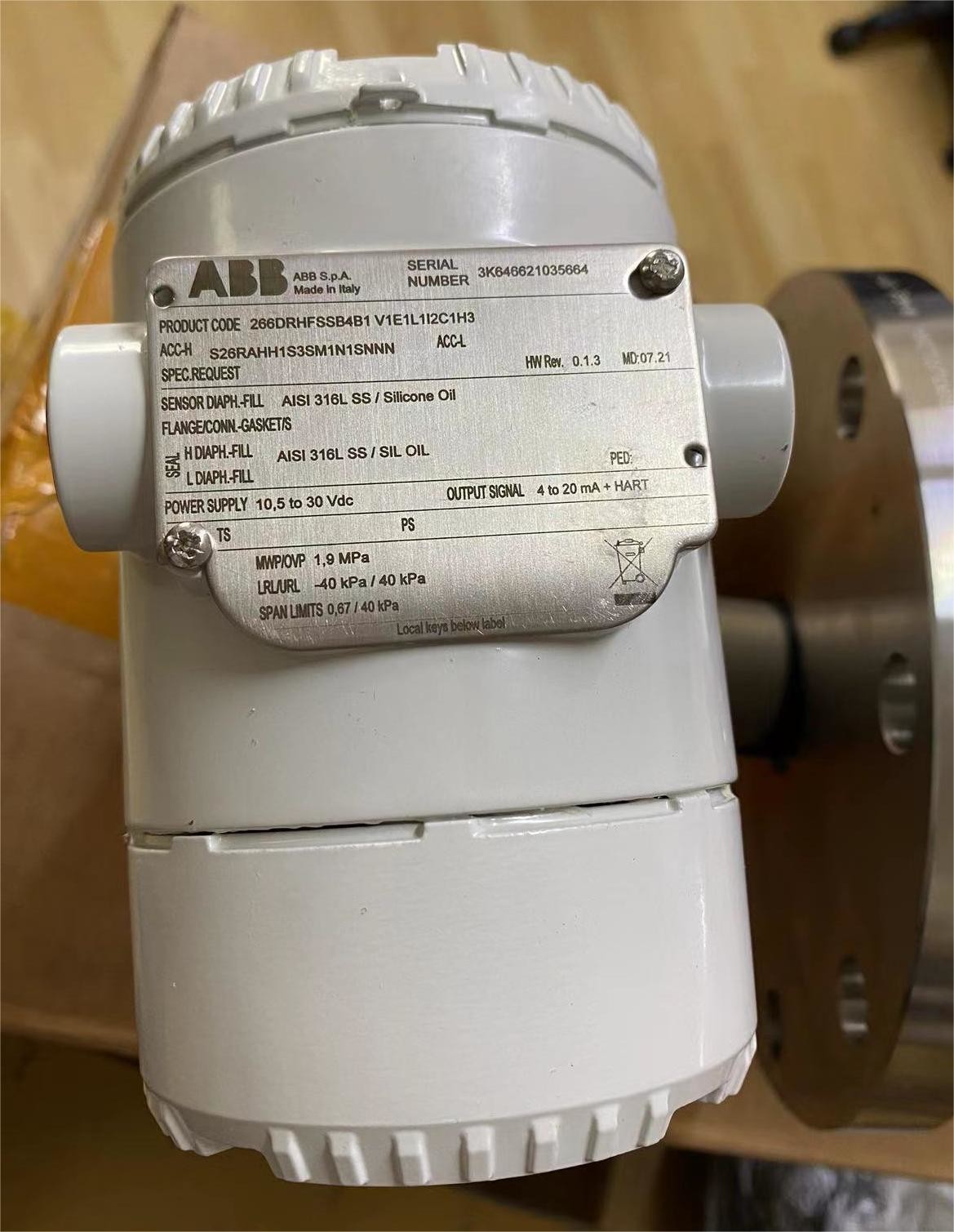

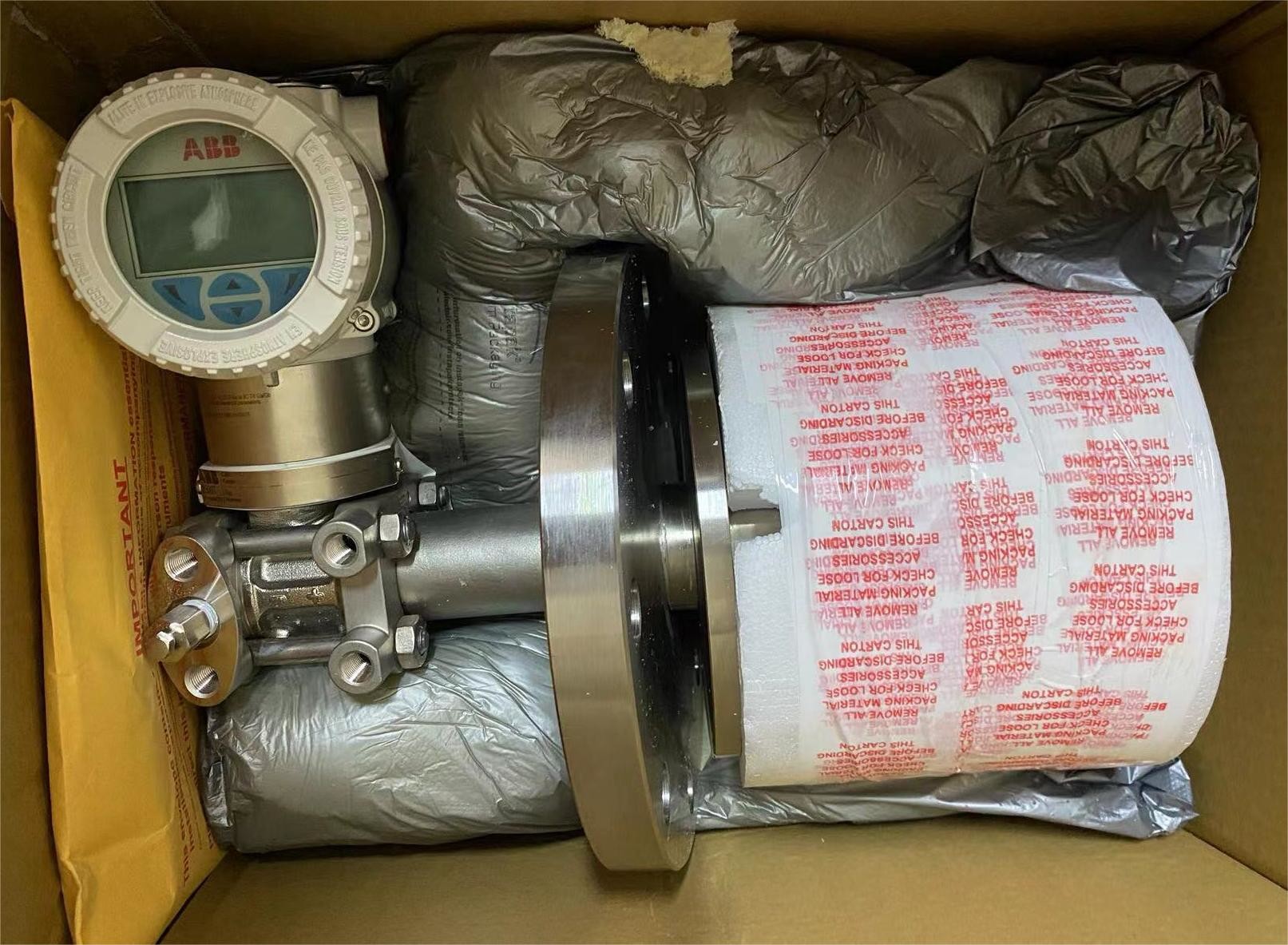

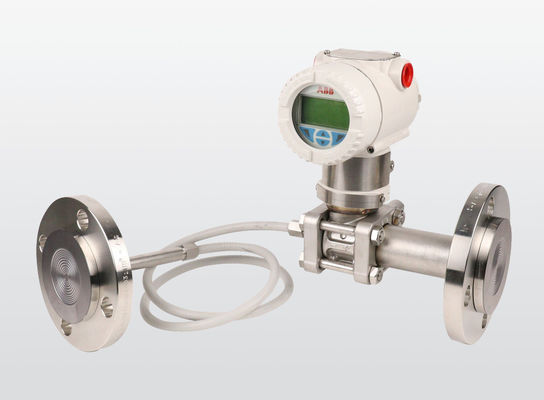

ABB TZIDC 266DRH Valve Positioner with Silicone Oil Fill Fluid

Gambar besar : ABB TZIDC 266DRH Valve Positioner with Silicone Oil Fill Fluid

Detail produk:

Tempat asal:	Italia
Nama merek:	ABB
Sertifikasi:	CE
Nomor model:	266DRHFSSB4B1V1E1L1I2

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 buah
Harga:	Bisa dinegosiasikan
Kemasan rincian:	Pengepakan karton standar
Waktu pengiriman:	berdasarkan permintaan
Syarat-syarat pembayaran:	T/T
Menyediakan kemampuan:	100 pcs per bulan

Kontak Chat Sekarang

ABB TZIDC 266DRH Valve Positioner with Silicone Oil Fill Fluid

Deskripsi

SENSOR - Batas rentang - karakter ke-7:	0,67 dan 40 kPa	Aplikasi - karakter ke-8:	Pengukuran diferensial pada tekanan statis standar
Bahan diafragma:	AISI 316 L ss	Isi cairan (bagian yang dibasahi) - karakter ke-9:	MINYAK SILIKON
Flensa proses:	AISI 316 L ss (Koneksi horizontal)	/bahan adaptor dan sambungan (bagian yang dibasahi) - karakter ke-10:	1/2 inci – 14 NPT-f melalui adaptor
Menyoroti:	266DRH ABB TZID Valve Positioner , ABB TZID Valve Positioner With Seals , abb 266drh

266DRH ABB TZID Valve Positioner Pressure Transmitters With Seals 266DRHFSSB4B1V1E1L1I2

Product Specifications

SENSOR - Span limits - 7th character	0.67 and 40 kPa
Application - 8th character	Differential measurement at standard static pressure
Diaphragm material	AISI 316 L ss
Fill fluid (wetted parts) - 9th character	Silicone oil
Process flanges	AISI 316 L ss (Horizontal connection)
/adapters material and connection (wetted parts) - 10th character	1/2 in. – 14 NPT-f through adapter

Product Overview

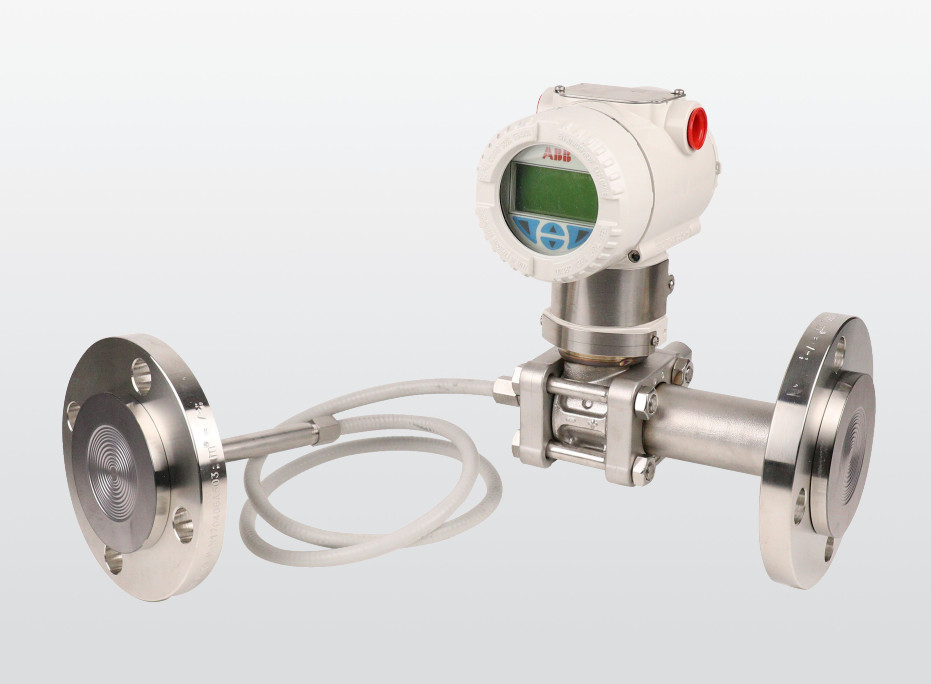

ABB 266DRH Pressure Transmitters with Seals 266DRHFSSB4B1V1E1L1I2

These transmitters feature one or two remote seals connected via capillary to the transmitter sensor. Available configurations include:

Model 266DRH for differential measurement with various seal combinations
Models 266HRH or 266NRH with remote/direct mount seal on positive side
Direct mount seal integrated with transducer via short capillary connection
Standalone single assembly suitable for process mounting

Pressure Limits

Model 266DRH	Fill fluid	Overpressure limits
Sensor F to S	Silicone oil	0.07 kPa abs, 0.7 mbar abs, 0.5 mmHg and 21 MPa, 210 bar, 3045 psi
Sensor E	Silicone oil	0.07 kPa abs, 0.7 mbar abs, 0.5 mmHg and 16 MPa, 160 bar, 2320 psi
Sensor B (266DRH only)	Silicone oil	0.07 kPa abs, 0.7 mbar abs, 0.5 mmHg and 7 MPa, 70 bar, 1015 psi
Sensor F to S	Inert (Galden)	0.135 kPa abs, 1.35 mbar abs, 1 mmHg and 21 MPa, 210 bar, 3045 psi
Sensor E	Inert (Galden)	0.135 kPa abs, 1.35 mbar abs, 1 mmHg and 16 MPa, 160 bar, 2320 psi
