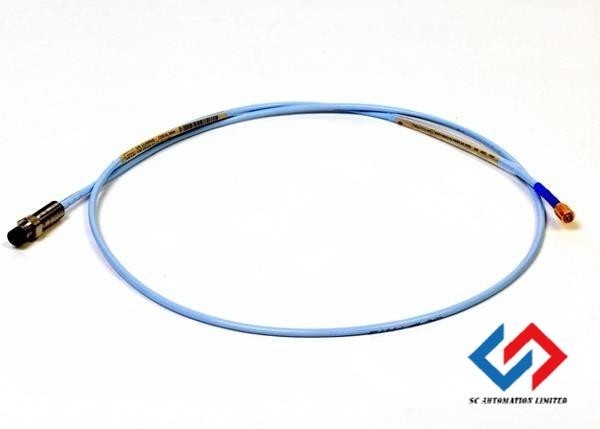

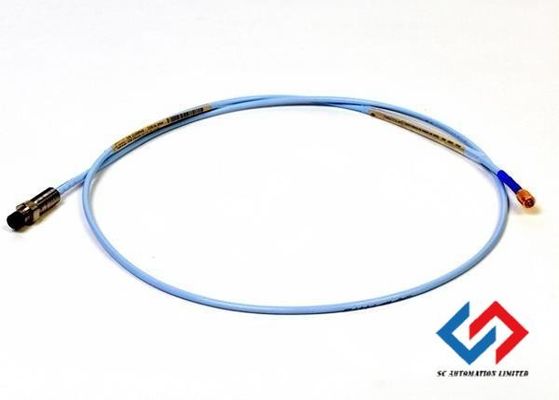

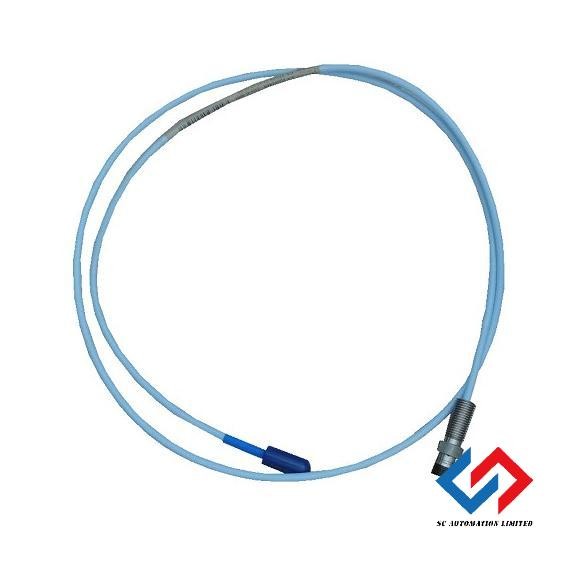

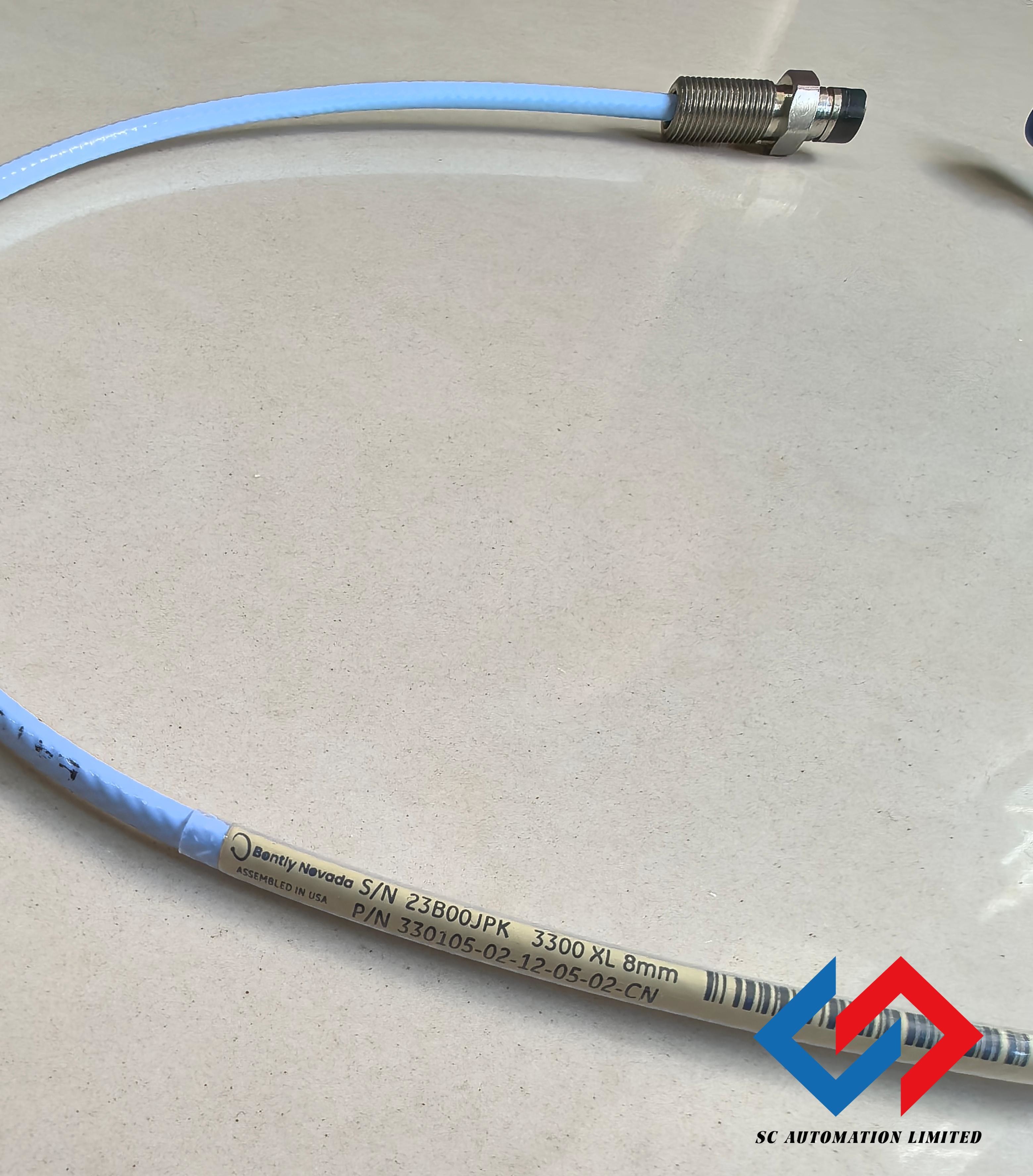

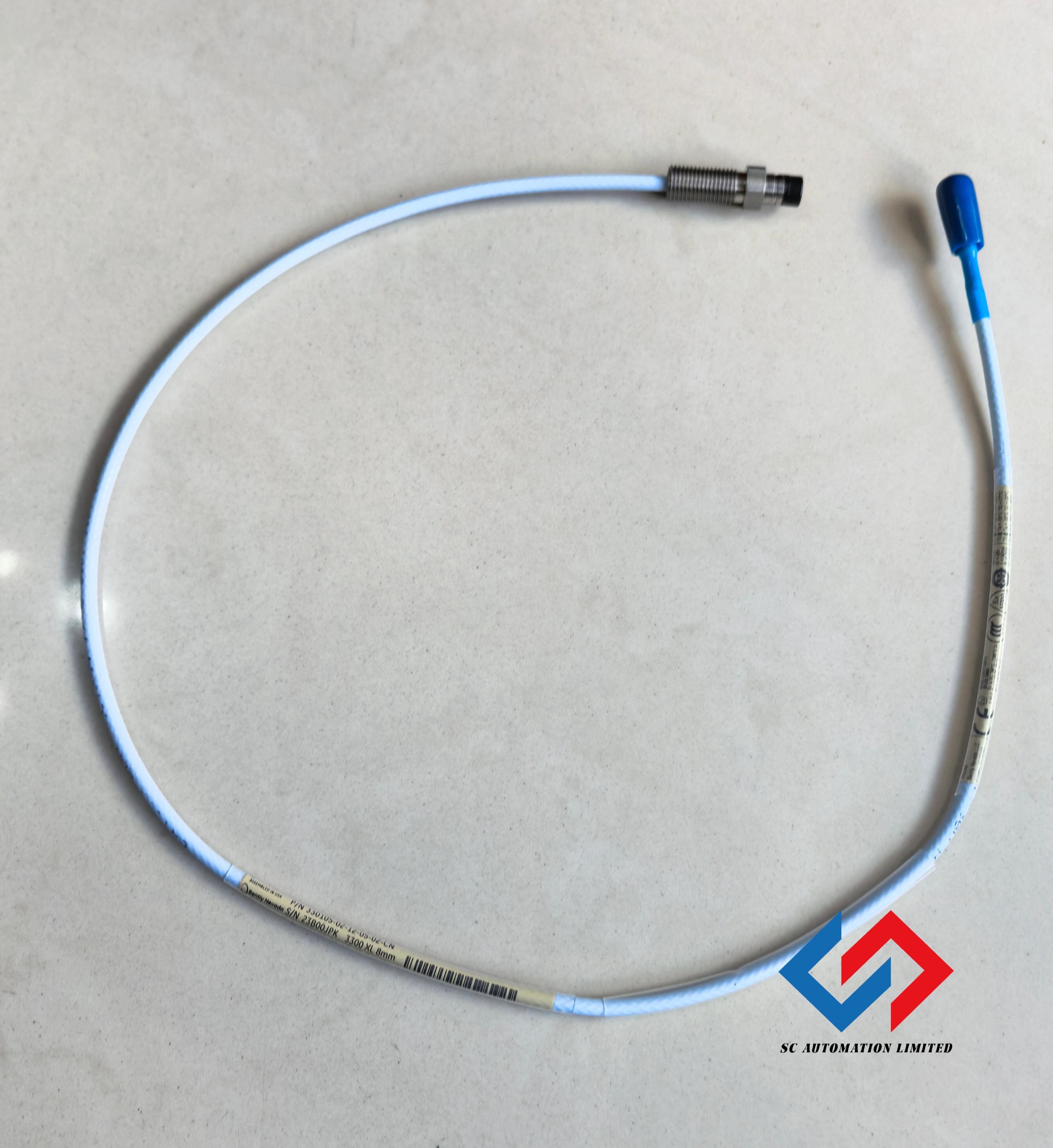

Bently Nevada 3300 XL 8 mm Proximity 330105-02-12-05-02-CN PPS Probe Tip and SST Probe Case for Industrial Applications
Product Specifications
| Attribute |
Value |
| Proximitor Sensor Input |
Accepts one non-contacting 3300-series 5 mm, 3300 XL 8 mm Proximity Probe and Extension Cable. |
| Output Resistance |
50 Ω |
| Probe Tip Material |
Polyphenylene sulfide (PPS) |
| Probe Case Material |
AISI 303 or 304 stainless steel (SST) |
| Connector Material |
Gold-plated brass or gold-plated beryllium copper |
| Weight |
323 g/m |
Product Description
Bently Nevada 3300 XL 8 mm Proximity 330105-02-12-05-02-CN
The 3300 XL 8 mm Proximity Transducer System consists of:
- One 3300 XL 8 mm probe
- One 3300 XL extension cable
- One 3300 XL Proximitor Sensor
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system's primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
Ordering Information
3300 XL 8 mm Reverse Mount Probes
- 330105-02-12-CC-DD-EE 3/8-24 UNF threads
- 330106-05-30-CC-DD-EE M10 x 1 threads
Option Descriptions
C: Total Length Option
- 05 - 0.5 meter (1.6 feet)
- 10 - 1.0 meter (3.3 feet)
- 15 - 1.5 meter (4.9 feet)
- 20 - 2.0 meters (6.6 feet)
- 50 - 5.0 meters (16.4 feet)
- 90 - 9.0 meters (29.5 feet)
D: Connector and Cable-Type Option
- 02 - Miniature ClickLoc coaxial connector
- 12 - Miniature ClickLoc coaxial connector, FluidLoc cable
E: Agency Approval Option
- 00 - Not required
- 05 - CSA, ATEX, IECEx Approvals
