75mA 4 Position Allen Bradley 1734-TOP POINT I/O Terminal Base

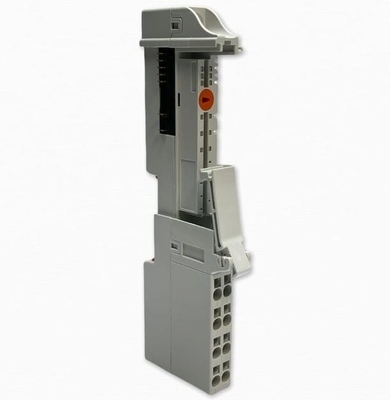

Large Image : 75mA 4 Position Allen Bradley 1734-TOP POINT I/O Terminal Base

Product Details:

Place of Origin:	China
Brand Name:	AB
Certification:	CE
Model Number:	1734-TOP

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	on request
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

75mA 4 Position Allen Bradley 1734-TOP POINT I/O Terminal Base

Description

Keyswitch Position:	4	POINTBus Current:	Max 75 MA
Supply Voltage:	Backplane 5V DC	Supply Voltage Range:	Field Power
Input:	10…28.8V DC (includes 5% AC Ripple), 220 MA, Class 2	Output:	Current 4…20 MA Or 0…20 MA
Highlight:	75mA point io terminal base , 4 point io terminal base , AB1734-TOP

75mA 4 Point AB POINT I O Terminal Base 1734-TOP

Product Specifications

Keyswitch position	4
POINTBus current	max 75 mA
Supply voltage	backplane 5V DC
Supply voltage range	field power
Input	10…28.8V DC (includes 5% AC ripple), 220 mA, Class 2
Output	current 4…20 mA or 0…20 mA

Product Description

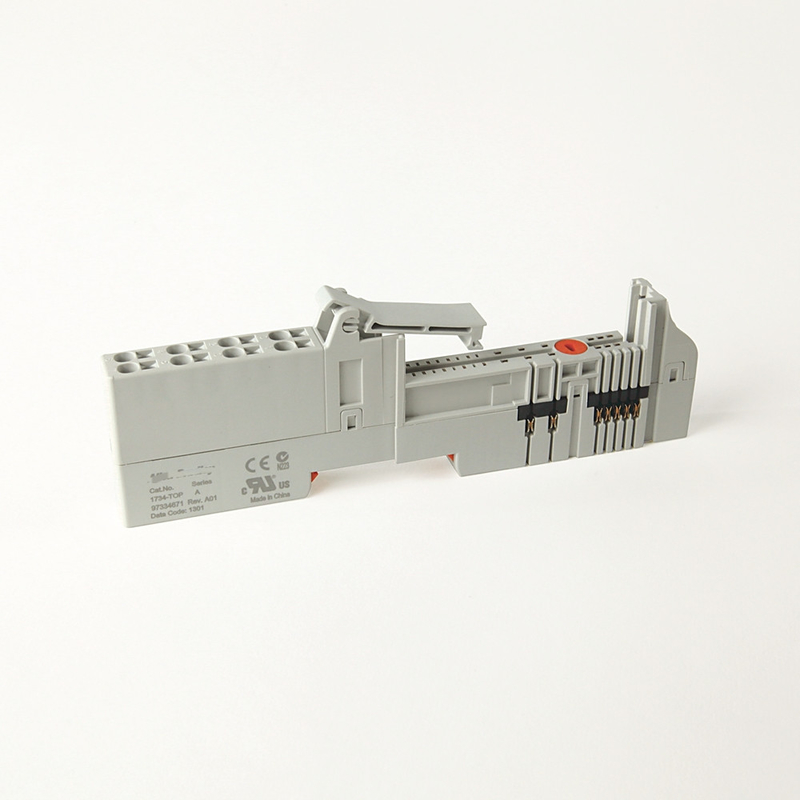

AB POINT I/O Terminal Base 1734-TOP - Terminal Base Assembly, 8 Screw Clamp Connections, 1 Piece Point I/O Mounting Base, with Integrated Terminal Locations, 300 Volt.

POINT I/O is a family of modular I/O products ideal for applications requiring flexibility and low cost of ownership. With one to eight channel density modules, including a self-configuring discrete module, the modularity of POINT I/O minimizes system costs and size. The ability to mix standard and safe I/O provides even greater flexibility and opportunities for standardization, regardless of application requirements. Since it can be used in local and remote I/O, POINT I/O further reduces engineering costs in design, installation and application development.

One-piece Terminal Bases

The POINT I/O one-piece terminal base is a mounting base with an integrated terminal block.

1734 One-piece Terminal Bases

Cat. No.	Description	Terminal Base Screw Torque
1734-TOP	8-terminal screw-clamp terminal base	0.6 Nm (7 lb-in)
1734-TOPS	8-terminal spring-clamp terminal base	0.6 Nm (7 lb-in)
1734-TOP3	12-terminal screw-clamp terminal base	0.6 Nm (7 lb-in)
1734-TOP3S	12-terminal spring-clamp terminal base	0.6 Nm (7 lb-in)

Related Part Numbers

1756-PLS	1756-CN2RXT	1756-PA75-CC
1756-PH75-CC	1756-DHRIOXT	1756-PA75R
