10Mbps 100Mbps 1 Amp AB CLX ENet / IP 100M DLR 1756-EN2TR
Product Specifications
| Attribute |
Value |
| Series |
ControlLogix |
| Backplane Current (5Volts) |
1 amp |
| Ethernet-IP Communication Rate |
10/100 Mbps |
| Backplane Current (24 Volts) |
3 milliamps |
| Integrated Ports |
Two (2) RJ45; One (1) USB 1.1 |
| Power Consumption |
5.1 Watts |
| Current Draw |
1.2 Amp |
| Insulation Voltage |
30 Volts Continuous |
Product Description

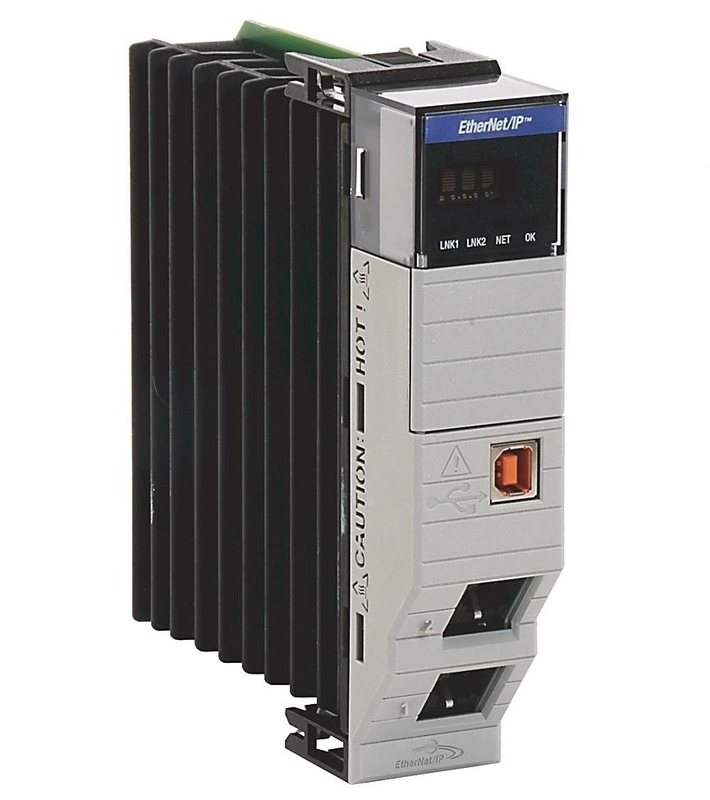

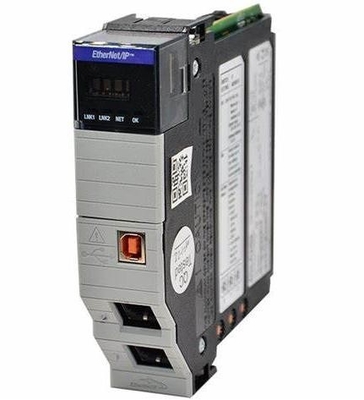

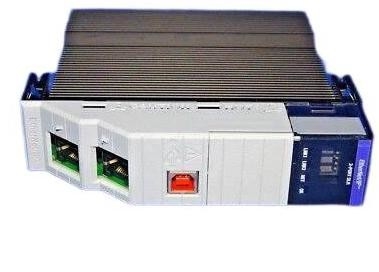

The AB 1756-EN2TR is a part of the ControlLogix Communication Module series. It is an Ethernet/IP (Ethernet Industrial Protocol) dual port interface communication module. It supports general messaging, real-time I/O messaging, and information exchange for applications like Real-Time Control, Time Synchronization, and Motion.
The 1756-EN2TR also meets the CIP safety standard by allowing simultaneous transfer of safety and control data and diagnostics information. It uses advanced communication chips and physical media.
The 1756-EN2TR Module has 10 - 100 Mbps Ethernet/IP communication rates and uses dual copper. It supports 256 Logix and 128 TCP/IP communication connections. It can support a maximum of 8 axes for integrated motion on the Ethernet/IP Network and draws 1 A current at 5.1V DC.
Key features include:
- Maximum power dissipation of 5.1 W and thermal dissipation of 17.4 BTU/hr
- Installable in any slot in the ControlLogix Chassis
- Uses unshielded RJ45, category 5, twisted-pair cable connectors
- Supports explicit protected mode and Electronic keying
- Device Level Ring Network and Parallel Redundancy Protocol Network support
- Does not require scheduling or routing tables
Related Part Numbers
1756-PLS
1756-CN2RXT
1756-PA75-CC
1756-PH75-CC
1756-DHRIOXT
1756-PA75R
1756-PLS
1756-IB16K
1756-PA75R-CC
1756-PLS-CC
1756-IB16DK
1756-PA75RK
1756-PSCA2
1756-IB16IFK
1756-PAR2
1756-PSCA2-CC
1756-IA16K
1756-PAR2K
1756-RIO-CC
1756-IA16IK
1756-PB72
1756SCIF8H
1756-IM16IK
1756-PB72-CC
1756-SYNCH
1756-IB32K
1756-PB75
1756-SYNCH-CC
1756-OB16DK
1756-PB75-CC
1756-TBCH
1756-OB16IEFK
1756-PB75R
1756-TBE
1756-OB16EK
1756-PB75R-CC
1756-TBNH
1756-OA16K
1756-PB75RK
1756-TBS6H
1756-OW16IK
1756-PBR2
1756-TBSH
1756-OB32K
1756-PC75
1756-TC15
1756-OA16IK
1756-PC75-CC
1756-ESMNRMXT
1756-IF8HK
1756-CN2RXT
1756-L61RMEN1
1756-IF8K
1756-DHRIOXT
1756-L61RMCN1
1756-IF8IK
1756-IB16K
1756-L71S
1756-IF16K
1756-IB16DK
1756-SPESMNRMXT
1756-IF16HK
1756-IB16IFK
1756-L72
1756-OF8K
1756-IA16K
Product FAQs
What is this module's power dissipation?
The 1756-EN2TR has a power dissipation of around 5.1 Watts.
What are this module's communication options?
The 1756-EN2TR uses Ethernet/IP for communication.
