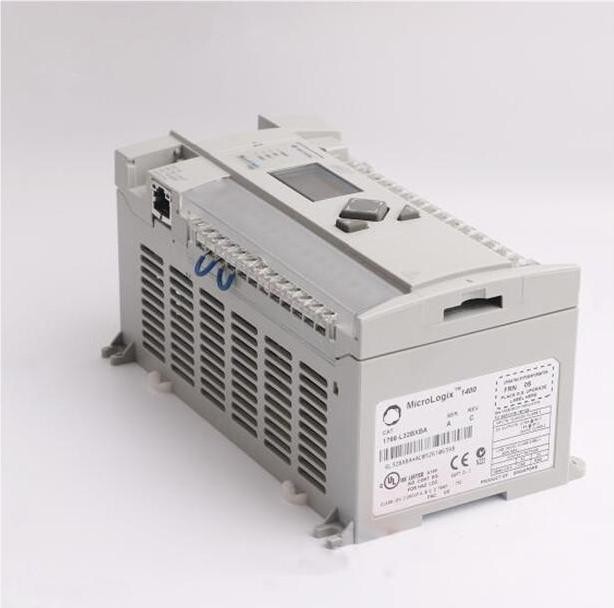

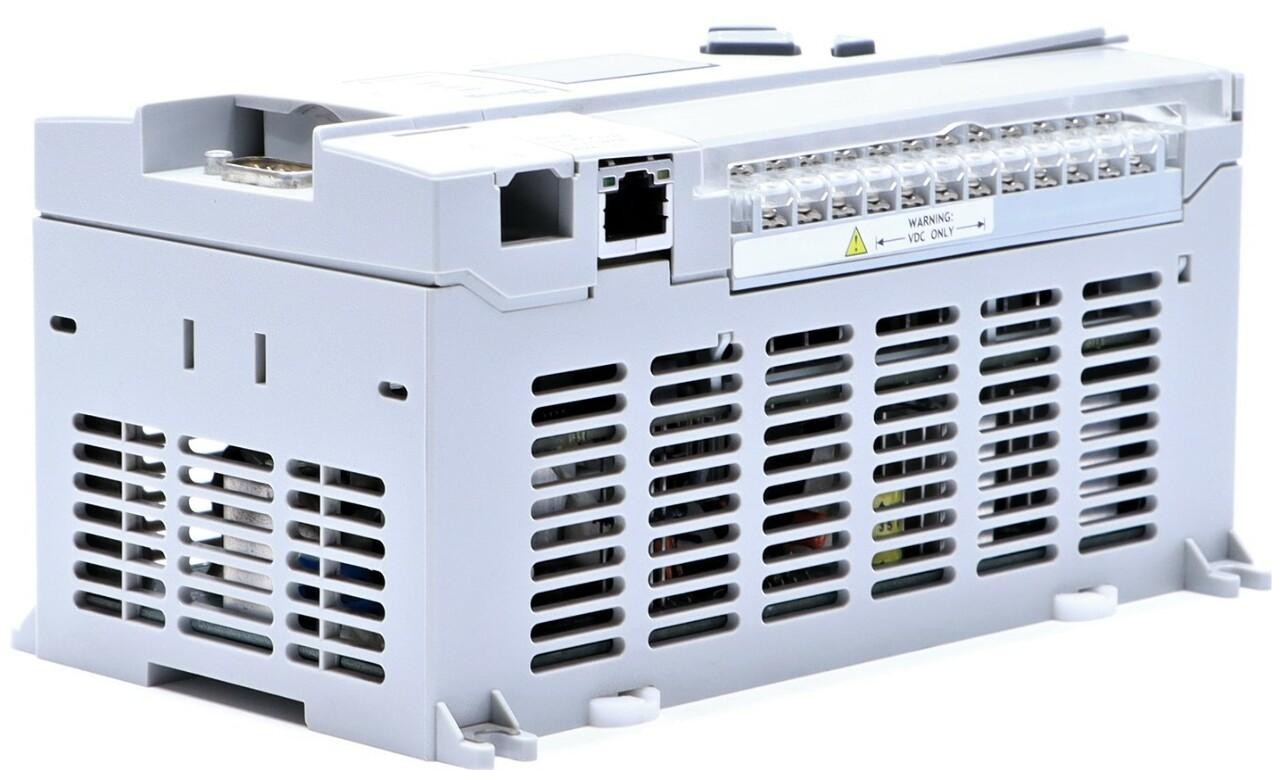

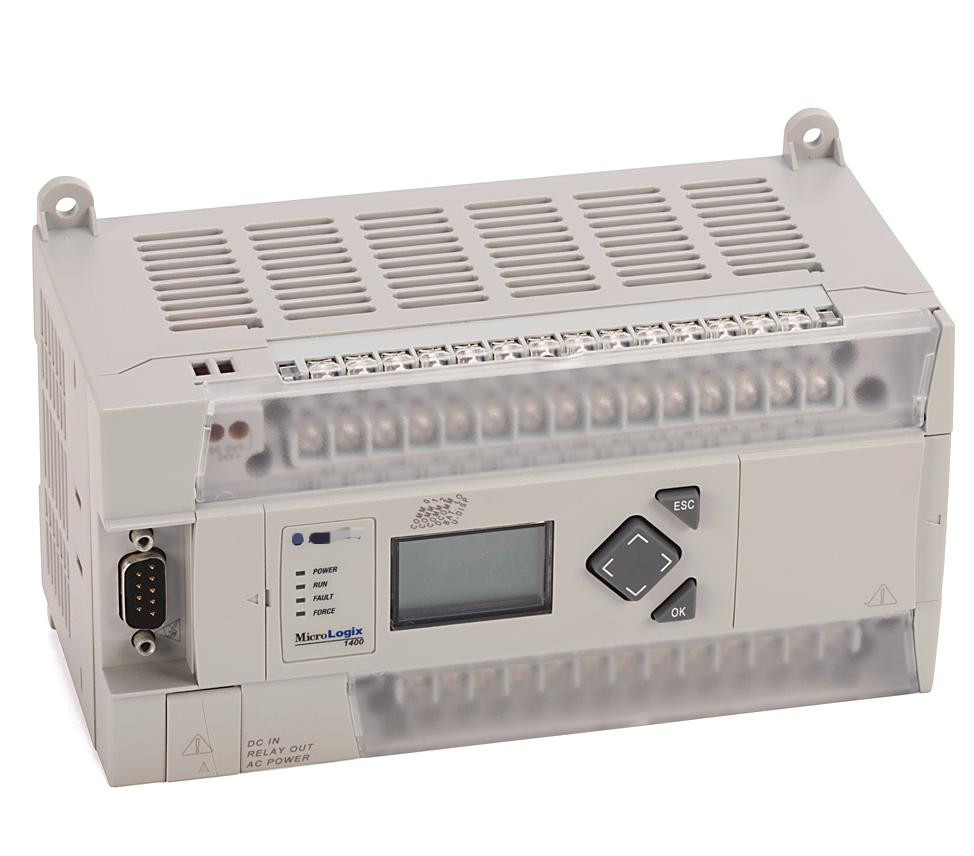

Allen Bradley MicroLogix 1400 32 Point Controller 1766-L32BXBA

Temperature, operating: 0…60 °C (32…140 °F)

Temperature, nonoperating: -40…+85 °C (-40…+185 °F)

Relative humidity: 5…95% noncondensing

Vibration: Operating: 5 g @ 10…500 Hz Relay operating: 2 g

nput Signal Range: -40…100 mV DC for thermocouples 0…325 mV DC for RTDs 0…500 Ω for resistance range

Accuracy Drift with Temperature: Hardware only in mV mode: 0.10% Full Scale mV mode with filtering: 0.05% Full Scale

External DC Supply Current, Nom: 85 mA @ 24V DC

Power Dissipation, Max: 3 W @ 31.2V DC

Resolution of the analogue inputs: 15 Bit

Type of electric connection: Screw connection

Conducted immunity: 10V, 0.15...80 MHz

Operating temperature: -20 °C

Connection Cables: None required

Output Voltage and Current: 5V DC @ 13A, 3.3V DC @ 4A, 1.2V DC @ 1.5A, 24V DC @ 2.8A

Redundant Configuration: False

Protection Type: Ex ec IIC T4 Gc

Series: ControlLogix

Operating Temperature, Series C: -25…+60 °C

Operating Temperature, Series B: 0°C to +60°C

No. of mounting tabs: Six (6)
