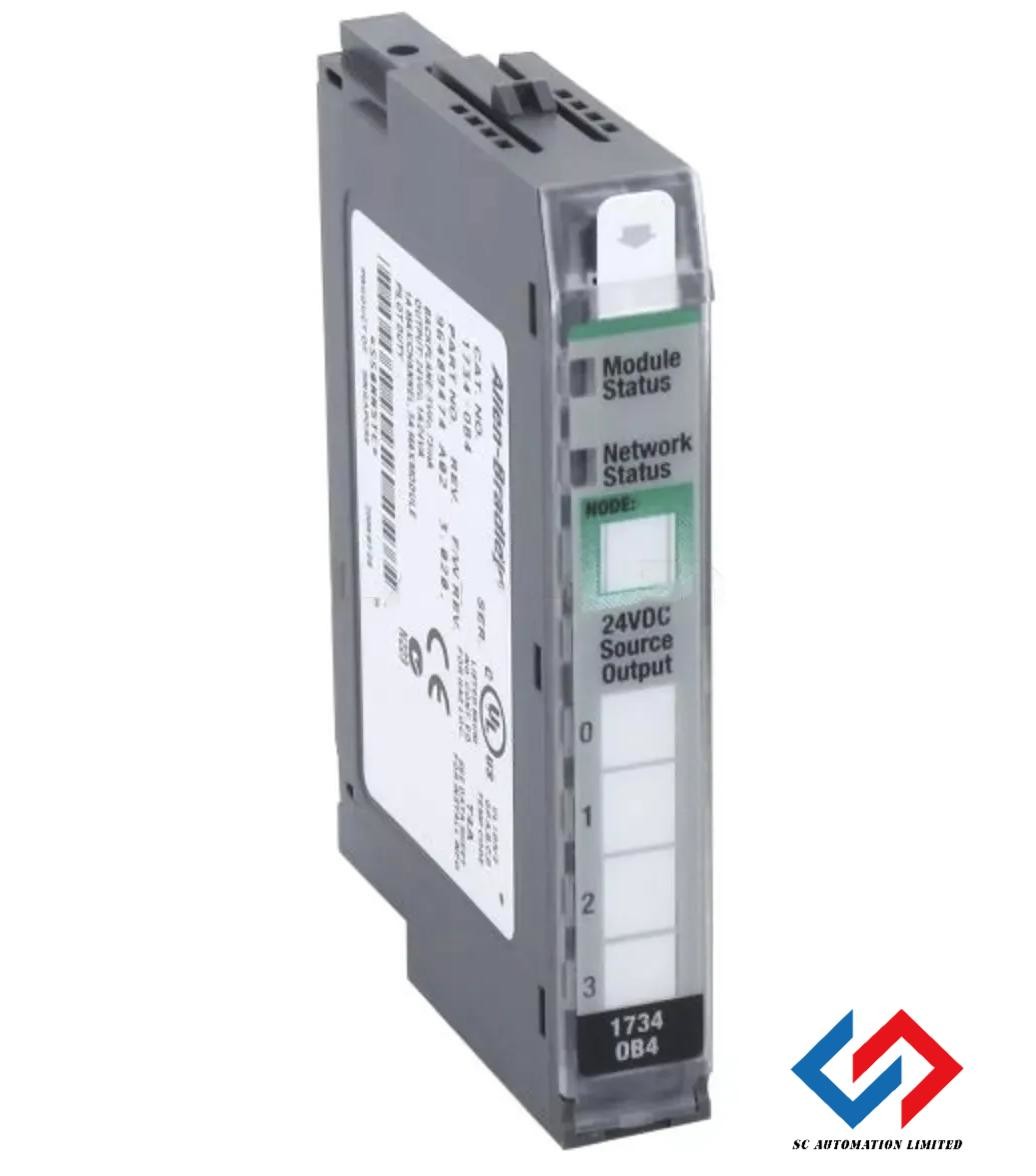

24VDC Allen Bradley 1734-OB4 POINT I/O 4 Point Digital Output Module

24VDC Allen Bradley 1734-OB4 POINT I/O 4 Point Digital Output Module
24VDC Allen Bradley 1734-OB4 POINT I/O 4 Point Digital Output Module 24VDC Allen Bradley 1734-OB4 POINT I/O 4 Point Digital Output Module 24VDC Allen Bradley 1734-OB4 POINT I/O 4 Point Digital Output Module

Large Image :  24VDC Allen Bradley 1734-OB4 POINT I/O 4 Point Digital Output Module

Product Details:
Place of Origin: SINGAPORE
Brand Name: Allen-Bradley
Certification: CE
Model Number: 1734-OB4
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiable
Packaging Details: Original packaging
Delivery Time: 1-2 weeks
Payment Terms: T/T
Supply Ability: 100pcs per month
Contact Now Chat Now

24VDC Allen Bradley 1734-OB4 POINT I/O 4 Point Digital Output Module

Description
On-state Voltage Range, Min: 10V DC On-state Voltage Range, Nom: 24V DC
Indicators: 4 Yellow – Output Status 2 Green/red – Module/network Status Module Location: 1734-TB Or 1734-TBS Wiring Base Assembly
Dimensions (H X W X D), Approx.: 56.0 X 12.0 X 75.5 Mm (2.21 X 0.47 X 2.97 In.) Weight, Approx.: 33.17 G (1.17 Oz)
Highlight:

24VDC Allen Bradley 1734-OB4

,

1734-OB4 Digital Output Module

,

AB Digital Output Module

AB POINT I/O 4 Point Digital Output Module 1734-OB4
Key Specifications
Attribute Value
On-state voltage range, min 10V DC
On-state voltage range, nom 24V DC
Indicators 4 yellow – Output status
2 green/red – Module/network status
Module location 1734-TB or 1734-TBS wiring base assembly
Dimensions (H x W x D), approx. 56.0 x 12.0 x 75.5 mm (2.21 x 0.47 x 2.97 in.)
Weight, approx. 33.17 g (1.17 oz)
Product Description

The Allen-Bradley POINT I/O 4 Point Digital Output Module (1734-OB4) is designed for industrial automation applications. These Series C POINT I/O™ Output modules are compatible with DeviceNet® and PROFIBUS adapters. When using Studio 5000 Logix Designer® application version 20 or higher, they can also be used with ControlNet® and EtherNet/IP™ adapters.

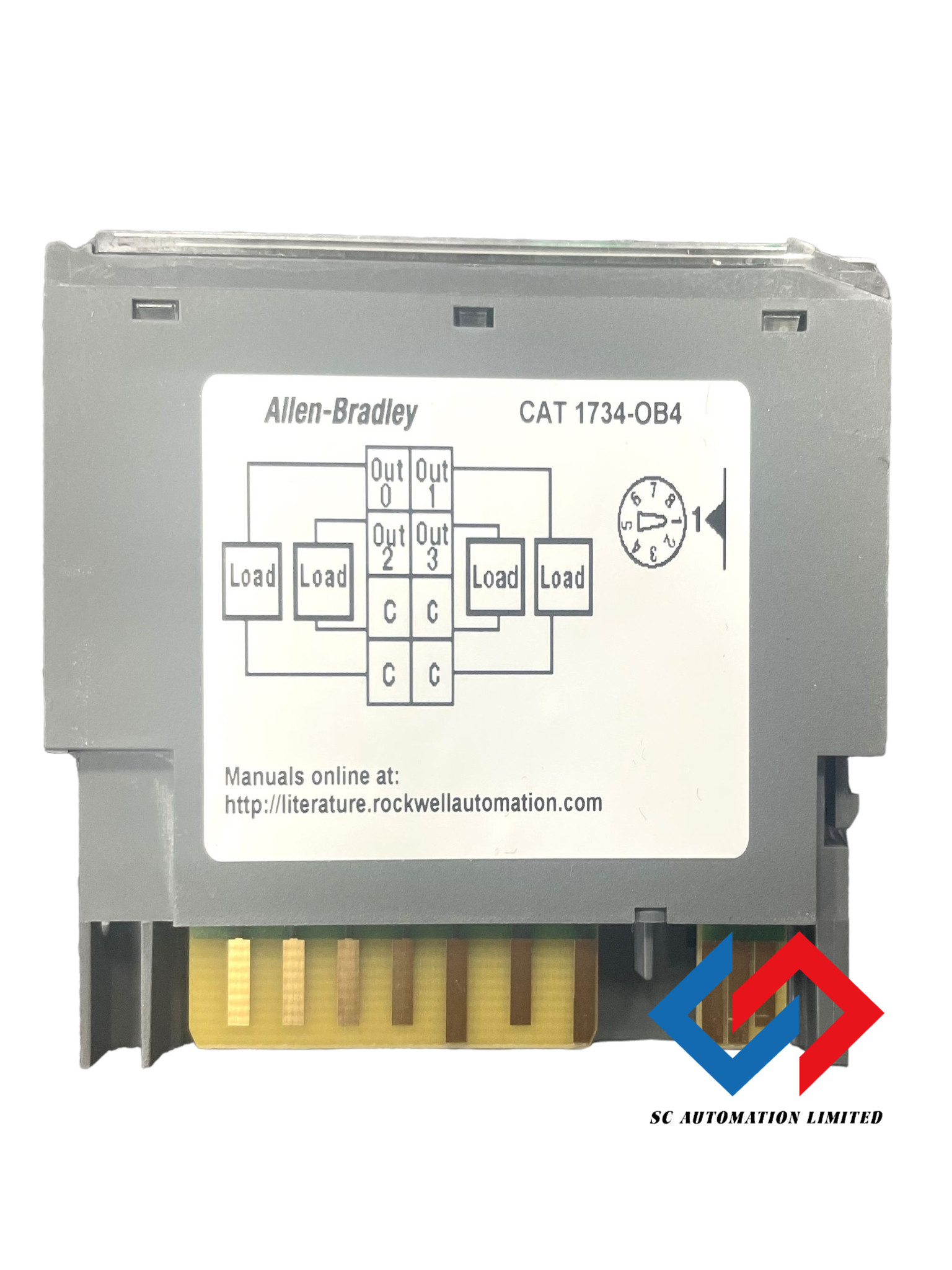

24VDC Allen Bradley 1734-OB4 POINT I/O 4 Point Digital Output Module 0 24VDC Allen Bradley 1734-OB4 POINT I/O 4 Point Digital Output Module 1
Technical Specifications
Attribute 1734-OB2 1734-OB4, 1734-OB4K 1734-OB8, 1734-OB8K
Outputs per module, non-isolated, sourcing 2 (1 group of 2) 4 (1 group of 4) 8 (1 group of 8)
On-state voltage range, min 10V DC
On-state voltage range, nom 24V DC
On-state voltage range, max 28.8V DC
Output current rating 1.0 A per output, 2.0 A max per module 1.0 A per output, not to exceed 3.0 A max per module 1.0 A per output, not to exceed 3.0 A max per module
Off to On delay is the time from a valid output "On" signal to output energization. On to Off delay is the time from a valid output "Off" signal to output de-energization.
General Specifications
Attribute 1734-OB2 1734-OB4, 1734-OB4K 1734-OB8, 1734-OB8K
Indicators 2 yellow - Output status
2 green/red - Module/network status		 4 yellow - Output status
2 green/red - Module/network status		 8 yellow - Output status
2 green/red - Module/network status
Power dissipation, max @ 28.8V DC 0.8 W 1.2 W 2.0 W
Weight, approx. 32.60 g (1.15 oz) 33.17 g (1.17 oz) 35.4 g (1.25 oz)
Use this Conductor Category information for planning conductor routing as described in the appropriate System Level Installation Manual. Also see the Industrial Automation Wiring and Grounding Guidelines, publication 1770-4.1, for more information.

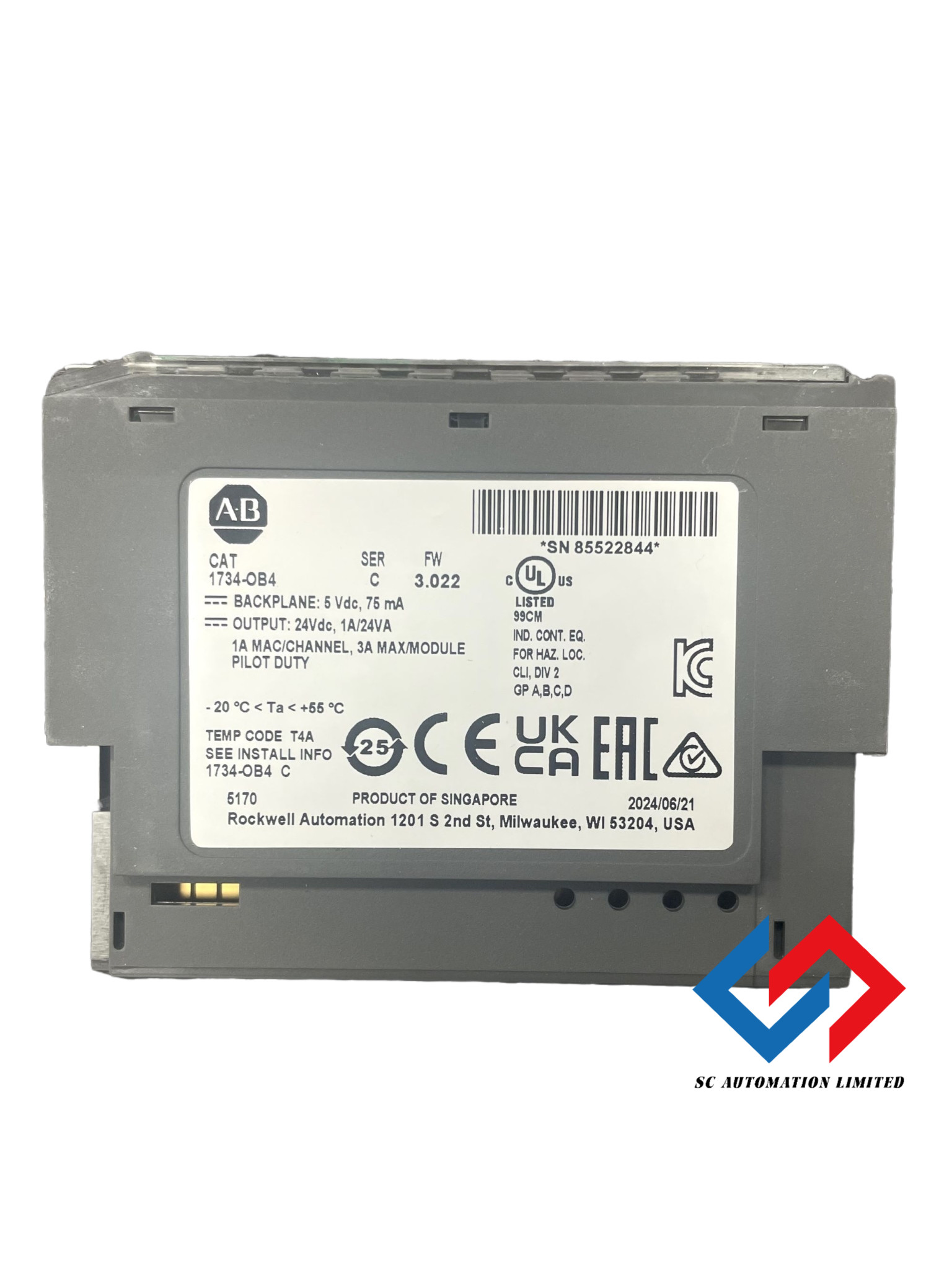

24VDC Allen Bradley 1734-OB4 POINT I/O 4 Point Digital Output Module 2
