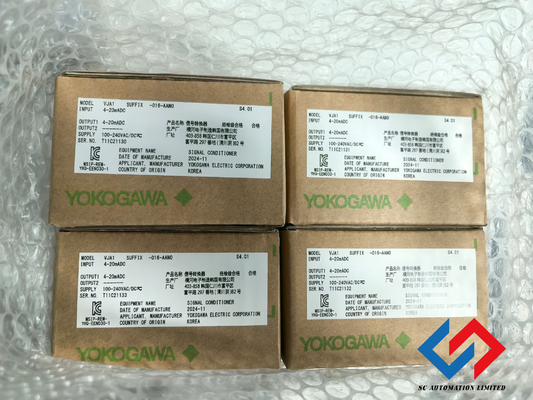

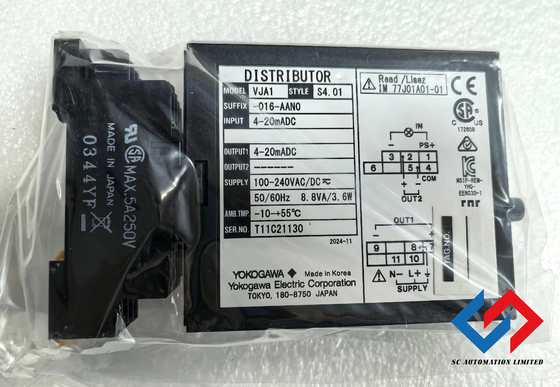

Yokogawa VJA1-016-AAN0 Single Output Distributor with 100-240 V AC/DC Power Supply
Product Specifications
| Output configuration |
Single |
| Power supply |
100-240 V AC/DC (Operating range: 85-264 V) |
| Input signal |
4 to 20 mA DC |
| Output-1 signal |
4 to 20 mA DC |
| Output-2 signal |
None |
| Weight |
Approx. 120 g (main unit), approx. 51 g (socket) |
Product Description

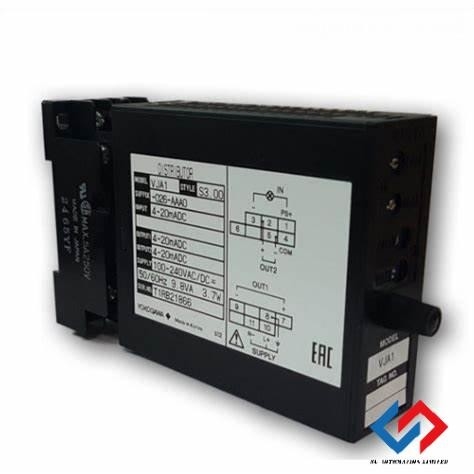

The VJA1 is a compact, plug-in type distributor that is used in combination with a two-wire type transmitter to convert the transmitter's 4 to 20 mA DC signals into isolated DC current or DC voltage signals.
Model and Suffix Codes
Input/Output Specifications
Input signal: 4 to 20 mA DC signal from two-wire type transmitter
Input resistance: 250 Ω
Transmitter power supply: 25.25±0.25 V DC (provided with a current limiter to keep the current between 25 and 35 mA)
Allowable conductor resistance (RL): Up to [(20 - transmitter's minimum operating voltage) V/0.02 A] Ω
Maximum allowable input current: 40 mA DC
Output signal: DC voltage or DC current signal
Allowable Load Resistance
| Output-1 Range |
Allowable Load Resistance |
Output-1 Range |
Allowable Load Resistance |
| 4 to 20 mA DC |
750 Ω maximum |
0 to 10 mV DC |
250 kΩ minimum |
| 2 to 10 mA DC |
1500 Ω maximum |
0 to 100 mV DC |
250 kΩ minimum |
| 1 to 5 mA DC |
3000 Ω maximum |
0 to 1 V DC |
2 kΩ minimum |
| 0 to 20 mA DC |
750 Ω maximum |
0 to 10 V DC |
10 kΩ minimum |
| 0 to 16 mA DC |
900 Ω maximum |
0 to 5 V DC |
2 kΩ minimum |
| 0 to 10 mA DC |
1500 Ω maximum |
1 to 5 V DC |
2 kΩ minimum |
| 0 to 1 mA DC |
15 kΩ maximum |
-10 to +10 V DC |
10 kΩ minimum |
