ABB TZIDC Digital Valve Positioner 4-20mA V18345-1010421001

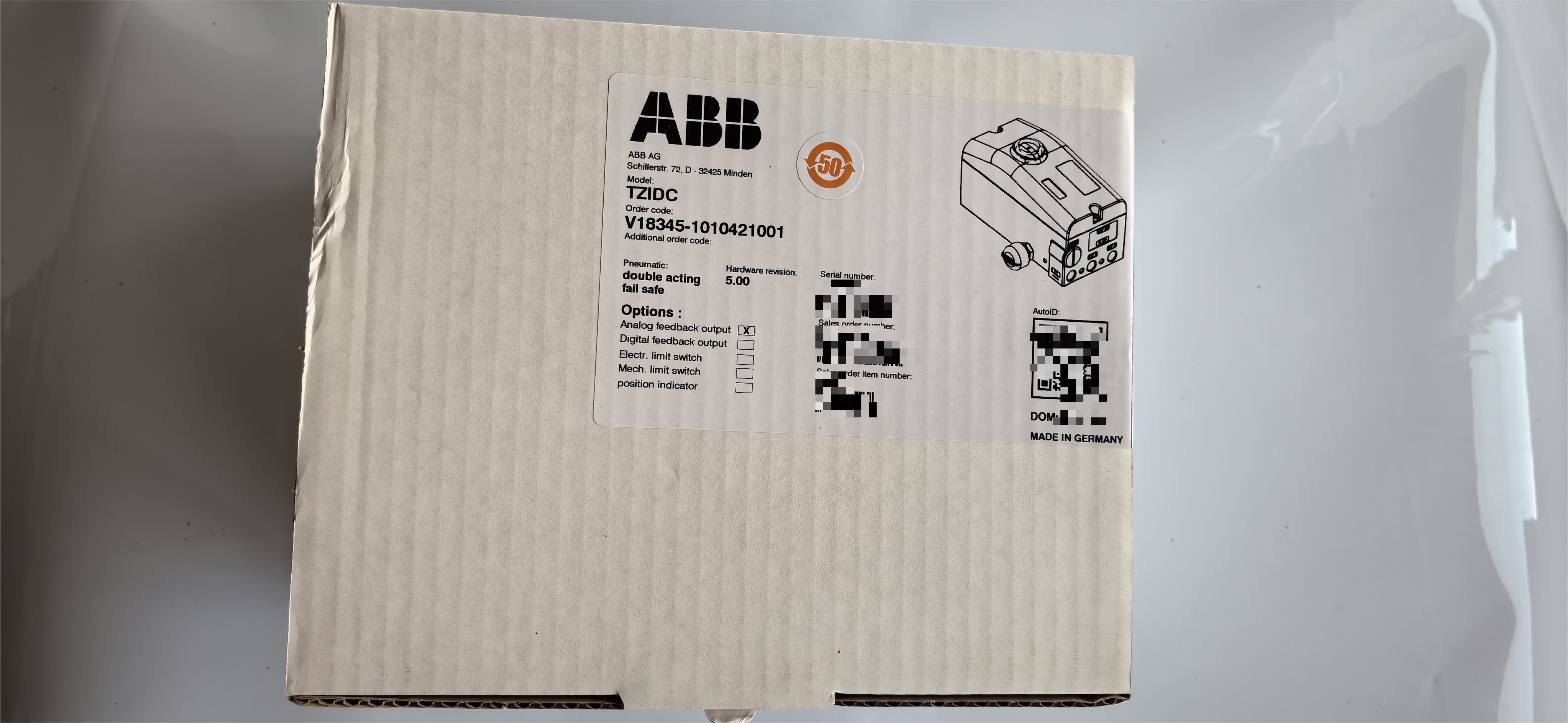

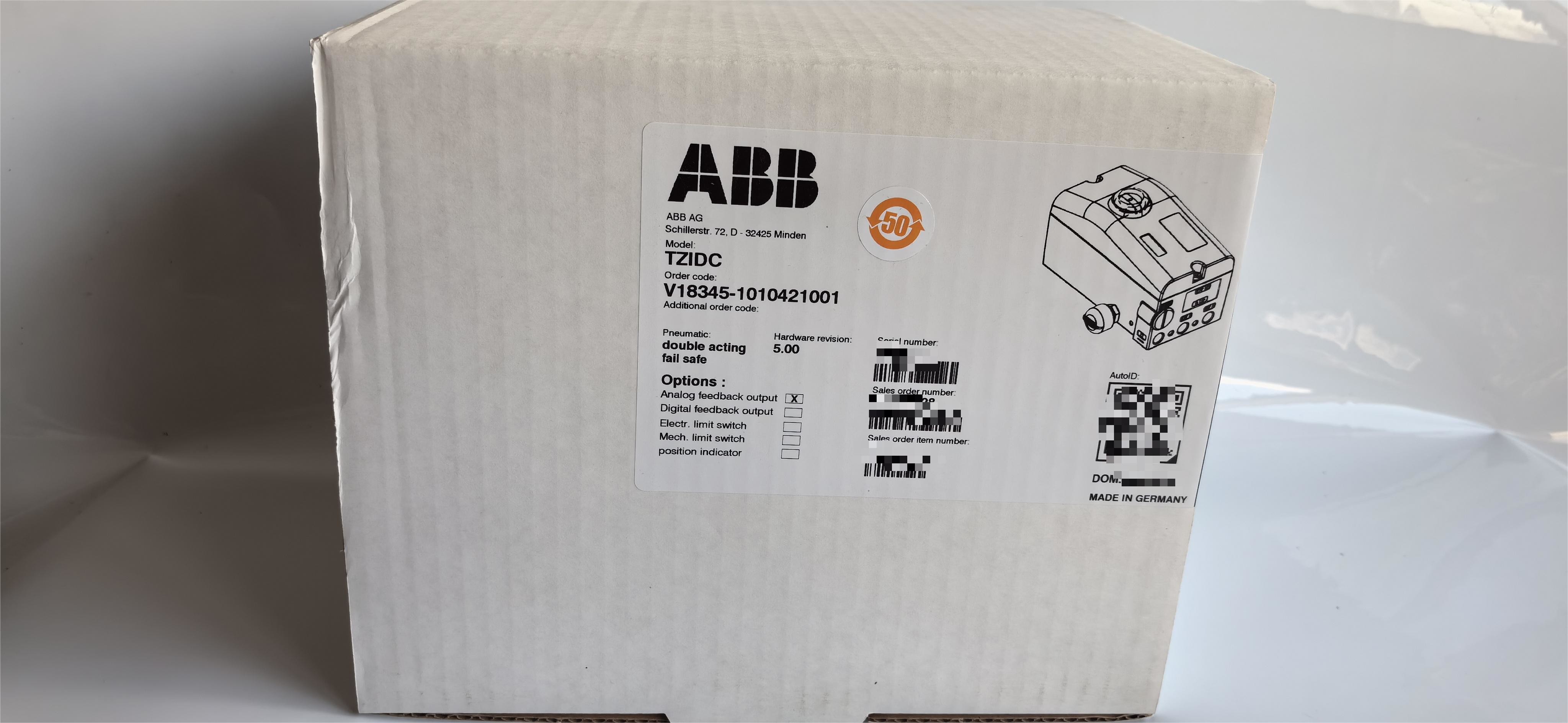

Large Image : ABB TZIDC Digital Valve Positioner 4-20mA V18345-1010421001

Product Details:

Place of Origin:	Germany
Brand Name:	ABB
Certification:	CE
Model Number:	V18345-1010421001

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	1 Week
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

ABB TZIDC Digital Valve Positioner 4-20mA V18345-1010421001

Description

Model Number:	V18345-1010421001	Output Signal:	4 ... 20 MA
Digital Input:	0 ... 5 V DC Logical Switching State "0" ； 11 ... 30 V DC Logical Switching State "1"	Ambient Temperature:	-40 … 85 °C (-40 ... 185 °F)
Material/Protections:	Aluminum, Protection Class IP 65 / NEMA 4X	Pneumatic Connections:	Threads G 1/4 Or 1/4-18 NPT
Weight:	1.7 Kg (3.75 Lb)	Mounting Orientation:	Any Orientation Allowed
Highlight:	Digital ABB TZID Valve Positioner , ABB TZID Valve Positioner 20mA , V18345-1010421001

Digital ABB TZIDC Valve Positioner 20mA V18345-1010421001

Product Specifications

Attribute	Value
Model Number	V18345-1010421001
Output signal	4 ... 20 mA
Digital input	0 ... 5 V DC logical switching state "0"； 11 ... 30 V DC logical switching state "1"
Ambient temperature	-40 … 85 °C (-40 ... 185 °F)
Material/Protections	Aluminum, protection class IP 65 / NEMA 4X
Pneumatic connections	Threads G 1/4 or 1/4-18 NPT
Weight	1.7 kg (3.75 lb)
Mounting orientation	any orientation allowed

Product Overview

The TZIDC is an electronically configurable positioner with communication capabilities designed for mounting to pneumatic linear or rotary actuators. It features a small and compact design, a modular construction, and an excellent cost-performance ratio. Fully automatic determination of the control parameters and adaptation to the final control element yield considerable time savings and an optimal control behavior.

Modular Design

The TZIDC basic model can be enhanced at any time by retrofitting optional equipment. Option modules for analog or digital position feedback or a shutdown-module can be installed. Additionally, a mechanical position indicator, proximity switches or 24 V microswitches are available for indicating the position independently of the mother board function.

Related Part Numbers

V18345-1010221001

V18345-1010421001

V18345-1010551001

V18345-1011121001

V18345-1017121001

V18345-1027120001

V18345-1027420001

V18345-1010120001

V18345-1010520001

V18345-2010420001

V18345-1010121001

V18345-1010221001

V18345-1010420001

V18345-1010421001

V18345-1010521001

V18345-1021221001

V18345-1020521001

V18345-1011220001

V18345-1027121001

V18345-1027120001

V18345-2010521001

V18345-1027420001
