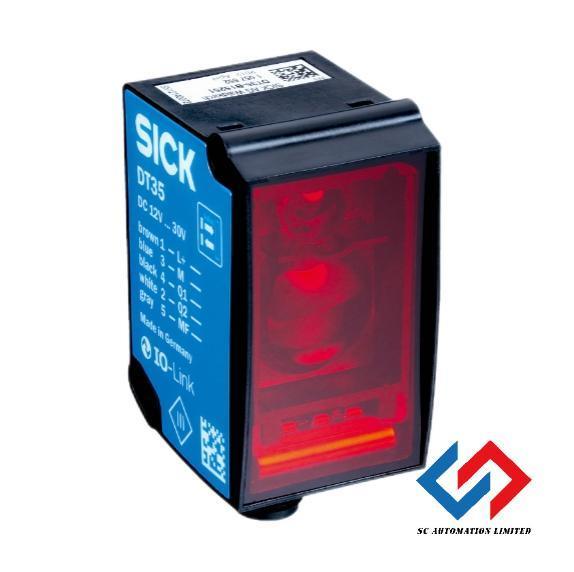

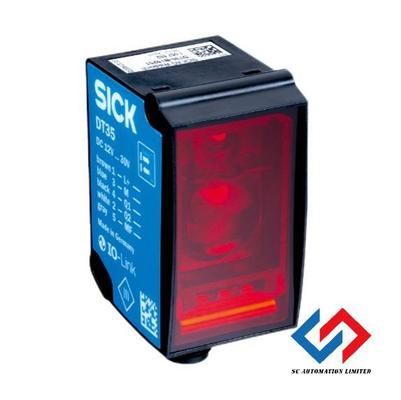

SICK Dt35 B15251 Distance Sensor Time Of Flight Sensor For Natural Objects

Large Image : SICK Dt35 B15251 Distance Sensor Time Of Flight Sensor For Natural Objects

Product Details:

Place of Origin:	DE
Brand Name:	SICK
Certification:	CE
Model Number:	DT35-B15251

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	Original packaging
Delivery Time:	1 week
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

SICK Dt35 B15251 Distance Sensor Time Of Flight Sensor For Natural Objects

Description

Target:	Natural Objects	Resolution:	0.1 Mm
Typ. Light Spot Size (distance):	15 Mm X 15 Mm (at 2 M)	Dimensions (W X H X D):	32 Mm X 58.67 Mm X 42.7 Mm
Housing Material:	Plastic (ABS/PC)	Weight:	65 G
Highlight:	DT35-B15251 Time of Flight Sensor , dt35 b15251 distance sensor , sick dt35 b15251

SICK TIME-OF-FLIGHT SENSORS DT35-B15251 | Dx35

Product Attributes

Attribute	Value
Target	Natural objects
Resolution	0.1 mm
Typ. light spot size (distance)	15 mm x 15 mm (at 2 m)
Dimensions (W x H x D)	32 mm x 58.67 mm x 42.7 mm
Housing material	Plastic (ABS/PC)
Weight	65 g

Product Description

The Dx35 family of distance sensors, based on HDDM™ technology, combines maximum reliability, measuring capabilities, flexibility and the perfect price-performance ratio in a very compact housing.

Depending on the application, sub-product families are available for distance measurement on natural objects (DT35 and DS35) or on reflective tape (DL35 and DR35). The sub-product families also come with different interfaces. In addition to the IO-Link function, which all the devices have, the product family also offers sensors with analog and switching output (DT and DL) or the option of two switching outputs (DS and DR).

Its final distinguishing feature when selecting the right sensor for the application is the light sender: infrared or red light in laser class 1 or 2.

Technical Data Overview

Related Models

Type	Part no.	Type	Part no.
DT35-B15251	1057652	DS35-B15221	1057655
DT35-B15251-KFJDHHFPDKK7382FJS7U	1139908	DT35-B15851	1057653
DS35-B15821	1057656	DT35-B15551	1057651
DT35-B15551S04	1068098	DS35-B15521	1057654
DL35-B15852	1057658	DR35-B15822	1057660
DL35-B15552	1057657	DR35-B15522	1057659
