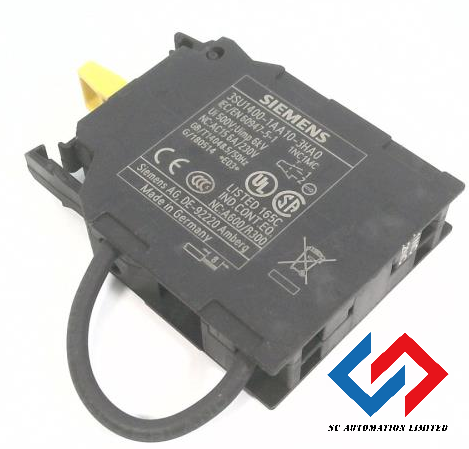

3SU1400-1AA10-3HA0 | Contact module

Basic Information

Place of Origin:	DE
Brand Name:	SIEMENS
Certification:	CE
Model Number:	3SU1400-1AA10-3HA0
Document:	3SU14001AA103HA0_datasheet_...1).pdf

Minimum Order Quantity:	1pc
Price:	Negotiable
Packaging Details:	Original packaging
Delivery Time:	1-2 weeks
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

Product Brand Name:

Product Brand Name

Product Designation:

Contact Module

Product Type Designation:

3SU1

Socket Design:

Other

Net Weight:

0,017 Kg

Packaging Dimensions (L X W X H):

104,00 X 83,00 X 15,00 Mm

Highlight:

Simatic PLC contact module

3SU1400 contact module

PLC contact module with warranty

3SU1400-1AA10-3HA0 | Contact module

Genuine SIRIUS ACT series pushbutton actuator — red illuminated flush button with bright metal ring, 22 mm round mounting cut-out. Designed for industrial control panels where visibility and durability matter: IP66 / IP67 / IP69K rated, vibration-resistant, chemical- and high-pressure-washdown proof. Compatible with the full SIRIUS ACT modular system — pair with any 3SU1xxx contact block, LED module, or holder to build the exact configuration you need.

Techinical date

Parameter	3SU1400-1AA10-3HA0
Brand
Series	SIRIUS ACT (3SU1)
Product type	Contact module / auxiliary contact block
Contact config	1 NC (normally closed)
Special function	Installation / mounting monitoring
Terminal type	Spring-loaded (push-in / spring-clamp)
Mounting	Front-plate mounting
Rated insulation voltage Ui	500 V AC/DC
Operating voltage	5 … 500 V AC/DC
Thermal current Ith	10 A
AC-15 @ 230 V	4 A
DC-13 @ 24 V	3 A
Contact material	Silver alloy
Positive opening	Yes (NC contacts positively driven)
Protection class	IP40 enclosure / IP20 terminal
Mechanical life	10,000,000 operations
Electrical endurance	10,000,000 operations
Max operating frequency	3,600 / h
Surge voltage resistance	6 kV
Ambient operating temp.	-25 … +70 °C
Storage temp.	-40 … +80 °C
Vibration / shock	IEC 60068-2-6 / IEC 60068-2-27, EN 61373
Dimensions (H×W)	36 × 9.8 mm
Net weight	≈ 17 g
Country of origin	Germany
Status	Active (not discontinued)
Compliance	RoHS, REACH, IEC 60947-5-1
