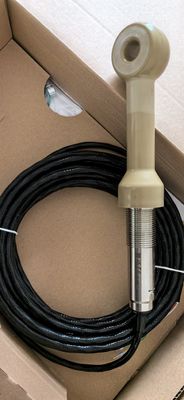

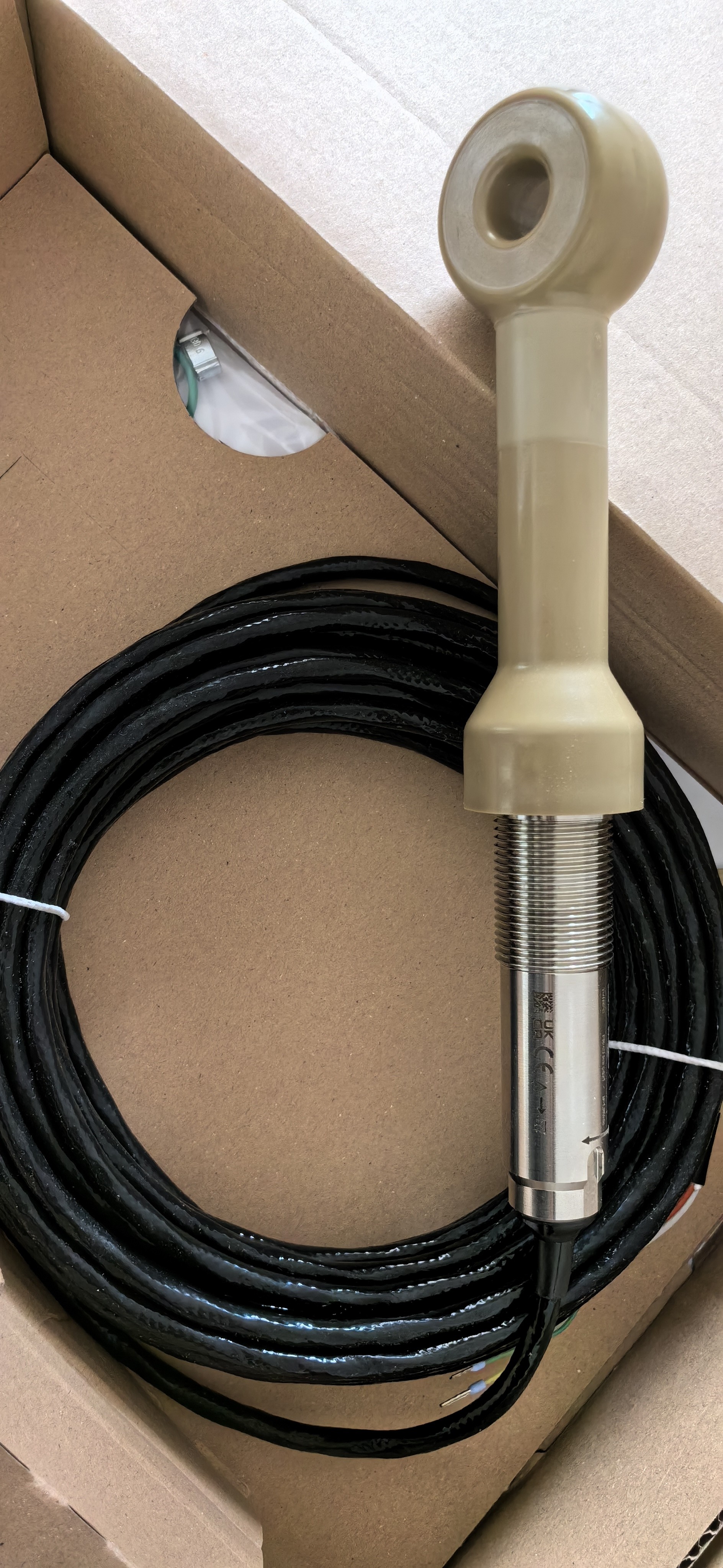

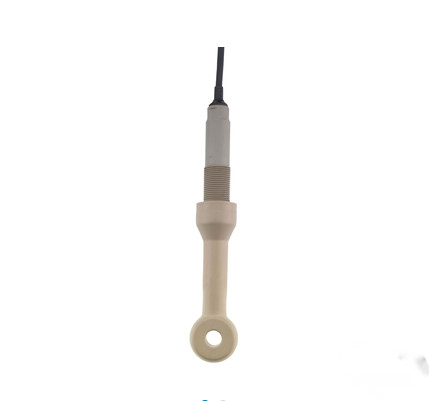

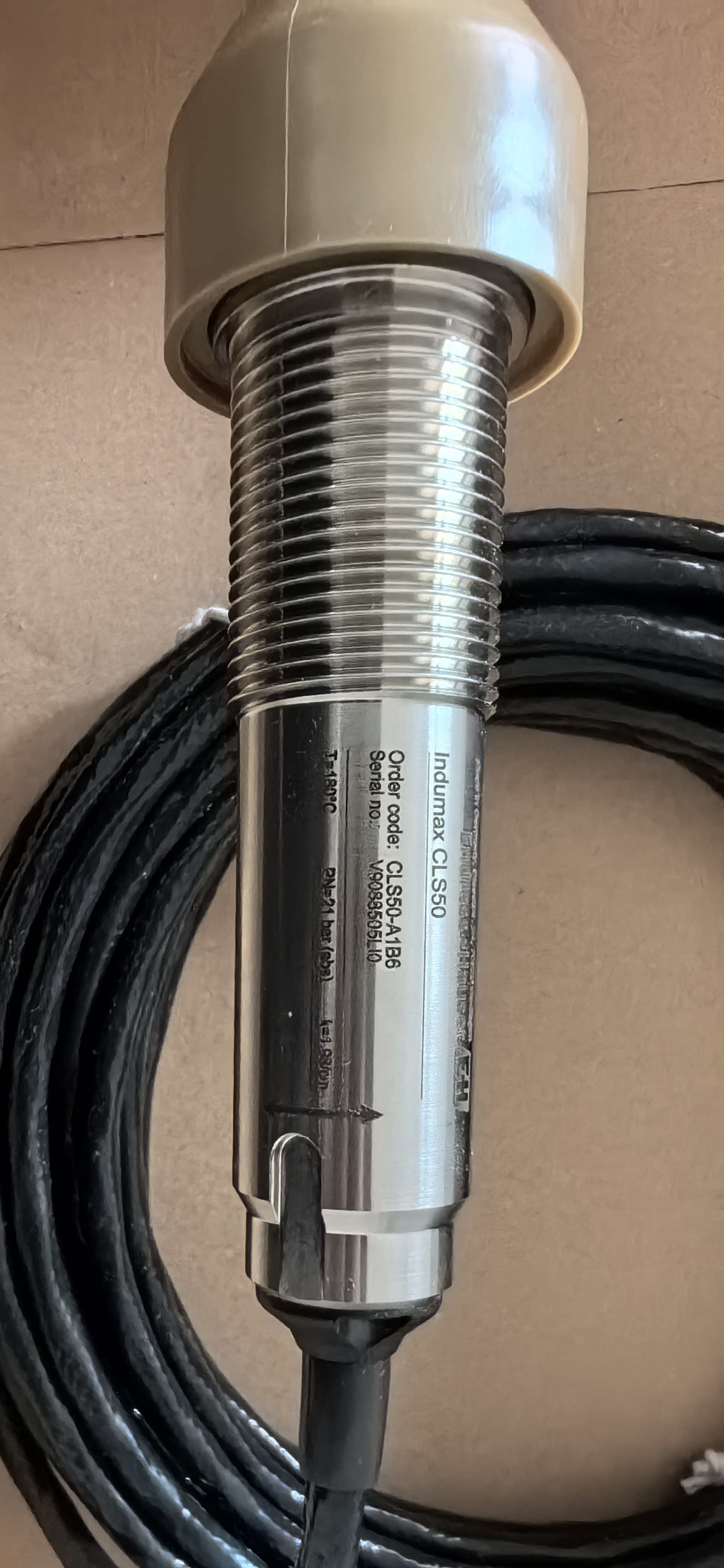

Endress Hauser Indumax CLS50 Analog Conductivity Sensor with PEEK Seal

Endress Hauser Indumax CLS50 Analog Conductivity Sensor with PEEK Seal
Endress Hauser Indumax CLS50 Analog Conductivity Sensor with PEEK Seal Endress Hauser Indumax CLS50 Analog Conductivity Sensor with PEEK Seal Endress Hauser Indumax CLS50 Analog Conductivity Sensor with PEEK Seal

Büyük resim :  Endress Hauser Indumax CLS50 Analog Conductivity Sensor with PEEK Seal

Ürün ayrıntıları:
Menşe yeri: Almanya
Marka adı: Endress+Hauser
Sertifika: CE
Model numarası: CLS50-16D6/0 CLS50-A1B6
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 adet
Fiyat: Pazarlık edilebilir
Ambalaj bilgileri: Standart karton paketleme
Teslim süresi: 12-14 hafta
Ödeme koşulları: T/T
Yetenek temini: Ayda 100 adet
İletişim Şimdi sohbet et.

Endress Hauser Indumax CLS50 Analog Conductivity Sensor with PEEK Seal

Açıklama
Onay:: Tehlikeli olmayan alan + UKCA işareti Proses bağlantısı:: Konu G 3/4
Sensör-; Mühür-;Adaptör: PEEK; Viton; GÖZ ATIN Kablo Bağlantısı:: 10m sabit kablo, maks. 180oC
Brüt ağırlık:: 1.616 Kilogram Menşei ülke:: DE
Vurgulamak:

CLS50 Analog conductivity sensor

,

Endress Hauser Analog conductivity sensor

Endress Hauser Analog Conductivity Sensor Indumax CLS50
Product Specifications
Attribute Value
Approval: Non-hazardous area + UKCA marking
Process Connection: Thread G 3/4
Sensor/Seal/Adapter PEEK; Viton; PEEK
Cable Connection: 10m fixed cable, max. 180°C
Gross weight: 1.616 Kilogram
Country of origin: DE
Product Overview
The Indumax CLS50 is an inductive conductivity sensor designed for standard, hazardous, and high-temperature applications. Its robust construction using PFA and PEEK materials ensures high chemical resistance and long-term durability. The sensor remains reliable even in harsh conditions, with a wide operating temperature range of -20 to +180°C.
Key Applications
  • Chemical Industry:
    • Concentration measurement of acids and bases
    • Quality monitoring in tanks and pipes
  • Food & Beverage:
    • Phase separation in pipe systems
  • Wastewater Treatment:
    • Inlet monitoring
Technical Specifications
Measuring principle: Inductive
Measurement range: 2µS/cm - 2000 mS/cm
Design: No direct media contact due to resistant sensor coating
Material: PEEK or PFA
Dimensions: Electrode: 47mm OD, 15mm ID
Process temperature: Max. 180°C (PEEK), 125°C (PFA)
Process pressure: Max. 20 bar (PEEK), 16 bar (PFA)
Temperature sensor: Integrated Pt100
Ex certification: ATEX, FM, CSA, NEPSI
Connection: NPT1", DN50, ANSI, JIS with fixed cable
Ingress protection: IP67
Endress Hauser Indumax CLS50 Analog Conductivity Sensor with PEEK Seal 0
