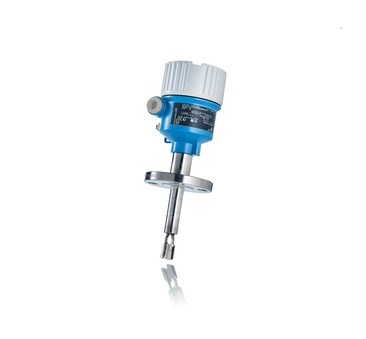

Endress Hauser Liquiphant FTL51B Level Switch Alu Housing M20 Plastic

Endress Hauser Liquiphant FTL51B Level Switch Alu Housing M20 Plastic
Endress Hauser Liquiphant FTL51B Level Switch Alu Housing M20 Plastic Endress Hauser Liquiphant FTL51B Level Switch Alu Housing M20 Plastic Endress Hauser Liquiphant FTL51B Level Switch Alu Housing M20 Plastic

Büyük resim :  Endress Hauser Liquiphant FTL51B Level Switch Alu Housing M20 Plastic

Ürün ayrıntıları:
Menşe yeri: Almanya
Marka adı: Endress+Hauser
Sertifika: CE
Model numarası: FTL51B-AAA4ABAAA1AJI1VCJ+LA(FTL51B-FAA2/0)
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 adet
Fiyat: Pazarlık edilebilir
Ambalaj bilgileri: Standart karton paketleme
Teslim süresi: 12-14 hafta
Ödeme koşulları: T/T
Yetenek temini: Ayda 100 adet
İletişim Şimdi sohbet et.

Endress Hauser Liquiphant FTL51B Level Switch Alu Housing M20 Plastic

Açıklama
Onay: Tehlikeli olmayan alan Çıkış: FEL64, DPDT rölesi 19-253VAC/19-55VDC kontak 253V/6A + test butonu
Display; Görüntülemek; Operation Operasyon: olmadan; anahtar Konut; Malzeme: Tek bölme; Alu, kaplamalı
Elektrik bağlantısı: Rakor M20, plastik, IP66/68 NEMA Tip 4X/6P Uygulama: Proses maksimum 150oC/302oF, maksimum 64bar
Vurgulamak:

Single Compartment Liquiphant FTL51B

,

Alu Housing Liquiphant FTL51B

,

Endress Hauser Liquiphant FTL51B

Endress Hauser Liquiphant FTL51B Plastic Electrical Connection Single Compartment Alu Housing
Product Specifications
Attribute Value
Approval Non-hazardous area
Output FEL64, relay DPDT 19-253VAC/19-55VDC contact 253V/6A + test button
Display; Operation W/o; switch
Housing; Material Single compartment; Alu, coated
Electrical Connection Gland M20, plastic, IP66/68 NEMA Type 4X/6P
Application Process max 150°C/302°F, max 64bar
Product Description
The Liquiphant FTL51B is specialized for the process industry and developed for direct use in SIL2 and SIL3 applications. Conduct periodic proof tests according to SIL or WHG mobile with an intuitive wizard, receiving automated documentation upon completion.
The Liquiphant measures reliably and is not affected by changing media properties, flow, turbulences, gas bubbles, foam, vibrations, or build-up. This easy-to-use device features digital connectivity for real-time data access.
Key Features
  • Point level switch with extension tube for all liquids
  • Process connections: Threads, flanges, and hygienic process connection (Tri-Clamp)
  • Temperature range: -50 to +150°C (-58 to +302°F)
  • Pressure range: -1 to +100bar (-14.5 to +1450psi)
  • Sensor material: 316L, Alloy
  • International explosion protection certificates, overfill protection WHG, SIL, marine approvals
Technical Specifications
Measuring principle Vibration Liquids
Characteristic / Application Compact vibronic device with optional pipe extension up to 6 m (19.7 ft)
Modular housing concept
Wide range of certificates
Specialities Heartbeat Technology
Bluetooth® Operation and maintenance SmartBlue App
LED Module
RFID TAG for easy identification
Second line of defense
Ambient temperature down to -50°C (-60°C optional)
Temperature spacer for high process temperature
Plug and play functionalities
Supply / Communication 19...253V AC / 2-wire
10...55V / DC-PNP 3-wire
9...20V DC with relay DPDT
19...253V AC or 19...55V DC with relay DPDT
2-wire NAMUR
2-wire PFM
4-20mA HART
Ambient temperature -60°C...+70°C (-51°F...+158°F)
Process temperature -50°C...+150°C (-58°F...+302°F)
Process pressure / max. overpressure limit Vacuum...100 bar (Vacuum...1450 psi)
Min. density of medium 0.5 g/cm³ (0.4 g/cm³ optional)
Main wetted parts 316L, Alloy
Process connection Threads: G3/4A, G1A, R3/4", R1, NPT3/4, NPT1
Flanges: DN25...DN100, ASME 1"...4", JIS 25A...100A
Process connection hygienic Tri-Clamp ISO2852
Sensor length Up to 6 m (19.7 ft)
Communication 2-wire direct load, HART, DC-PNP 3-wire, Relays, NAMUR, PFM, Bluetooth® wireless technology
Certificates / Approvals ATEX, IEC Ex, CSA, NEPSI, KC, JPN Ex, INMETRO, UK Ex
Additional Certifications Overfill protection WHG
SIL2/SIL3 according to IEC 61508
Design approvals EN 10204-3.1
NACE MR0175, MR0103
ASME B31.3 Process Piping
AD2000
CRN
AD 2000
Marine approval ABS/ LR/ BV/ DNV
Options Heavy duty stainless steel housing
Components FTL325P Interface PFM
FTL325N Interface NAMUR

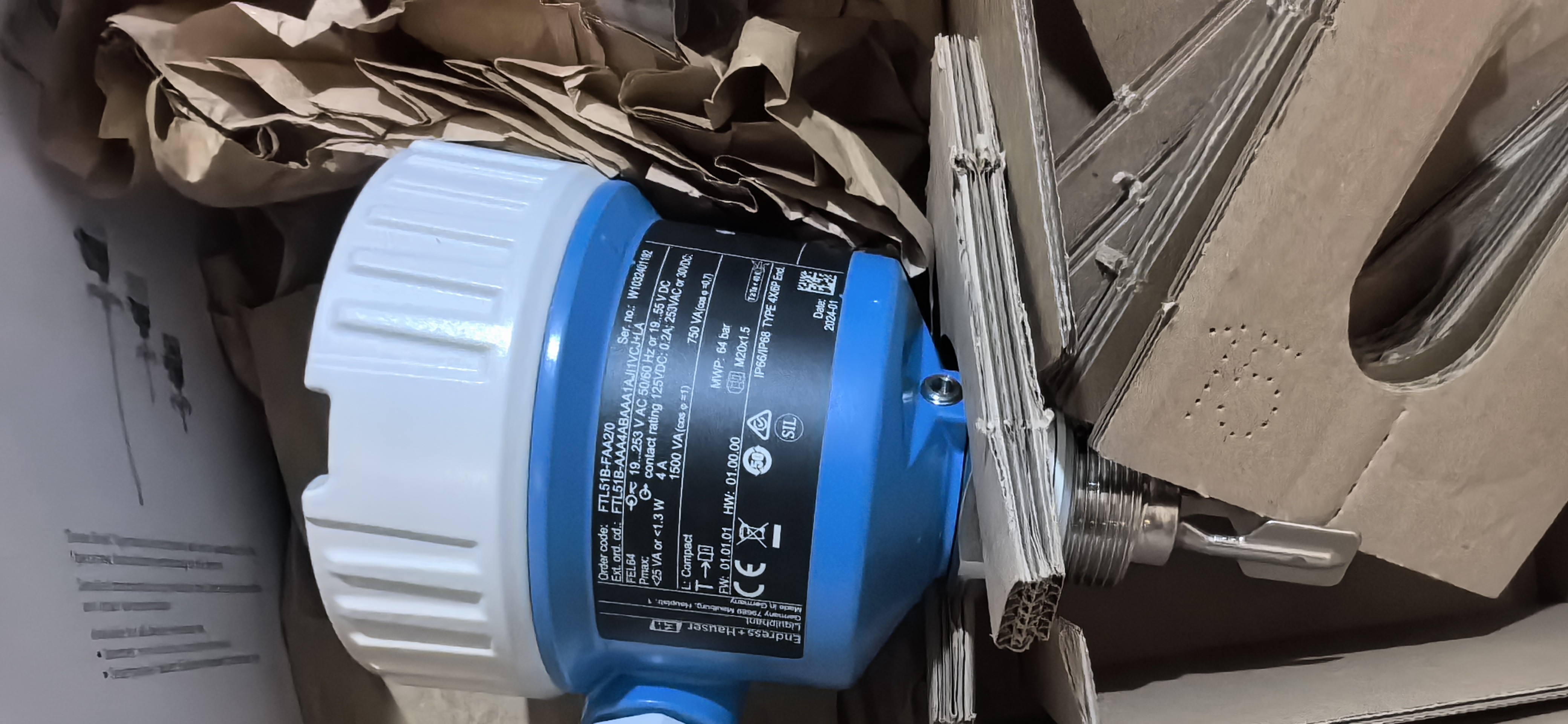

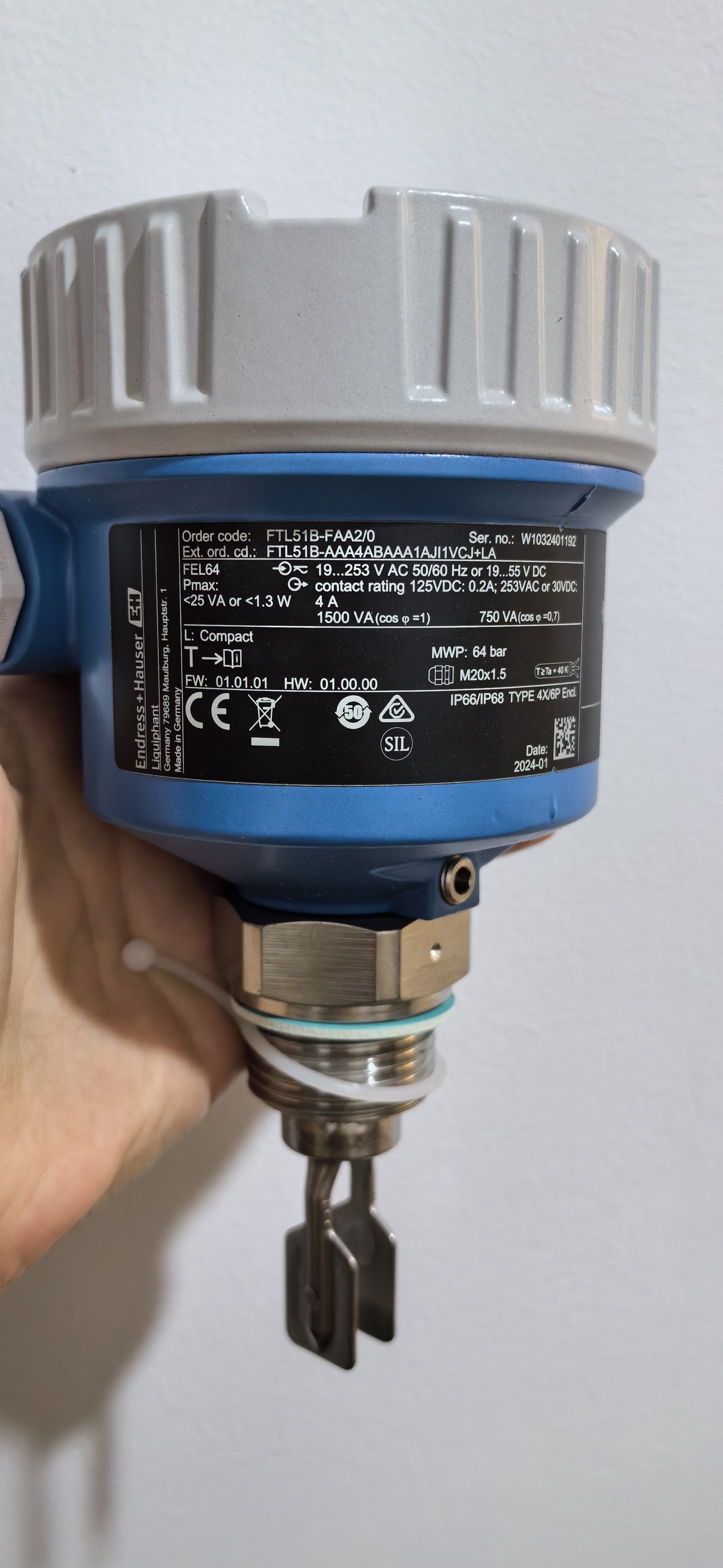

Endress Hauser Liquiphant FTL51B Level Switch Alu Housing M20 Plastic 0
Endress Hauser Liquiphant FTL51B Level Switch Alu Housing M20 Plastic 1
