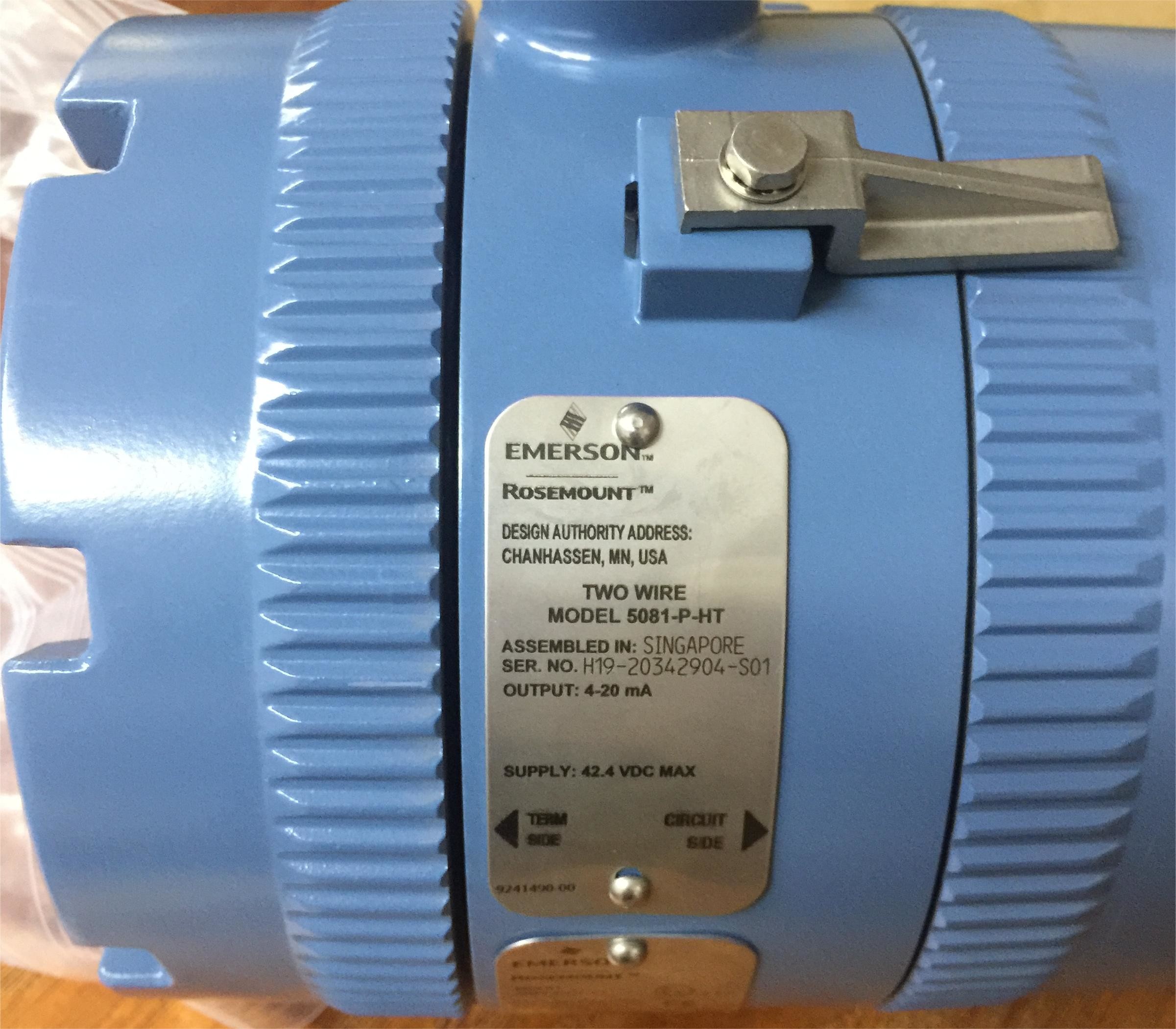

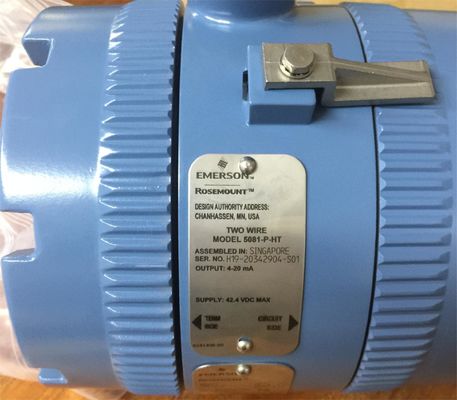

Rosemount 5081-P Two Wire PH ORP Transmitter With HART Protocol

Rosemount 5081-P Two Wire PH ORP Transmitter With HART Protocol
Rosemount 5081-P Two Wire PH ORP Transmitter With HART Protocol Rosemount 5081-P Two Wire PH ORP Transmitter With HART Protocol Rosemount 5081-P Two Wire PH ORP Transmitter With HART Protocol

Gambar besar :  Rosemount 5081-P Two Wire PH ORP Transmitter With HART Protocol

Detail produk:
Tempat asal: Singapura
Nama merek: ROSEMOUNT
Sertifikasi: CE
Nomor model: 5081-P-HT-20-73
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 buah
Harga: Bisa dinegosiasikan

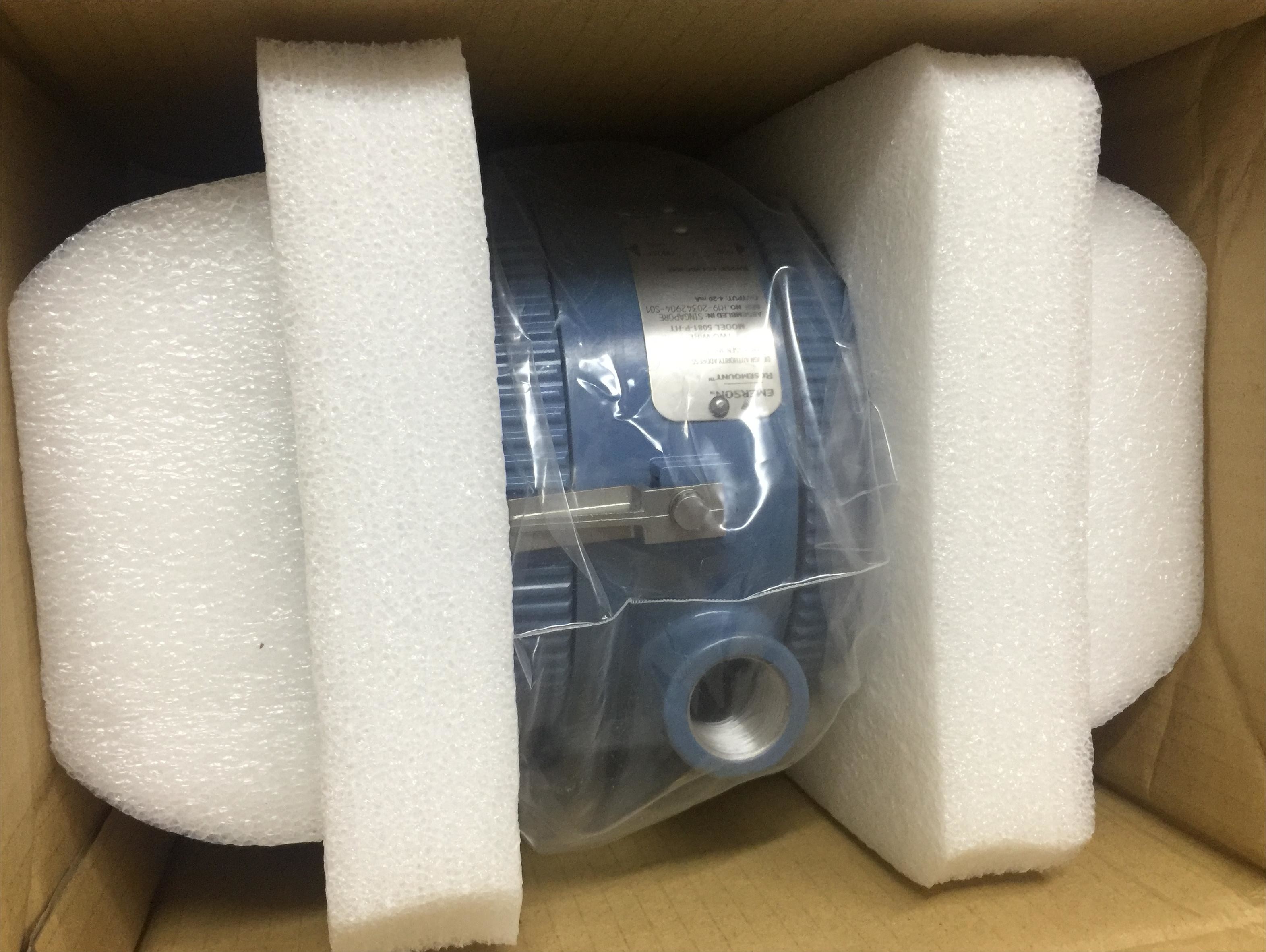

Kemasan rincian: Pengepakan karton standar
Waktu pengiriman: berdasarkan permintaan
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 100 pcs per bulan
Kontak Chat Sekarang

Rosemount 5081-P Two Wire PH ORP Transmitter With HART Protocol

Deskripsi
Perumahan: Aluminium cor dengan lapisan epoksi. Ketik 4X (IP65). Segel penutup cincin-O neoprena. Ukuran: 160,5 mm x 175,3 mm x 161,3 mm (6,3 inci x 6,9 inci x 6,4 inci) Lihat gambar
Bukaan Saluran:: ¾-masuk. FNPT Suhu Sekitar: -4 hingga 149°F (-20 hingga 65°C)
Suhu Penyimpanan: -22 hingga 176°F (-30 hingga 80°C) Kelembaban relatif: 0 hingga 95% (non-kondensasi)
Berat/Berat Pengiriman: 10 pon/10 pon (4,5/5,0 kg) Menampilkan: LCD dua baris
Menyoroti:

Rosemount 5081-P pH ORP Transmitter

,

Two Wire pH ORP Transmitter

,

HART Protocol pH ORP Transmitter

1/4 FNPT Rosemount 5081-P Two Wire PH ORP Transmitter 5081-P-HT-20-73
Product Attributes
Housing Cast aluminum with epoxy coating. Type 4X (IP65). Neoprene O-ring cover seals.
Dimensions 160.5 mm x 175.3 mm x 161.3 mm (6.3 in. x 6.9 in. x 6.4 in.) See drawing
Conduit Openings ¾-in. FNPT
Ambient Temperature -4 to 149°F (-20 to 65°C)
Storage Temperature -22 to 176°F (-30 to 80°C)
Relative Humidity 0 to 95% (non-condensing)
Weight/Shipping weight 10 lb/10 lb (4.5/5.0 kg)
Display Two-line LCD
Product Description
The Rosemount Model 5081-P Two-Wire pH/ORP Transmitter (5081-P-HT-20-73) is designed for measuring pH or ORP in various process liquids. Compatible with most Rosemount Analytical sensors, this transmitter features a rugged, weatherproof enclosure with epoxy-painted aluminum construction that meets Type 4X and IP65 standards, along with explosion-proof certification.

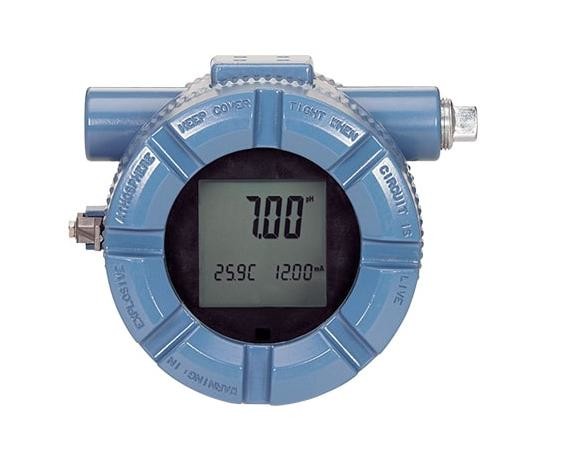

The unit includes a two-line seven-segment display with 0.8-inch (20 mm) high numerals for the main measurement and 0.3-inch (7 mm) digits for secondary measurements (temperature and pH when measuring free chlorine). Available with HART (model option -HT) or Foundation Fieldbus (model option -FF) digital communication protocols, the transmitter supports AMS (Asset Management Solutions) for remote setup, configuration, process monitoring, and troubleshooting.
Replacement Parts for Model 5081-P pH/ORP Transmitter
PN Description Shipping weight
23992-02 For Model 5081-P-HT -- PCB stack consisting of the CPU, communication, and analog boards; display board is not included; CPU, communication, and analog boards are factory-calibrated as a unit and cannot be ordered separately 1 lb/0.5 kg
23992-03 For Model 5081-P-F -- PCB stack consisting of the CPU, communication, and analog boards; display board is not included; CPU, communication, and analog boards are factory-calibrated as a unit and cannot be ordered separately 1 lb/0.5 kg
23652-01 LCD display PCB 1 lb/0.5 kg
33337-02 Terminal block 1 lb/0.5 kg
23593-01 Enclosure cover, front with glass window 3 lb/1.5 kg
33360-00 Enclosure, center housing 4 lb/1.5 kg
33362-00 Enclosure cover, rear 3 lb/1.0 kg
9550187 O-ring (2-252), one, front and rear covers each require an O-ring 1 lb/0.5 kg
Screw, 8-32 x 0.5 inch, for attaching terminal block to center housing
Screw, 8-32 x 1.75 inch, for attaching circuit board stack to center housing
33342-00 Cover lock 1 lb/0.5 kg
33343-00 Locking bracket nut 1 lb/0.5 kg
Screw, 10-24 x 0.38 inch, for attaching cover lock and locking bracket nut to center housing
Rosemount 5081-P Two Wire PH ORP Transmitter With HART Protocol 0
