P+F KFD0-CS-Ex2.50P SIL 2 SC 3 Analog Repeater 5-35V DC

چت IM آنلاین در حال حاضر

P+F KFD0-CS-Ex2.50P SIL 2 SC 3 Analog Repeater 5-35V DC

P+F KFD0-CS-Ex2.50P SIL 2 SC 3 Analog Repeater 5-35V DC
P+F KFD0-CS-Ex2.50P SIL 2 SC 3 Analog Repeater 5-35V DC P+F KFD0-CS-Ex2.50P SIL 2 SC 3 Analog Repeater 5-35V DC P+F KFD0-CS-Ex2.50P SIL 2 SC 3 Analog Repeater 5-35V DC P+F KFD0-CS-Ex2.50P SIL 2 SC 3 Analog Repeater 5-35V DC

تصویر بزرگ :  P+F KFD0-CS-Ex2.50P SIL 2 SC 3 Analog Repeater 5-35V DC

جزئیات محصول:
محل منبع: اندونزی
نام تجاری: P+F
گواهی: CE
Model Number: Repeater KFD0-CS-Ex2.50P
پرداخت:
مقدار حداقل تعداد سفارش: 1 پی سی
قیمت: قابل مذاکره
جزئیات بسته بندی: بسته بندی کارتن استاندارد
زمان تحویل: 12-16 هفته
شرایط پرداخت: T/T
قابلیت ارائه: 100 قطعه در هر ماه
مخاطب حالا صحبت کن

P+F KFD0-CS-Ex2.50P SIL 2 SC 3 Analog Repeater 5-35V DC

شرح
نوع سیگنال: ورودی آنالوگ/خرید آنالوگ سطح یکپارچگی ایمنی (SIL): SIL 2
Systematic capability (SC): SC 3 ولتاژ نامی: 5 ... 35 V DC , Loop powered
فعلی: 4 ... 20 میلی آمپر ابعاد: 20 × 107 × 115 میلی متر (0.8 × 4.2 × 4.5 اینچ) (W x H x D) نوع بدنه B1
برجسته کردن:

P+F Repeater,P+F Repeater KFD0-CS-Ex2.50P,KFD0-CS-Ex2.50P

,

P+F Repeater KFD0-CS-Ex2.50P

,

KFD0-CS-Ex2.50P

P+F Repeater KFD0-CS-Ex2.50P with SC 3 Systematic Capability 5 ... 35 V DC
Key Specifications
Signal type Analog input/analog output
Safety Integrity Level (SIL) SIL 2
Systematic capability (SC) SC 3
Rated voltage 5 ... 35 V DC, loop powered
Current 4 ... 20 mA
Dimensions 20 x 107 x 115 mm (0.8 x 4.2 x 4.5 inch) (W x H x D), housing type B1
Product Description

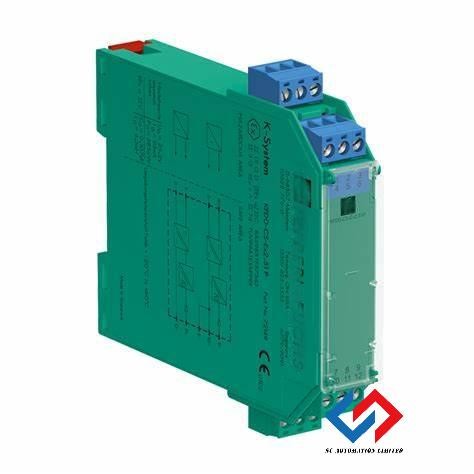

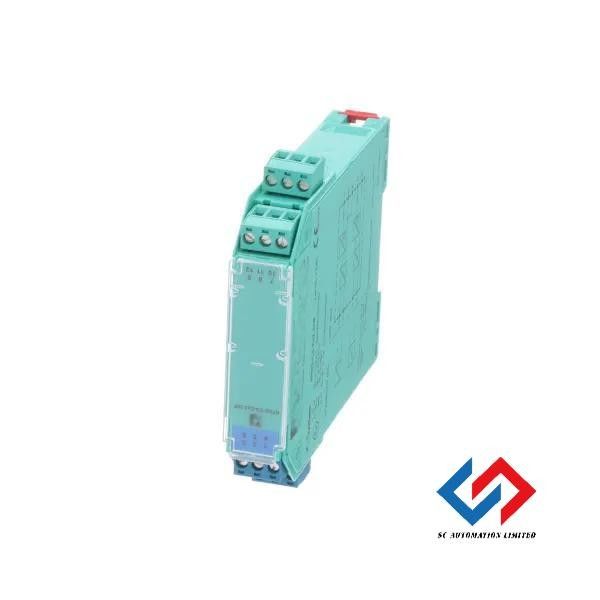

This isolated barrier is used for intrinsic safety applications. The device can be used as a repeater or transmitter power supply for 2-wire transmitters. This device is loop powered, requiring no additional power supply connection.

Technical Specifications
Functional safety parameters SIL 2, SC 3
Supply voltage 5 ... 35 V DC, loop powered
Control circuit Terminals 12-, 11+; 8-, 10-, 9+
Field circuit Terminals 1+, 2-; 4+, 5-
Accuracy 0.1%
Rise time ≤ 5 ms at bounce from 4 ... 20 mA and Uin < 24 V
Galvanic isolation Safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Ambient temperature -20 ... 70 °C (-4 ... 158 °F)
Degree of protection IP20
Mounting 35 mm DIN mounting rail acc. to EN 60715:2001
Certifications and Approvals
  • EU-type examination certificate: BAS 98 ATEX 7343 X
  • FM approval: 116-0437
  • UL approval: E106378 (cULus)
  • IECEx certificate: IECEx BAS 05.0004X, IECEx CML 19.0040X
P+F KFD0-CS-Ex2.50P SIL 2 SC 3 Analog Repeater 5-35V DC 0 P+F KFD0-CS-Ex2.50P SIL 2 SC 3 Analog Repeater 5-35V DC 1
