OEM Bently Nevada 990 Vibration Transmitter 990-05-50-01-00 4-20mA Output

Large Image : OEM Bently Nevada 990 Vibration Transmitter 990-05-50-01-00 4-20mA Output

Product Details:

Place of Origin:	USA
Brand Name:	Bently Nevada
Certification:	ATEX
Model Number:	990-05-50-01-00

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	on request
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

OEM Bently Nevada 990 Vibration Transmitter 990-05-50-01-00 4-20mA Output

Description

Input:	Accepts 1 Non-contacting 3300 NSv Proximity Probe And Extension Cable.	Power:	Requires +12 To +35 Vdc Input At The Transmitter Terminal.
4 To 20 MA Signal Output:	4 To 20 MAdc Over Specified Fullscale Range In 2-wire Configuration.	Maximum Loop Resistance:	1,000 Ω Including Cable At 35 Vdc.
Current Limiting:	23 MA Typical.	Zero And Span:	Non-interacting External Adjustments.
Frequency Response:	5 Hz To 6,000 Hz +0, -3 DB.	Minimum Target Size:	9.5 Mm (0.375 In) Diameter.
Highlight:	OEM bently nevada 990 vibration transmitter , vibration transmitter bently nevada , bently nevada 990 transmitter 23 mA

20mAdc Bently Nevada Vibration Monitoring System 990 Vibration Transmitter 990-05-50-01-00

Product Attributes

Attribute	Value
Input	Accepts 1 non-contacting 3300 NSv Proximity Probe and extension cable.
Power	Requires +12 to +35 Vdc input at the transmitter terminal.
4 to 20 mA signal output	4 to 20 mAdc over specified full-scale range in 2-wire configuration.
Maximum loop resistance	1,000 Ω including cable at 35 Vdc.
Current limiting	23 mA typical.
Zero and span	Non-interacting external adjustments.
Frequency response	5 Hz to 6,000 Hz +0, -3 dB.
Minimum target size	9.5 mm (0.375 in) diameter.

Product Description

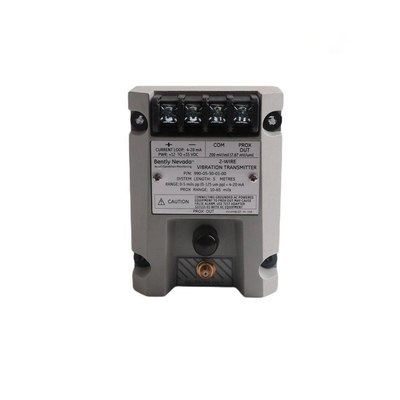

Bently Nevada 990 Vibration Transmitter 990-05-50-01-00

The 990 Vibration Transmitter is designed primarily for original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors, or fans who require a simple 4 to 20 mA proportional vibration signal as input to their machinery control system.

This two-wire, loop-powered device accepts input from our 3300 NSv proximity probe and its matching extension cable (available in 5 m and 7 m system length options). The transmitter conditions the signal into appropriate peak-to-peak vibration amplitude engineering units, providing this value as a proportional 4 to 20 mA industry-standard signal for control system input.

Key Features:

Integrated Proximitor Sensor requires no external unit
Non-isolated "PROX OUT" and "COM" terminals plus coaxial connector for dynamic vibration and gap voltage signal output
Non-interacting zero and span potentiometers under the Transmitter label for loop adjustment
Test Input pin for quick verification of loop signal output
Not OK/Signal Defeat circuit prevents high outputs or false alarms from faulty probes
Choice of DIN-rail clips or bulkhead mounting screws
Potted construction for high humidity (up to 100% condensing) environments
Compatible with 3300 NSv proximity probe for installation in tight spaces

Ordering Information

990-AA-BB-CC-DD

Option	Description
A: Full-scale Option	04 - 0-4 mils pp (0-100 μm pp) 05 - 0-5 mils pp (0-125 μm pp)
B: System Length Option	50 - 5.0 metres (16.4 feet) 70 - 7.0 metres (23.0 feet)
C: Mounting Option	01 - 35 mm DIN rail clips 02 - Bulkhead screws 03 - DIN clips and screws
D: Agency Approval Option	00 - Not required 01 - CSA Division 2 05 - CSA Division 2, ATEX Zone 0, ATEX Zone 2 and includes ABS maritime approval

Related Part Numbers

990-08-XX-03-CN MOD:167541-08 | 990-10-XX-01-00 MOD:163930-01

990-04-XX-01-00 MOD: 165335-01 | 990-05-XX-03-CN MOD:165335-01

990-08-XX-01-00 MOD: 283278-01 | 990-04-70-01-CN

990-05-70-01-CN | 990-10-XX-02-00 MOD: 163930-0

990-04-XX-01-CN MOD:147202-01 | 990-10-XX-01-CN MOD:285269-01

990-04-XX-01-CN MOD: 165335-01 | 990-05-XX-01-00 MOD:147202-01

990-05-50-01-CN | 990-05-XX-01-00 MOD 289549-01

990-05-XX-01-CN MOD:168251-01 | 990-05-XX-01-00 MOD:165335-01

990-05-50-02-00 | 990-10-XX-01-CN MOD:167541-01

990-05-50-01-00 | 990-05-XX-01-CN MOD:147202-01

990-05-70-03-00 | 990-05-50-03-CN

990-05-70-03-CN | 990-04-50-01-CN

990-04-50-02-00 | 990-05-70-01-00
