3.94 mV/mm/s Bently Nevada 190501 Velomitor CT Vibration Transducer

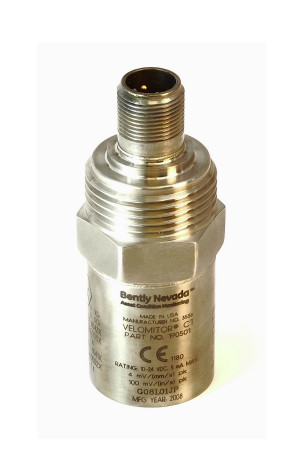

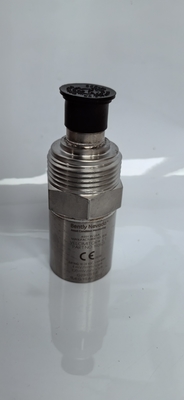

Large Image : 3.94 mV/mm/s Bently Nevada 190501 Velomitor CT Vibration Transducer

Product Details:

Place of Origin:	USA
Brand Name:	Bently Nevada
Certification:	CE
Model Number:	190501-04-00-00

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable

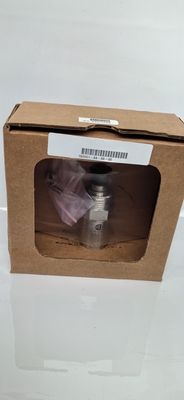

Packaging Details:	standard carton packing
Delivery Time:	12-16weeks
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

3.94 mV/mm/s Bently Nevada 190501 Velomitor CT Vibration Transducer

Description

Sensitivity:	3.94 MV/mm/s (100 MV/in/s) ±5%.	Frequency Response:	3.0 Hz To 900 Hz (180 To 54,000 Cpm) ±1.0 DB 1.5 Hz To 1.0 KHz (90 To 60,000 Cpm) ±3.0 DB
Temperature Sensitivity:	-8% To +5% Typical Over The Operating Temperature Range	Transverse Response:	Less Than 5% Of The Axial Sensitivity
Weight:	<297 G (10.5 Oz.), Typical	<297 G (10.5 Oz.), Typical.:	<297 G (10.5 Oz.), Typical
Height:	82 Mm (3.2 In)	Case Material:	316L Stainless Steel
Highlight:	3.94 mV/mm/s bently nevada vibration monitoring , 3.0Hz bently nevada vibration monitoring , 900Hz bently nevada 190501

Bently Nevada 190501 Velomitor CT Transducer

Product Specifications

Attribute	Value
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Frequency Response	3.0 Hz to 900 Hz (180 to 54,000 cpm) ±1.0 dB 1.5 Hz to 1.0 kHz (90 to 60,000 cpm) ±3.0 dB
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Weight	<297 g (10.5 oz.), typical
Height	82 mm (3.2 in)
Case Material	316L stainless steel

Product Description

The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical).

The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Installation Note: Install the accelerometer transducer on the bearing housing or machine casing. Improper installation may decrease the transducer amplitude and frequency response and/or generate false signals that do not represent actual vibration. Refer to the appropriate instruction manuals and Application Notes.

Upon request, Bently Nevada provides engineering services that can identify the appropriate machine housing measurements and installation assistance if needed.

Ordering Information

Velomitor CT Velocity Transducer

190501 - AA - BB - CC

Mounting Hardware Options

Code	Description
00	No stud
01	Stud 3/8-in 24 to 3/8-in 24
02	Stud 3/8-in 24 to 1/2-in 20
03	Adhesive Stud 3/8-in 24
04	Stud M6x1 with 3/8-in 24 adapter
05	Adhesive Stud M6x1 with 3/8-24 adapter
06	Stud 3/8-in 24 to 1/4-in 28
07	Plate Stud 3/8-in 24 to 3/8-in 24
08	Plate Stud 3/8-in 24 to 1/2-in 20
09	Plate Stud 3/8-in 24 to 1/4-in NPT
10	Plate Stud M6x1 to M6x1 with 3/8-in 24 adapter

Connection Options

Code	Description
00	MIL-C-5015 connection interface
99	Unit with included 32-foot cable

Agency Approval Options

Code	Description
00	No Approvals
01-04	CSA/NRTL/C (Class I, Division 1), ATEX/IECEx/CSA (Class I, Zone 0/1)

Interconnect Cable

CB2W100 - AAA

Code	Length
015	15 feet (4.57 metres)
032	32 feet (9.75 metres)
064	64 feet (19.5 metres)
112	112 feet (34.1 metres)
125	125 feet (38.1 metres)
150	150 feet (45.7 metres)

Related Part Numbers

16710-30 177230-01-01-CN 991-25-50-01-00 21000-28-05-00-024-03-02 177313-02-02-00 330106-05-30-05-02-00 190501-00-00-CN 200200-05-05-CN 200151-060-03-00 330106-05-30-10-02-00 330101-00-25-05-01-CN 200152-150-02-10 330106-05-30-10-02-CN 330103-00-05-10-01-00 330101-00-16-10-02-CN 330130-080-00-00
