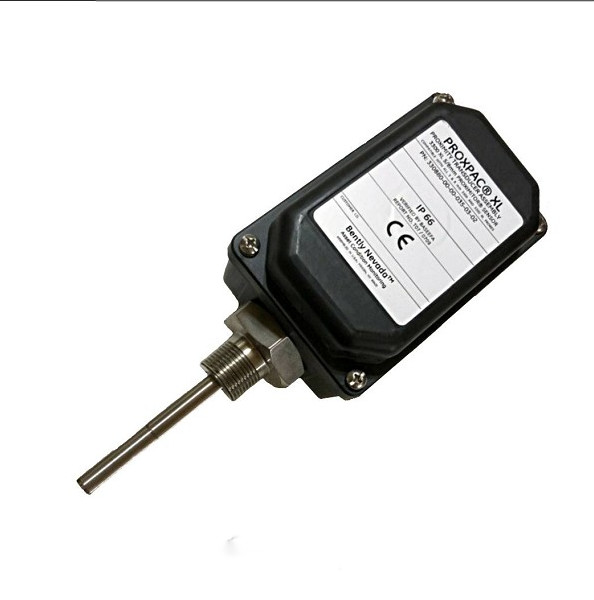

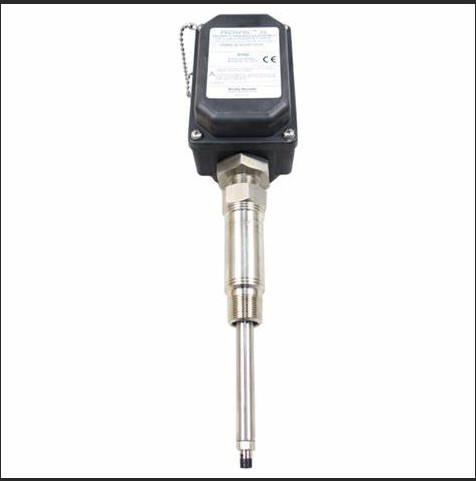

Bently Nevada PROXPAC XL Proximity Transducer Assembly 330880 with 8mm Probe

Bently Nevada PROXPAC XL Proximity Transducer Assembly 330880 with 8mm Probe
Bently Nevada PROXPAC XL Proximity Transducer Assembly 330880 with 8mm Probe Bently Nevada PROXPAC XL Proximity Transducer Assembly 330880 with 8mm Probe Bently Nevada PROXPAC XL Proximity Transducer Assembly 330880 with 8mm Probe

Large Image :  Bently Nevada PROXPAC XL Proximity Transducer Assembly 330880 with 8mm Probe

Product Details:
Place of Origin: USA
Brand Name: Bently Nevada
Certification: CE
Model Number: 330880-16-15-067-01-02
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiable
Packaging Details: standard carton packing
Delivery Time: 12-16weeks
Payment Terms: T/T
Supply Ability: 100pcs per month
Contact Now Chat Now

Bently Nevada PROXPAC XL Proximity Transducer Assembly 330880 with 8mm Probe

Description
Proximitor Sensor Input: 3300 XL 8 Mm Proximity Probe With A 1-metre Cable Length Installed In The Probe Sleeve. Power: Requires -17.5 Vdc To -26 Vdc Without Barriers At 12 MA Maximum Consumption, -23 Vdc To -26 Vdc With Barriers. Operation At A More Positive Voltage Than -23.5 Vdc Can Result In Reduced Linear Range.
Supply Sensitivity: Less Than 2 MV Change In Output Voltage Per Volt Change In Input Voltage. Output Resistance: 50 Ω
Probe Length (m): RPROBE (Ω) 1.0: 7.59 ± 0.50
Highlight:

330880 Proximity Transducer Assembly

,

PROXPAC XL Proximity Transducer Assembly

,

Bently Nevada Proximity Transducer Assembly

Bently Nevada PROXPAC XL Proximity Transducer Assembly 330880
Product Attributes
Proximitor Sensor Input 3300 XL 8 mm Proximity Probe with a 1-metre cable length installed in the probe sleeve.
Power Requires -17.5 Vdc to -26 Vdc without barriers at 12 mA maximum consumption, -23 Vdc to -26 Vdc with barriers. Operation at a more positive voltage than -23.5 Vdc can result in reduced linear range.
Supply Sensitivity Less than 2 mV change in output voltage per volt change in input voltage.
Output resistance 50 Ω
Probe Length (m) RPROBE (Ω)
1.0 7.59 ± 0.50
Product Description

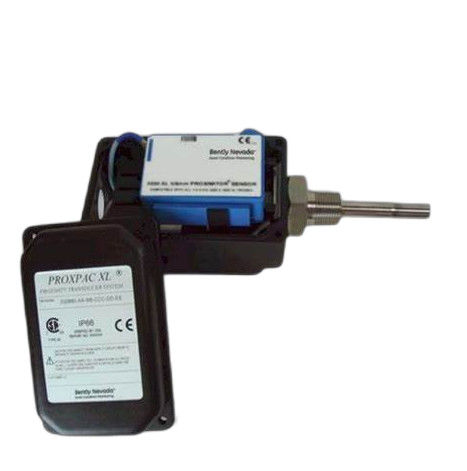

The PROXPAC XL Proximity Transducer Assembly design is similar to our 31000/32000 Proximity Probe Housing Assemblies. The assembly offers the same advantages and features as the 31000 and 32000 housings for accessing and externally adjusting proximity probes. However, the housing cover of the PROXPAC XL Assembly also contains its own 3300 XL Proximitor sensor.

This design makes the PROXPAC XL Assembly a completely self-contained proximity probe system, and eliminates the need for:

  • Extension cables between the probe and its associated Proximitor sensor
  • Separate Proximitor housing, as field wiring connects directly between monitors and PROXPAC XL Assemblies

The PROXPAC XL housing is made of Polyphenylene Sulfide (PPS), an advanced molded thermoplastic that replaces steel and aluminum in previous housings. It incorporates glass and conductive fibers in the PPS to strengthen the housing and more effectively dissipate electrostatic charges.

The housing is rated for Type 4X and for IP66 environments, providing extra protection in severe conditions.

Bently Nevada PROXPAC XL Proximity Transducer Assembly 330880 with 8mm Probe 0
Ordering Information
PROXPAC XL Proximity Transducer, English
330880-AA-BB-CCC-DD-EE
A: Probe and Approvals Option
00 | No probe; Proximitor sensor without approvals
01 | No probe; Proximitor sensor with Multiple Approvals
16 | 3300 XL 8 mm probe without approvals
28 | 3300 XL 8 mm probe with Multiple Approvals
B: Standoff Adapter Option (B Dimension)
Order in increments of 0.5 in (13 mm)
Minimum length: 1.5 in (38 mm)
Maximum length: 7.5 in (191 mm)
Examples:
00 | No standoff adapter
15 | 1.5 in (38 mm)
C: Probe Penetration Option (C Dimension)
For penetration lengths between 1.0 and 2.0 inches, counterbore may be required in machine case to reduce probe side view and/or rear view effects.
Order in increments of 0.1 in (2 mm).
Minimum length: 1.0 in (25 mm)
Maximum length: 30 in (762 mm)
Examples:
000 | No probe sleeve
037 | 3.7 in (94 mm)
224 | 22.4 in (569 mm)
D: Fittings Option
00 | No fittings; two plugs and two washers
01 | One 3/4-14 NPT fitting, two plugs
02 | Two 3/4-14 NPT fittings, one plug
03 | One 3/4-14 NPT fitting, one 3/4-14 NPT to 1/2-14 NPT SST reducer and two plugs
E: Mounting Thread Option
00 | No outer sleeve assembly
02 | 3/4-14 NPT (Required if ordering Standoff Adapter Option)
05 | 7/8-14 UNF-2A
