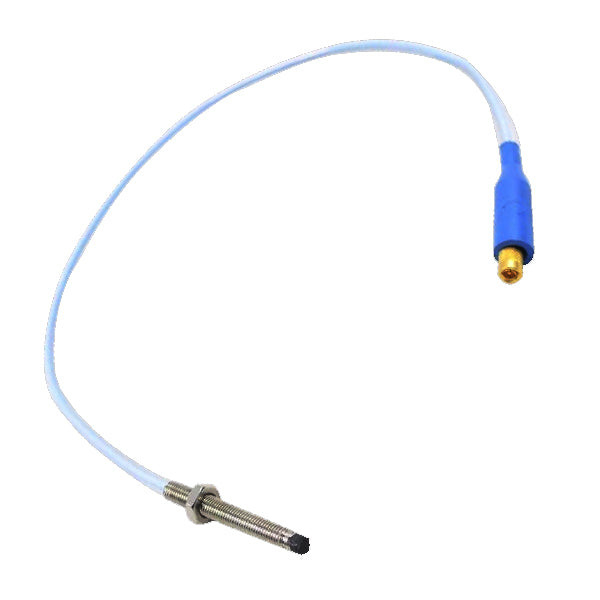

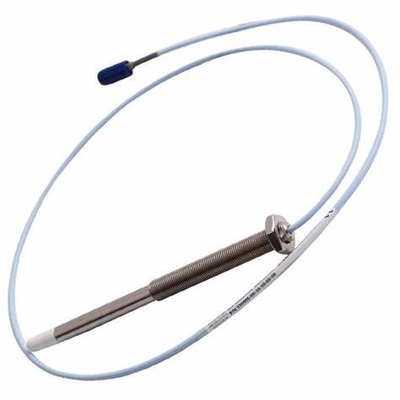

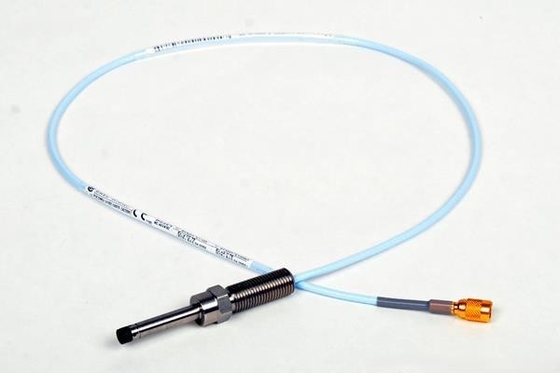

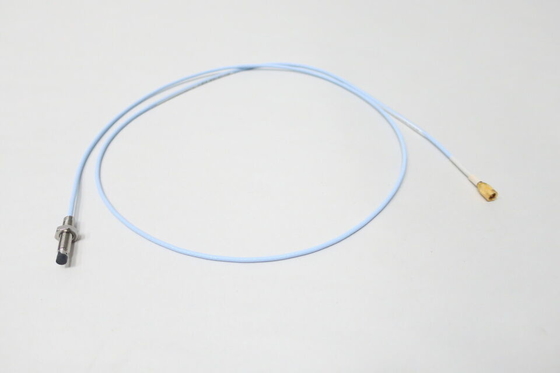

Bently Nevada 3300 NSv Proximity Probe 330901 330905 Vibration Sensor

Large Image : Bently Nevada 3300 NSv Proximity Probe 330901 330905 Vibration Sensor

Product Details:

Place of Origin:	USA
Brand Name:	Bently Nevada
Certification:	ATEX/IECEx
Model Number:	330901-00-12-10-02-CN/330905-02-12-05-02-00

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	on request
Supply Ability:	100pcs per month

Contact Now Chat Now

Bently Nevada 3300 NSv Proximity Probe 330901 330905 Vibration Sensor

Description

Input:	Accepts One Non-contacting 3300 RAM Or 3300 NSv Proximity Probe And Extension Cable.	Power:	Requires -17.5 Vdc To -26 Vdc Without Barriers At 12 MA Maximum Consumption, -23 Vdc To -26 Vdc With Barriers. Operation At A More Positive Voltage Than -23.5 Vdc Can Result In Reduced Linear Range.
Supply Sensitivity:	Less Than 2 MV Change In Output Voltage Per Volt Change In Input Voltage.	Output Resistance:	50 Ω
Sensor Material::	A380 Aluminum	System Length::	5 Or 7 Metres Including Extension Cable
Highlight:	330905 Bently Nevada Proximity Probe , 330901 Bently Nevada Proximity Probe , Bently Nevada 3300 NSv Proximity Probe

Bently Nevada 3300 NSv Proximity Probe 330901 330905

Product Specifications

Attribute	Value
Input	Accepts one non-contacting 3300 RAM or 3300 NSv Proximity Probe and Extension Cable
Power	Requires -17.5 Vdc to -26 Vdc without barriers at 12 mA maximum consumption, -23 Vdc to -26 Vdc with barriers. Operation at a more positive voltage than -23.5 Vdc can result in reduced linear range
Supply Sensitivity	Less than 2 mV change in output voltage per volt change in input voltage
Output resistance	50 Ω
Sensor Material	A380 aluminum
System Length	5 or 7 metres including extension cable

Product Description

The 3300 XL NSv Proximitor Sensor has similar features to those found in the 3300 XL 8 mm Proximitor Sensor. Its thin design allows mounting in either high-density DIN-rail installations or traditional panel mount configurations. Improved RFI/EMI immunity enables European CE mark approvals without special mounting considerations and prevents interference from nearby high frequency radio signals. SpringLoc terminal strips require no special tools and facilitate robust field wiring connections.

Ordering Information

3300 NSv Proximity Probes, Standard

Part Number Format: AA-BB-CC-DD-EE

330901 - 3300 NSv Probe, 1/4-28 UNF thread, without armor
330902 - 3300 NSv Probe, 1/4-28 UNF thread, with armor
330908 - 3300 NSv Probe, 3/8-24 UNF thread, without armor
330909 - 3300 NSv Probe, 3/8-24 UNF thread, with armor

Configuration Options

Unthreaded Length: Order in 0.1 in increments (0-9.2 in range)
Case Length: Order in 0.1 in increments (0.8-9.9 in range)
Total Length: 0.5m, 1.0m, 5.0m, or 7.0m options
Connector: Miniature coaxial ClickLoc with/without protector, standard or FluidLoc cable
Agency Approval: Standard or multiple approvals (CSA NRTL/C and BASEEFA/CENELEC)

3300 NSv Probes, Metric

330903 - 3300 NSv Probe, M8 x 1 thread, without armor
330904 - 3300 NSv Probe, M8 x 1 thread, with armor
330905 - 3300 NSv Probe, M10 x 1 thread, without armor
330910 - 3300 NSv Probe, M10 x 1 thread, with armor

Metric Configuration Options

Unthreaded Length: Order in 10 mm increments (0-230 mm range)
Case Length: Order in 10 mm increments (20-250 mm range)
Total Length: 0.5m, 1.0m, 5.0m, or 7.0m options
Connector: Miniature coaxial ClickLoc with/without protector, standard or FluidLoc cable
Agency Approval: Standard or multiple approvals (CSA NRTL/C and BASEEFA/CENELEC)
