Bently Nevada 3300 XL 8mm ETR Reverse Mount Probe M10x1 Thread

Bently Nevada 3300 XL 8mm ETR Reverse Mount Probe M10x1 Thread
Bently Nevada 3300 XL 8mm ETR Reverse Mount Probe M10x1 Thread Bently Nevada 3300 XL 8mm ETR Reverse Mount Probe M10x1 Thread Bently Nevada 3300 XL 8mm ETR Reverse Mount Probe M10x1 Thread Bently Nevada 3300 XL 8mm ETR Reverse Mount Probe M10x1 Thread

Large Image :  Bently Nevada 3300 XL 8mm ETR Reverse Mount Probe M10x1 Thread

Product Details:
Place of Origin: USA
Brand Name: Bently Nevada
Certification: CE
Model Number: 330196-05-30-50-CN
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiable
Packaging Details: standard carton packing
Delivery Time: on request
Payment Terms: T/T
Supply Ability: 100pcs per month
Contact Now Chat Now

Bently Nevada 3300 XL 8mm ETR Reverse Mount Probe M10x1 Thread

Description
Probe Tip Material: Polyphenylene Sulfide (PPS). Probe Case Material: AISI 303 Or 304 Stainless Steel (SST).
Armor (optional On Both): Flexible AISI 302 Or 304 SST With FEP Outer Jacket. Connector Material: Gold-plated Brass Or Goldplated Beryllium Copper.
Maximum Connector Torque: 0.565 N•m (5 In•lbf)
Highlight:

330196 Reverse Mount Probes

,

8 mm Reverse Mount Probes

,

3300 XL Reverse Mount Probes

Bently Nevada 3300 XL 8 mm Extended Temperature Range ETR Reverse Mount Probes 330196
Product Specifications
Attribute Value
Probe Tip Material Polyphenylene sulfide (PPS)
Probe Case Material AISI 303 or 304 stainless steel (SST)
Armor (optional on both) Flexible AISI 302 or 304 SST with FEP outer jacket
Connector Material Gold-plated brass or gold-plated beryllium copper
Maximum Connector Torque 0.565 N•m (5 in•lbf)
Product Overview

The 3300 XL 8 mm system delivers advanced performance in eddy current proximity transducer systems. The standard 5-meter system complies with API 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

Ordering Information
3300 XL 8 mm Extended Temperature Range (ETR) Proximity Probes:

330191 3300 XL 8 mm ETR Probe, 3/8-24 UNF thread, without armor

330192 3300 XL 8 mm ETR Probe, 3/8-24 UNF thread, with armor

Part Number Format: AA-BB-CC-DD
  • A: Unthreaded Length Option - Order in 0.1 in. increments (Max: 8.8 in., Min: 0.0 in.)
  • B: Overall Case Length Option - Order in 0.5 in. increments (Max: 9.6 in., Min: 0.8 in.)
  • C: Total Length Option - 05: 0.5m, 10: 1.0m, 15: 1.5m, 20: 2.0m, 50: 5.0m, 90: 9.0m
  • D: Agency Approval Option - 00: Not required, 05: CSA, ATEX, IECEx Approvals
3300 XL 8 mm ETR Proximity Probes, Metric:

330193 3300 XL 8 mm Probe, M10 x 1 thread, without armor

330194 3300 XL 8 mm Probe, M10 x 1 thread, with armor

Part Number Format: AA-BB-CC-DD
  • A: Unthreaded Length Option - Order in 10 mm increments (Max: 230 mm, Min: 0 mm)
  • B: Overall Case Length Option - Order in 10 mm increments (Max: 250 mm, Min: 20 mm)
  • C: Total Length Option - 05: 0.5m, 10: 1.0m, 15: 1.5m, 20: 2.0m, 50: 5.0m, 90: 9.0m
  • D: Agency Approval Option - 00: Not required, 05: CSA, ATEX, IECEx Approvals
3300 XL 8 mm ETR Reverse Mount Probes:

330195-02-12-CC-DD 3/8-24 UNF threads

330196-05-30-CC-DD M10 x 1 threads

Configuration Options:
  • C: Total Length Option - 05: 0.5m, 10: 1.0m, 15: 1.5m, 20: 2.0m, 50: 5.0m, 90: 9.0m
  • D: Agency Approval Option - 00: Not required, 05: CSA, ATEX, IECEx approvals
3300 XL 8 mm ETR Proximity Probes, Smooth Case:

330197 3300 XL 8 mm Probe without armor

330198 3300 XL 8 mm Probe with armor

Part Number Format: AA-BB-CC
  • A: Overall Case Length Option - Order in 0.5 in. increments (Max: 9.5 in., Min: 1.0 in.)
  • B: Total Length Option - 05: 0.5m, 10: 1.0m, 15: 1.5m, 20: 2.0m, 50: 5.0m, 90: 9.0m
  • C: Agency Approval Option - 00: Not required, 05: CSA, ATEX, IECEx Approvals
Product Images

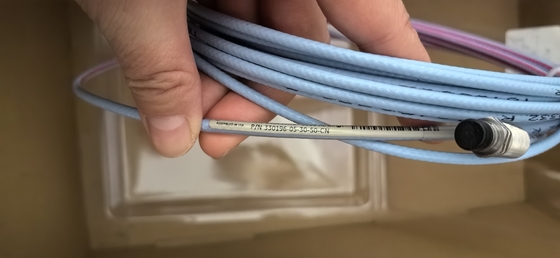

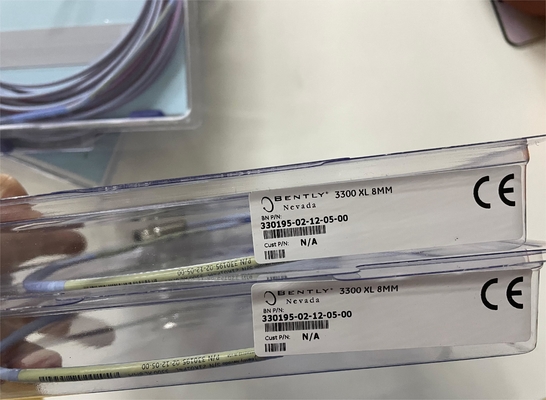

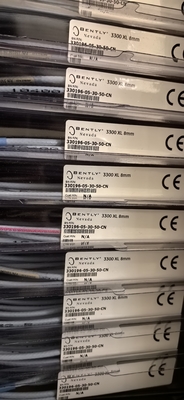

Bently Nevada 3300 XL 8mm ETR Reverse Mount Probe M10x1 Thread 0 Bently Nevada 3300 XL 8mm ETR Reverse Mount Probe M10x1 Thread 1 Bently Nevada 3300 XL 8mm ETR Reverse Mount Probe M10x1 Thread 2
