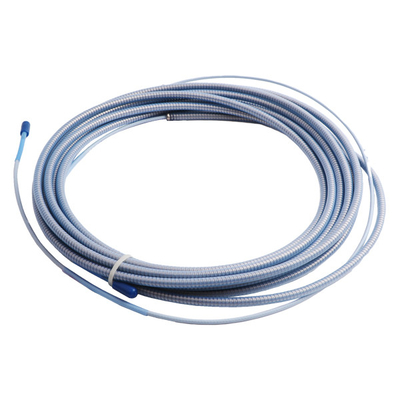

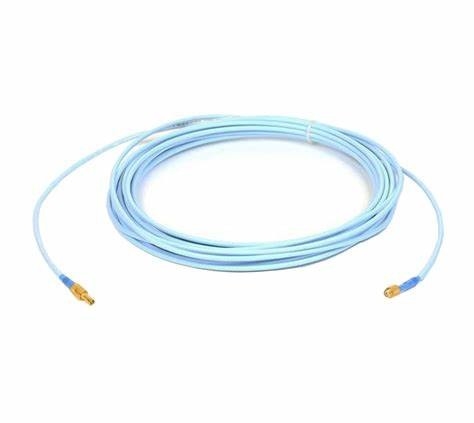

330190 Bently Nevada Extension Cable 3300 XL ETR For High Temp

Acceleration range: 80 g peak

Amplitude nonlinearity: 1%

Current regulating diode: 2-10 mA

Output Impedance, max 1: 100 Ω

Length: 6.5m(21.3inch)

Extension cable dc resistance: Center conductor: 0.220 Ω/m (0.067 Ω/ft) Shield: 0.066 Ω/m (0.020 Ω/ft)

Extension cable capacitance: 69.9 pF/m (21.3 pF/ft) typical

Linear Range: 1.5 mm (60 mils). Linear range begins at approximately 0.25 mm (10 mils) from target and is from 0.25 to 1.75 mm (10 to 70 mils) (approximately -1 to - 13 Vdc)

DC resistance: Center conductor: 0.220 Ω/m (0.067 Ω/ft);Shield: 0.066 Ω/m (0.020 Ω/ft)

capacitance: 69.9 pF/m (21.3 pF/ft) typical

Weight: 64 g/m (0.7 oz/ft)

Operating and Storage Temperature: -52°C +351°F) to +177°C (-62°F to

Part Number: 148722-01

Model Number: 148722-01

Manufacturer: Bently Nevada

Country of origin: USA

Probe Tip Material: Polyphenylene sulfide (PPS).

Probe Case Material: AISI 304 stainless steel (SST).

Proximitor Sensor Materia: A380 aluminum

System Length: 5 or 7 meters including extension cable
