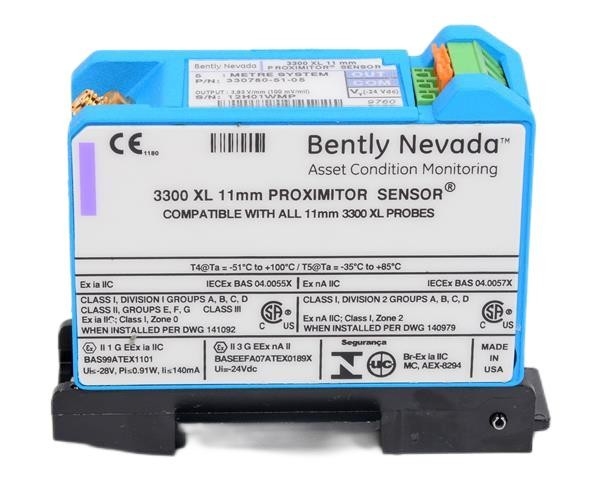

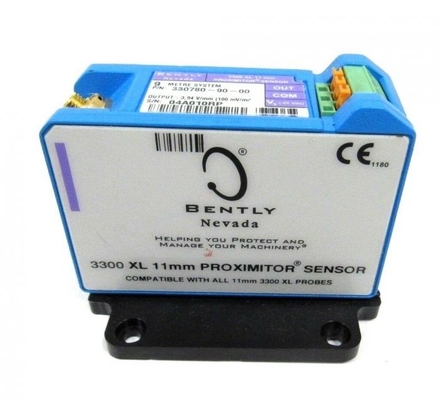

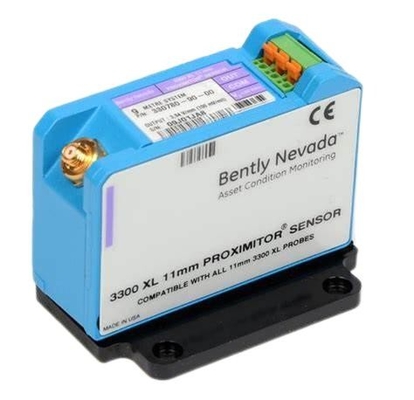

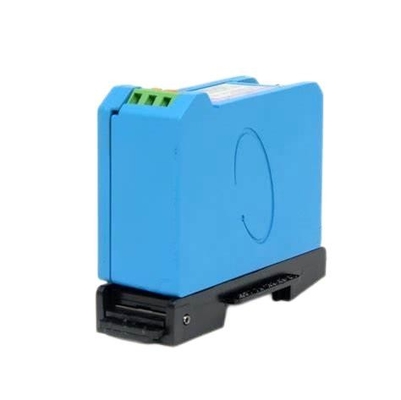

Bently Nevada 3300 Xl 11mm Proximity Sensor 330780 A380 Aluminum

Large Image : Bently Nevada 3300 Xl 11mm Proximity Sensor 330780 A380 Aluminum

Product Details:

Place of Origin:	USA
Brand Name:	Bently Nevada
Certification:	CE
Model Number:	330780-91-CN

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	on request
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

Bently Nevada 3300 Xl 11mm Proximity Sensor 330780 A380 Aluminum

Description

Proximitor Sensor Material:	A380 Aluminum	System Length:	5 Or 9 Extension Meters Cable
Connector Material:	Gold-plated Brass	Weight:	255 G (9 Oz)
Operating Temperature:	-52°C To +100°C (-62°F To +212°F)	Storage Temperature:	-52°C To +105°C (-62°F To +221°F)
Highlight:	Bently Nevada 3300 xl 11mm proximity sensor , 3300 xl 11mm proximity sensor 330780 , bently nevada proximity sensor 3300 xl 11mm

Bently Nevada 3300 XL 11 mm Proximitor Sensor 330780

Product Specifications

Attribute	Value
Proximitor Sensor Material	A380 aluminum
System Length	5 or 9 extension meters cable
Connector Material	Gold-plated brass
Weight	255 g (9 oz)
Operating Temperature	-52°C to +100°C (-62°F to +212°F)
Storage Temperature	-52°C to +105°C (-62°F to +221°F)

Product Description

The 3300 XL 11 mm Proximity Transducer System consists of:

3300 XL 11 mm probe
3300 XL 11 mm extension cable
3300 XL 11 mm Proximitor Sensor

The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System.

Primary applications where the longer linear range is necessary:

Axial (thrust) position measurements
Ramp differential expansion measurements on steam turbines
Rod position or rod drop measurements on reciprocating compressors
Tachometer and zero speed measurements
Phase reference (Keyphasor) signals

Ordering Information

Code	Description
5 0	5.0 meter (16.4 feet) system length, panel mount
5 1	5.0 meter (16.4 feet) system length, DIN mount
5 2	5.0 meter (16.4 feet) system length, no mounting hardware
9 0	9.0 meters (29.5 feet) system length, panel mount
9 1	9.0 meters (29.5 feet) system length, DIN mount
9 2	9.0 meters (29.5 feet) system length, no mounting hardware
0 0	Agency approval not required
0 5	Multiple agency approvals

Accessories

146255	3300XL 11 mm User Guide
144979	Performance Specification
02120015	Bulk field wire. 1.0 mm² (18 AWG), 3 conductor, twisted, shielded cable with drain wire. Specify length in feet.
02173009	Bulk field wire. 1.0 mm² (18 AWG), 3 conductor, twisted, shielded cable. Specify length in feet.
138492-01	Replacement panel-mount mounting pad
138493-01	Replacement DIN-mount mounting pad
01609137	BNC (F) to banana plugs
01609138	Proximitor Connector Test Pin wiring (two test pins to a BNC (F) connector)
40971-04	50 Ω cable with two BNC (M) connectors. Use this cable in combination with adapter 01609137 and adapter 01609138 when checking performance of the transducer system from the Proximitor Sensor test pin holes.
04310310	3300XL Proximitor Sensor Panel-mount Screws. Package includes four 6-32 UNC thread forming mounting screws (Supplied standard with 3300 XL Proximitor Housings [3300 XL option]).
03200006	Silicone Self-fusing tape. A 9.1 meter (10 yard) roll of silicone tape to protect connectors. It is easy to install and provides excellent electrical isolation and protection from the environment. It is not recommended for use inside the casing of the machine.
40113-02	Connector Protector Kit. Connector Protector Kit for 3300 XL probes and extension cables, including connector protectors and installation tools.
136536-01	Connector Protector Adapter. Makes our previous 3300 connector protector kits compatible with 3300 XL probes and extension cable connectors.
40180-02	Connector Protectors. Package contains 10 pairs of connector protectors.
03839410	Male Connector Protector. Placed on the extension cable to connect to the female connector protector on the probe and provide environmental protection of connectors.
03839420	Female Connector Protector. Placed on the probe lead to connect to the male connector protector on the extension cable and provide environmental protection of connectors. Also placed on the extension cable to slide over the Proximitor Sensor connection and protect it from the environment.
330153-01	3300 XL Connector Kit. Used on 3300 XL probes and extension cables. Contains one set of male and female ClickLoc connectors, sleeves and one strip of silicone tape.
163356	Connector Crimp Tool Kit. Includes one set of 75 Ω 3300 XL ClickLoc inserts and connector installation instructions. Supplied with carrying case.
