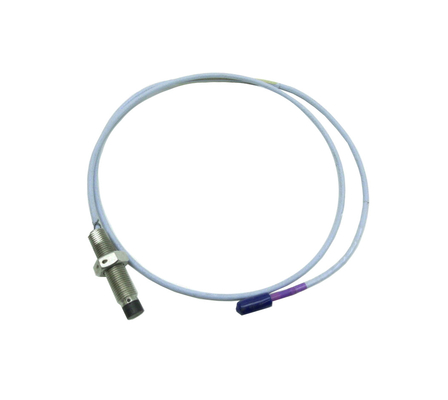

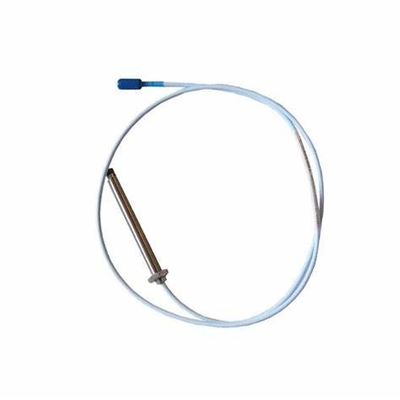

Bently Nevada 3300 XL 11mm Proximity Probe 330707 PPS Tip 5/8-18 UNF

Large Image : Bently Nevada 3300 XL 11mm Proximity Probe 330707 PPS Tip 5/8-18 UNF

Product Details:

Place of Origin:	USA
Brand Name:	Bently Nevada
Certification:	CE
Model Number:	330707-00-25-10-12-00

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	12-16weeks
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

Bently Nevada 3300 XL 11mm Proximity Probe 330707 PPS Tip 5/8-18 UNF

Description

Probe Tip Material:	Polyphenylene Sulfide (PPS).	Polyphenylene Sulfide (PPS).:	AISI 304 Stainless Steel (SST).
Proximitor Sensor Material:	A380 Aluminum	System Length:	5 Or 9 Extension Meters Cable
Connector Material:	Gold-plated Brass	Maximum Torque:	0.565 N·m (5 In·lb)
Highlight:	11 mm Proximity Probes , Bently Nevada Proximity Probes , 330707 Proximity Probes

Bently Nevada 3300 XL 11 mm Proximity Probes 330707 for Polyphenylene Sulfide PPS Tip

Product Specifications

Probe Tip Material	Polyphenylene sulfide (PPS)
Probe Case Material	AISI 304 stainless steel (SST)
Proximitor Sensor Material	A380 aluminum
System Length	5 or 9 extension meters cable
Connector Material	Gold-plated brass
Maximum torque	0.565 N·m (5 in·lb)

Product Description

The 3300 XL 11 mm probe is available in multiple configurations, including armored and unarmored versions with ½-20, 5⁄8-18, M14 X 1.5, and M16 X 1.5 probe threads. Reverse mount versions feature standard 3⁄8-24 or M10 X 1 threads.

Key Features:

Gold-plated brass ClickLoc connectors that lock securely in place
Patented TipLoc molding method for superior probe tip-to-body bonding
CableLoc design ensures cable attachment with 330 N (75 lb) pull strength
Available in multiple thread configurations and armor options

Ordering Information

Standard 3300 XL 11 mm Proximity Probes:

330701 - 1/2-20 UNF thread, without armor
330702 - 1/2-20 UNF thread, with armor
330707 - 5/8-18 UNF thread, without armor
330708 - 5/8-18 UNF thread, with armor

Part Number Configuration (AA-BB-CC-DD-EE):

A: Unthreaded Length (0.1 in increments, 0.0-8.9 in)
B: Case Length (0.1 in increments, 1.0-9.9 in)
C: Total Length (1.0m, 5.0m, or 9.0m)
D: Connector/Cable Type (standard or FluidLoc)
E: Agency Approval (00 or 05)

Metric 3300 XL 11 mm Probes:

330703 - M14 x 1.5 thread, without armor
330704 - M14 x 1.5 thread, with armor
330709 - M16 x 1.5 thread, without armor
330710 - M16 x 1.5 thread, with armor

Reverse Mount Probes:

330705-02-18-CC-DD-EE - 3/8-24 UNF threads
330706-005-046-CC-DD-EE - M10 x 1 threads
