Bently Nevada 3300 XL 11mm Extension Cable 330730 with FEP Insulation

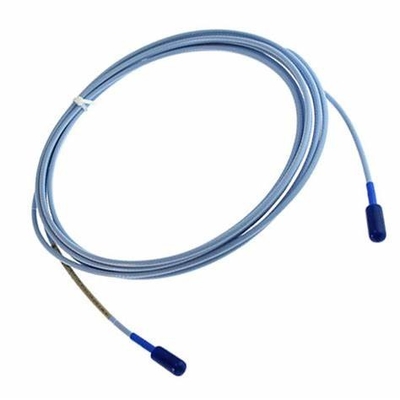

Large Image : Bently Nevada 3300 XL 11mm Extension Cable 330730 with FEP Insulation

Product Details:

Place of Origin:	USA
Brand Name:	Bently Nevada
Certification:	CE
Model Number:	330730-080-10-00

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	12-16weeks
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

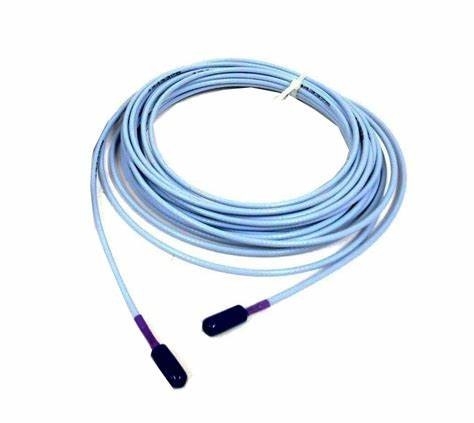

Bently Nevada 3300 XL 11mm Extension Cable 330730 with FEP Insulation

Description

Extension Cable Material:	75 Ω Triaxial, Fluoroethylene Propylene (FEP) Insulated.	Extension Cable Armor (optional):	Flexible AISI 302 SST With FEP Outer Jacket.
Tensile Strength (maximum Rated):	330 N (75 Pounds) Probe Case To Probe Lead. 270 N (60 Pounds) At Probe Lead To Extension Cable Connectors.	Connector Material:	Gold-plated Brass
Weight:	Extension Cable:45 G/m (0.5 Oz/ft);Armored Extension Cable:140 G/m (1.5 Oz/ft)	Operating And Storage Temperature:	-52°C +351°F) To +177°C (-62°F To+351°F)
Highlight:	11 mm Extension Cable , Bently Nevada Extension Cable , 330730 Extension Cable

Bently Nevada 3300 XL 11 mm Extension Cable 330730

Product Specifications

Extension Cable Material	75 Ω triaxial, fluoroethylene propylene (FEP) insulated.
Extension Cable Armor (optional)	Flexible AISI 302 SST with FEP outer jacket.
Tensile Strength (maximum rated)	330 N (75 pounds) probe case to probe lead. 270 N (60 pounds) at probe lead to extension cable connectors.
Connector Material	Gold-plated brass
Weight	Extension Cable: 45 g/m (0.5 oz/ft); Armored Extension Cable: 140 g/m (1.5 oz/ft)
Operating and Storage Temperature	-52°C (-62°F) to +177°C (+351°F)

Product Description

The Bently Nevada 3300 XL 11 mm probe is available in various configurations including armored and unarmored versions with ½-20, 5⁄8-18, M14 X 1.5, and M16 X 1.5 probe threads. Reverse mount versions come standard with either 3⁄8-24 or M10 X 1 threads.

All transducer system components feature gold-plated brass ClickLoc connectors that lock securely in place. The patented TipLoc molding method ensures a durable bond between probe tip and body, while the CableLoc design provides 330 N (75 lb) pull strength for secure cable attachment.

Ordering Information

Model Number Format: 330730-AAA-BB-CC

Note: Ensure the combined extension cable and probe lengths equal the Proximitor Sensor Total length.

Configuration Options

A: Cable Length
- 040: 4.0 meters (13.1 feet)
- 080: 8.0 meters (26.2 feet)
B: Connector and Cable Type
- 00: Standard cable
- 01: Armored cable
- 02: Standard cable with connector protector
- 03: Armored cable with connector protector
- 10: FluidLoc cable
- 11: Armored FluidLoc cable
- 12: FluidLoc cable with connector protector
- 13: Armored FluidLoc cable with connector protector
C: Agency Approvals
- 00: Not required
- 05: Multiple Approvals

Related Models

330780-51-CN

330780-51-00

330930-045-03-00

330780-X1-00 MOD 148367-55

330780-50-00

330930-065-05-00

330780-Х1-CN MOD 148367-24

330780-50-CN

330930-060-03-00

330780-X1-CN MOD 148367-16

330780-90-CN

330930-060-09-00

330780-90-00

330780-52-00

330930-065-04-CN

330780-91-00

330780-52-CN

330930-040-11-CN

330780-91-CN

330780-92-00

330930-060-06-00

330780-90-CN

330780-92-CN

330930-040-10-CN

330780-X1-CN MOD 148367-16

330930-045-02-00

330930-060-04-00
