Bently Nevada 3300 XL 25mm Extension Cable 330854 High Temp FluidLoc

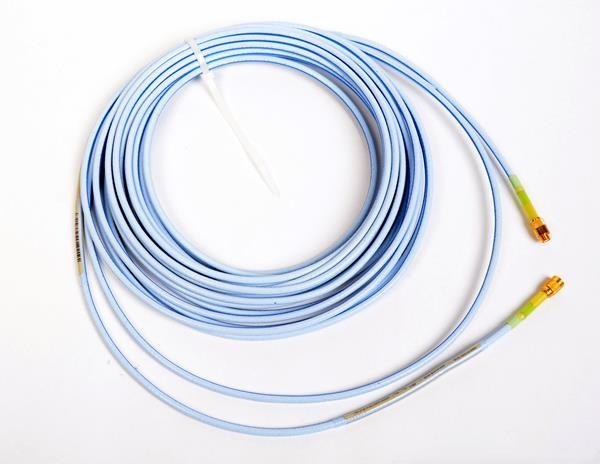

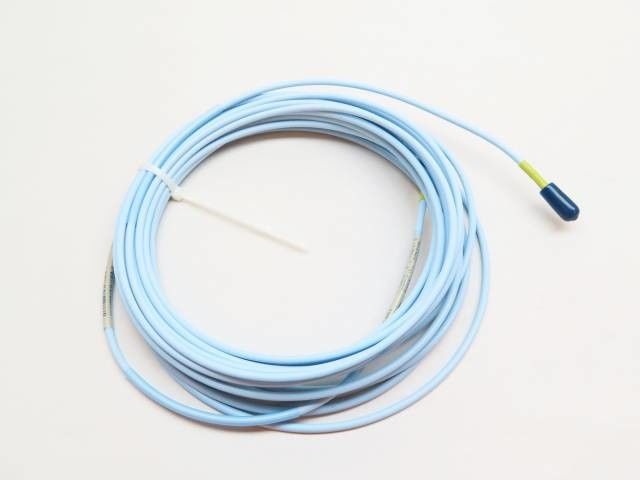

Large Image : Bently Nevada 3300 XL 25mm Extension Cable 330854 High Temp FluidLoc

Product Details:

Place of Origin:	USA
Brand Name:	Bently Nevada
Certification:	CE
Model Number:	330854-080-24-CN

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	12-16weeks
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

Bently Nevada 3300 XL 25mm Extension Cable 330854 High Temp FluidLoc

Description

Material:	75 Ω Triaxial, Perfluoroalkoxyethylene (PFA) Insulated FluidLoc Cable.	System Length:	5 Or 9 Extension Metres Cable Including
Probe And Extension Cable Armor (optional):	Flexible AISI 302 SST With PFA Outer Jacket.	Tensile Strength (maximum Rated):	330 N (75 Pounds) Probe Case To Probe Lead. 270 N (60 Pounds) At Probe Lead To Extension Cable Connectors
Connector Material:	Gold-plated Brass And Gold-plated Beryllium Copper	Weight:	Extension Cable:45 G/m (0.5 Oz/ft);Armored Extension Cable:140 G/m (1.5 Oz/ft)
Highlight:	Bently Nevada 3300 XL Extension Cable , Extension Cable 330854 , 330854

Bently Nevada 3300 XL 25 mm Extension Cable 330854 Beryllium Copper Connector

Product Specifications

Attribute	Value
Material	75 Ω triaxial, perfluoroalkoxyethylene (PFA) insulated FluidLoc cable
System Length	5 or 9 extension metres cable including
Probe and Extension Cable Armor (optional)	Flexible AISI 302 SST with PFA outer jacket
Tensile Strength (maximum rated)	330 N (75 pounds) probe case to probe lead. 270 N (60 pounds) at probe lead to extension cable connectors
Connector material	Gold-plated brass and gold-plated beryllium copper
Weight	Extension Cable: 45 g/m (0.5 oz/ft); Armored Extension Cable: 140 g/m (1.5 oz/ft)

Product Description

The Bently Nevada 3300 XL 25 mm probe is engineered for maximum durability in demanding steam turbine DE environments. It maintains operational accuracy in continuous high temperatures up to 200°C (392°F) and withstands intermittent peaks of 250°C (482°F).

Features front and rear seals combined with FluidLoc cable to prevent moisture ingress
Standard high-temperature ClickLoc connectors on both probe and extension cable
Includes connector protectors and installation tool to maintain connector integrity
Removable collar on probe lead ClickLoc connector facilitates cable routing in tight spaces
Available in multiple case styles with various thread options (English and metric)
Threaded cases include locknuts with pre-drilled safety wire holes

Ordering Information

3300 XL 25 mm Extension Cable
330854-AAA-BB-CC

A: Cable Length Option
0 4 0 - 4.0 metres (13.1 feet)
0 8 0 - 8.0 metres (26.2 feet)

B: Armor and Cable Option
2 4 - High Temperature FluidLoc cable
2 5 - Armored High Temperature FluidLoc cable

C: Agency Approval Option
0 0 - No Approvals
0 5 - Multiple Approvals

Accessories and Related Models

163235	03200006
148722-01	40113-02
330187	29660-01
02120015	136536-01
02173009	40180-02
138492-01	03839410
138493-01	03839420
04310310	330153-08
163356	330854-080-24-00
330854-080-24-CN	330854-040-24-00
330854-080-25-00	330854-040-25-CN
330854-040-24-CN	330854-080-25-CN
