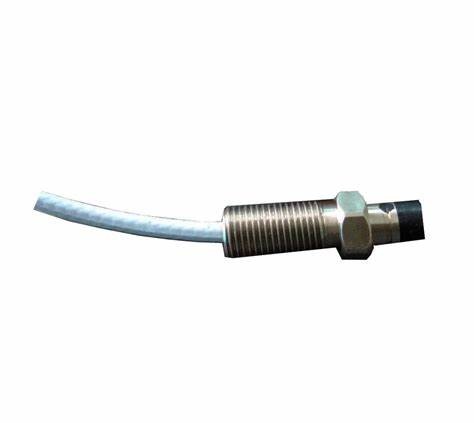

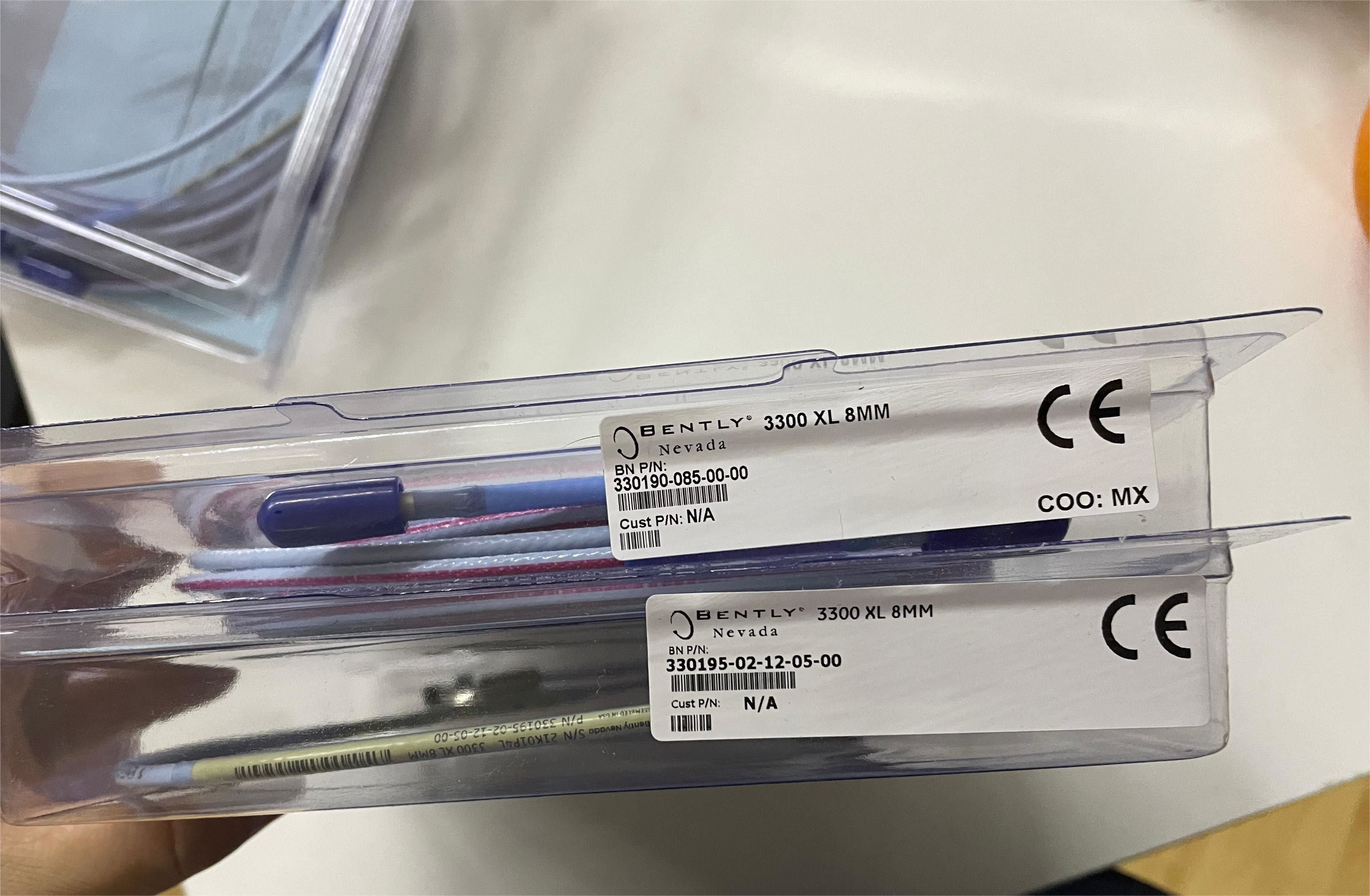

330195-02-12-05-00 Bently Nevada 3300 XL 8 mm Extended Temperature Range (ETR) Reverse Mount Probes
Product Attributes
| Attribute |
Value |
| Proximitor Sensor Input |
Accepts one non-contacting 3300-series 5 mm, 3300 XL 8 mm Proximity Probe and Extension Cable. |
| Supply Sensitivity |
Less than 2 mV change in output voltage per volt change in input voltage. |
| Output Resistance |
50 Ω |
| Probe Tip Material |
Polyphenylene sulfide (PPS). |
| Armor (optional on both) |
Flexible AISI 302 or 304 SST with FEP outer jacket. |
| Proximitor Sensor Material |
A308 aluminum |
Product Description
The 330195-02-12-05-00 is an extended temperature range (ETR) probe designed for applications where either the probe lead or extension cable may exceed standard temperature specifications. Key features include:
- Extended temperature rating up to 218°C (425°F) for the probe

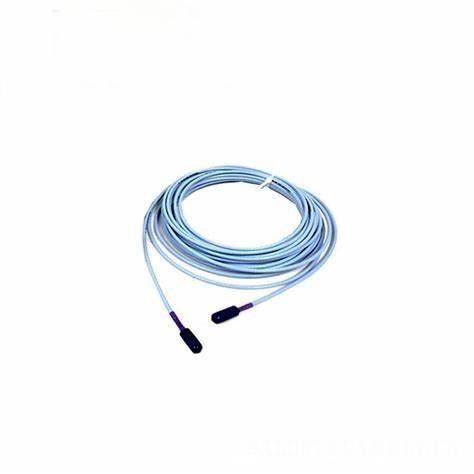

- Extended temperature rating up to 260°C (500°F) for the ETR extension cable
- Compatible with standard temperature probes and cables
- Uses standard 3300 XL Proximitor Sensor
Note: When using any ETR component as part of your system, the ETR component limits the system accuracy to the accuracy of the ETR system.
Ordering Information
| Code |
Description |
| 05 |
0.5 meter (1.6 feet) |
| 10 |
1.0 meter (3.3 feet) |
| 15 |
1.5 meter (4.9 feet) |
| 20 |
2.0 meters (6.6 feet) |
| 50 |
5.0 meters (16.4 feet) |
| 90 |
9.0 meters (29.5 feet) |
| 00 |
No agency approvals required |
| 05 |
CSA, ATEX, IECEx approvals |
Related Models
| 330195-02-12-05-00 |
330195-02-12-05-CN |
330195-02-12-05-05 |
| 330195-02-12-90-CN |
330195-02-12-90-00 |
330195-02-12-90-05 |
| 330195-02-12-50-CN |
330195-02-12-50-00 |
330195-02-12-50-05 |
| 330195-02-12-10-CN |
330195-02-12-10-00 |
330195-02-12-10-05 |
| 330195-02-12-15-00 |
330195-02-12-15-CN |
330195-02-12-15-05 |
| 330195-02-12-20-00 |
330195-02-12-20-CN |
330195-02-12-20-05 |
