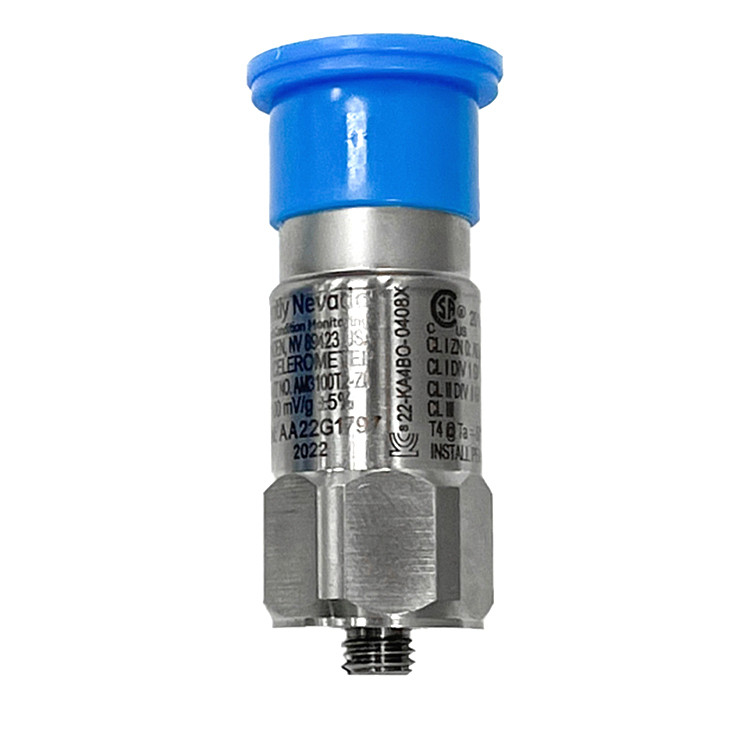

AM3100T2-Z0 Bently Nevada IEPE Accelerometer
Product Specifications
| Cable exit |
Top exit sensor |
| Sensitivity |
100 mV/g |
| Accel range |
± 80 g |
| Acceleration range |
80 g peak |
| Voltage source |
18-30 Vdc |
| Current regulating diode |
2-10 mA |
Product Description
This series of Integrated Electronics Piezo-Electric (IEPE) accelerometers are optimized for obtaining high quality vibration signals in harsh industrial environments. Their piezo sensing elements provide exceptional dynamic range, frequency range and linearity, while their integrated amplifiers boost the signal, making them relatively immune to electrical noise.
They require an industry standard constant-current power supply, and provide an output voltage proportional to the acceleration signal. So they can interface to a wide variety of condition monitoring systems.
Within the series are options for 100 or 500 mV/g sensitivity, top-exit or side-exit connector, and several hazardous-area certification levels.
Dynamic Specifications
| Sensitivity, ± 5% @25°C |
500 mV/g |
| Acceleration range |
10 g peak |
| Amplitude nonlinearity |
1% |
| Frequency response |
±10% : 0.4-1,500 Hz ± 3 dB : 0.2-3,700 Hz |
| Resonant frequency |
18 kHz |
| Transverse sensitivity, max |
±7% of axial |
| Temperature response |
-50°C: -8% +120°C: +5% |
Electrical Specifications
| Voltage source |
18-30 Vdc |
| Current regulating diode |
2-10 mA |
| Broadband electrical noise @ 2.5 Hz to 25 kHz |
12 μg |
| Spectral electrical noise @ 10 Hz |
2 μg/√Hz |
| Spectral electrical noise @ 100 Hz |
0.6 μg/√Hz |
| Spectral electrical noise @ 1000 Hz |
0.2 μg/√Hz |
| Output Impedance, max |
100 Ω |
| Bias output voltage |
10 Vdc |
| Grounding |
case isolated, internally shielded |
Related Models
- AM3100T2-Z2
- AM3100S2-Z2
- AP3500T2-Z1
- AP3500S2-Z1
- AM3100T2-Z0
- AM3100S2-Z0
