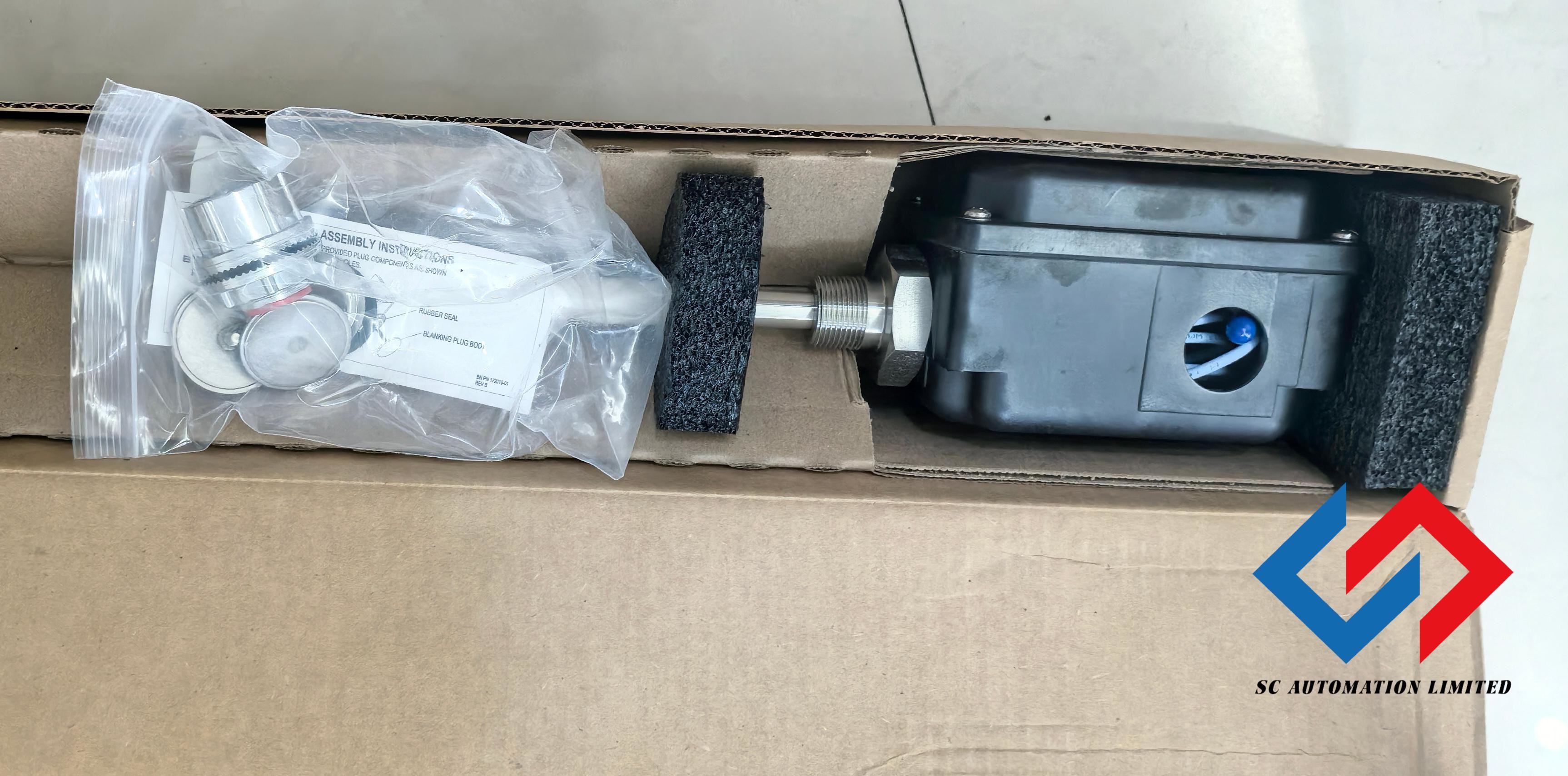

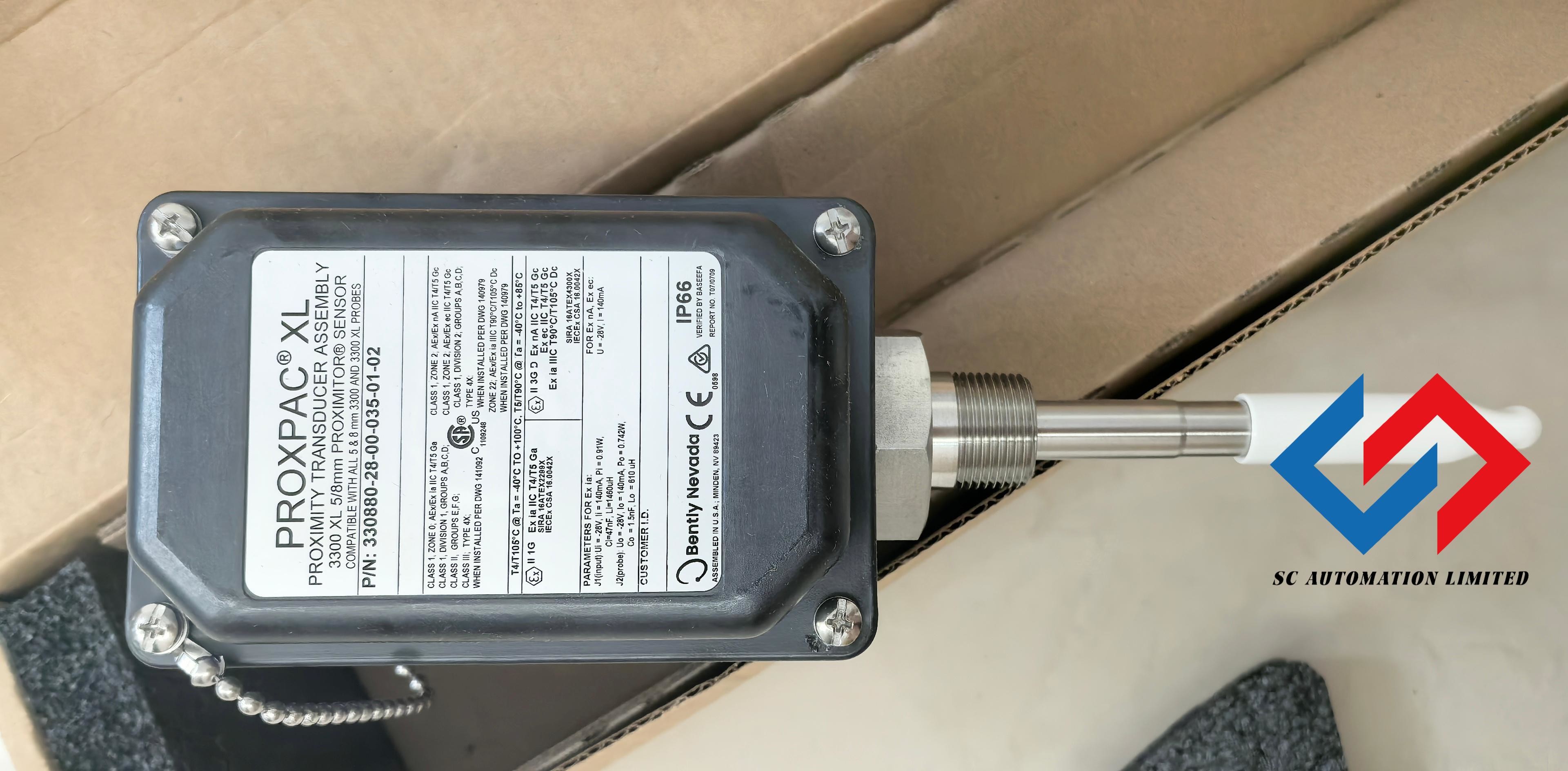

AISI 304 Stainless Steel Probe Case Bently Nevada PROXPAC XL Proximity Transducer Assembly 330880
Product Specifications
| Attribute |
Value |
| Proximitor Sensor Input |
3300 XL 8 mm Proximity Probe with a 1-metre cable length installed in the probe sleeve |
| Output resistance |
50 Ω |
| Probe Case Material |
AISI 304 stainless steel |
| Probe Connector |
Gold-plated brass ClickLoc connector |
| Operating Temperature |
-52°C to +100°C (-62°F to +212°F) |
| Sleeve O-Ring Material |
Neoprene |
Product Description

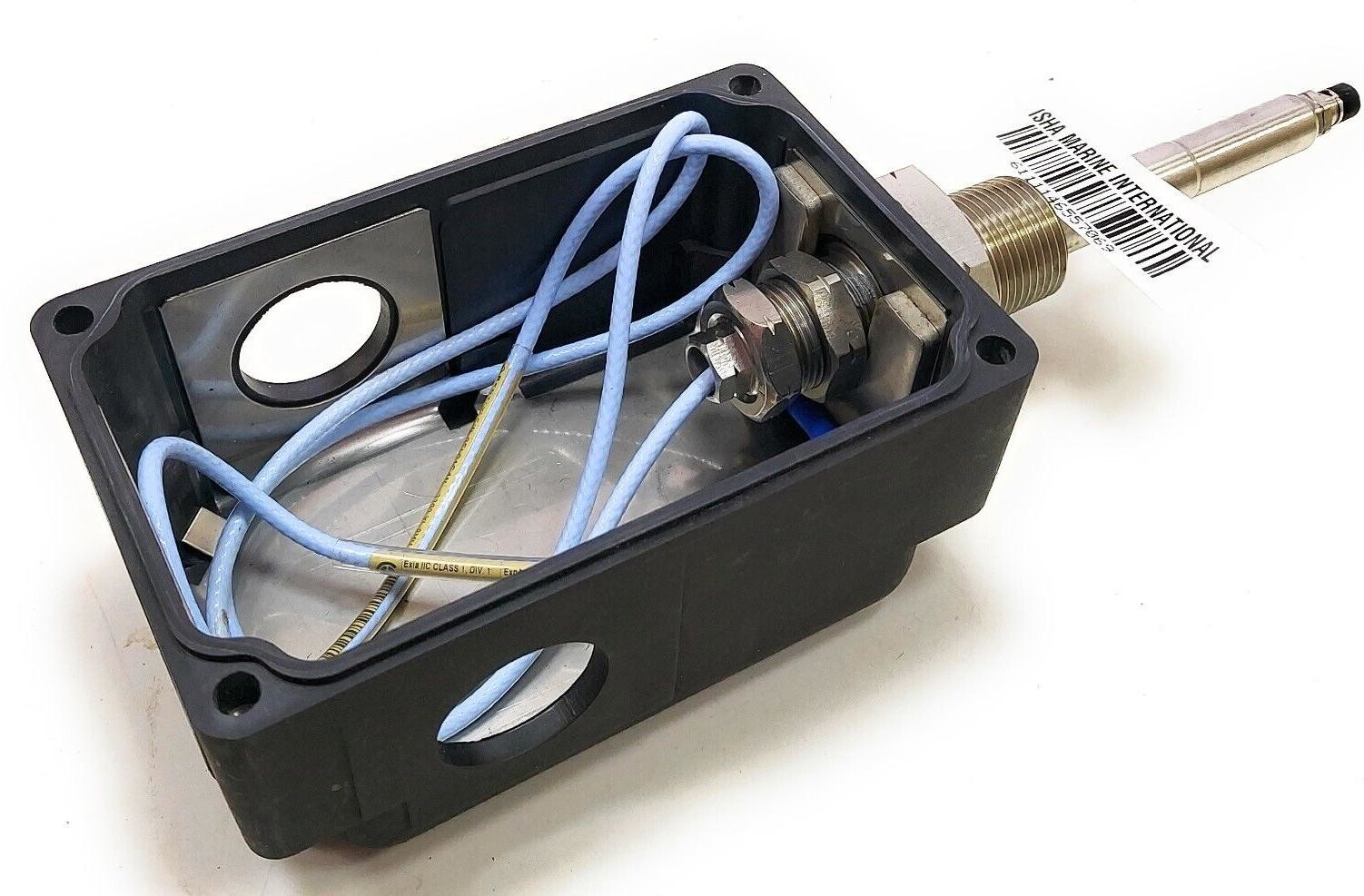

The Bently Nevada PROXPAC XL Proximity Transducer Assembly 330880 features a design similar to the 31000/32000 Proximity Probe Housing Assemblies, offering the same advantages for accessing and externally adjusting proximity probes. The PROXPAC XL Assembly includes its own 3300 XL Proximitor sensor in the housing cover, creating a completely self-contained proximity probe system.
Key benefits include:
- Eliminates the need for extension cables between probe and Proximitor sensor
- No separate Proximitor housing required
- Field wiring connects directly between monitors and PROXPAC XL Assemblies
Ordering Information
PROXPAC XL Proximity Transducer, English
330880-AA-BB-CCC-DD-EE
Configuration Options
A: Probe and Approvals Option
- 00 - No probe; Proximitor sensor without approvals
- 01 - No probe; Proximitor sensor with Multiple Approvals
- 16 - 3300 XL 8 mm probe without approvals
- 28 - 3300 XL 8 mm probe with Multiple Approvals
B: Standoff Adapter Option
- Order in increments of 0.5 in (13 mm)
- Minimum length: 1.5 in (38 mm)
- Maximum length: 7.5 in (191 mm)
- 00 - No standoff adapter
- 15 - 1.5 in (38 mm)
C: Probe Penetration Option
- For penetration lengths between 1.0 and 2.0 inches, counterbore may be required
- Order in increments of 0.1 in (2 mm)
- Minimum length: 1.0 in (25 mm)
- Maximum length: 30 in (762 mm)
- 000 - No probe sleeve
- 037 - 3.7 in (94 mm)
- 224 - 22.4 in (569 mm)
D: Fittings Option
- 00 - No fittings; two plugs and two washers
- 01 - One 3/4-14 NPT fitting, two plugs
- 02 - Two 3/4-14 NPT fittings, one plug
- 03 - One 3/4-14 NPT fitting, one 3/4-14 NPT to 1/2-14 NPT SST reducer and two plugs
E: Mounting Thread Option
- 00 - No outer sleeve assembly
- 02 - 3/4-14 NPT (Required if ordering Standoff Adapter Option)
- 05 - 7/8-14 UNF-2A
