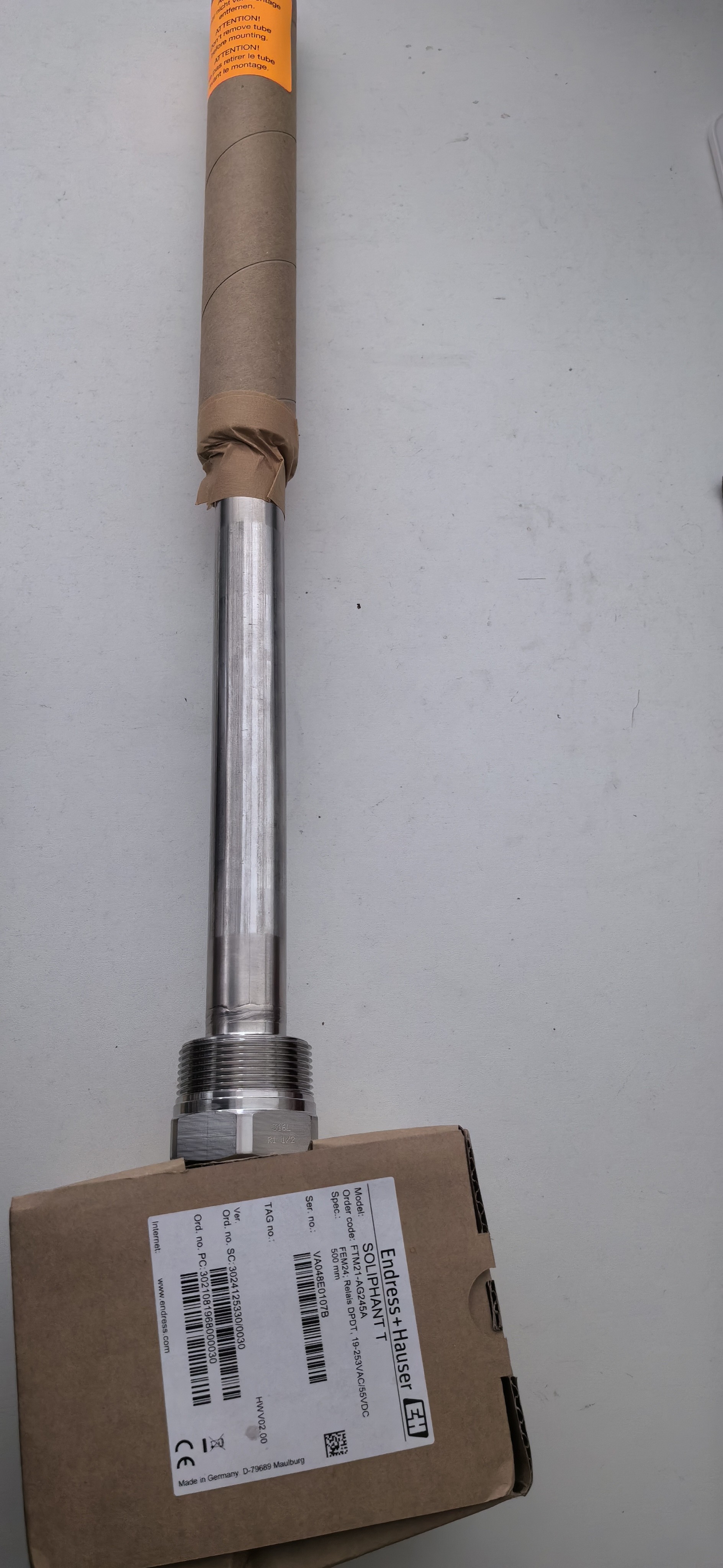

Name: Endress Hauser Soliphant FTM21-AG245A Vibronic Point Level Switch
Brand: SC Automation Limited
SKU: FTM21-AG245A
Availability: InStock

Endress Hauser Soliphant FTM21-AG245A Vibronic Point Level Switch

Basic Information

Place of Origin:	Germany
Brand Name:	Endress+Hauser
Certification:	ATEX, FM, CSA, CSA C/US, IEC Ex, NEPSI, INMETRO, EAC
Model Number:	FTM21-AG245A

Minimum Order Quantity:	1 piece
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	on request
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

Supply / Communication:	10 - 45 VDC 19 - 253 VAC Relay DC PNP 10 - 45 V	Measuring Principle:	Vibration Solids
Application:	Point Level Switch For Fine Grained Solids Grain Size <= 25 Mm (<= 0.98 In) Single Rod No Calibration Required Not Affected By Build-up Or External Vibration Robust Switch Value Visible From Outside Tube Extension	Ambient Temperature:	-40°C ... 70°C (-40°F ... 160°F)
Min. Density Of Medium:	200 G/l	Main Wetted Parts:	316L
Highlight:	Endress Hauser Instruments FTM21-AG245A , Endress Hauser Instruments 200g/l , Vibronic Point level detection

Endress Hauser Vibronic Point Level Detection Soliphant FTM21-AG245A

Product Specifications

Attribute	Value
Supply / Communication	10 - 45 VDC 19 - 253 VAC relay DC PNP 10 - 45 V
Measuring principle	Vibration Solids
Application	Point level switch for fine grained solids Grain size ≤ 25 mm (≤ 0.98 in) Single rod No calibration required Not affected by build-up or external vibration Robust Switch value visible from outside Tube extension
Ambient temperature	-40°C ... 70°C (-40°F ... 160°F)
Min. density of medium	200 g/l
Main wetted parts	316L

Detailed Description

The Soliphant FTM21-AG245A is a point level switch designed for applications with fine-grained or coarse-grained, non-fluidized bulk solids. Its versatile design allows for a wide range of industrial applications, including those requiring explosion protection in hazardous areas.

Key Features

No calibration required - easy commissioning (plug and play)
Measurement not affected by build-up or external vibration
No mechanically moved parts - maintenance-free operation
Abrasion-resistant 316L sensor material, suitable for building materials
Plastic housing with cover featuring sight glass for external switch status visibility
Aluminium housing option available
Unaffected by flow noises
Available with international explosion protection certificates

Technical Parameters

Process connections: Threads (R 1", R 1 1/2", 1 1/4" NPT, 1 1/2" NPT)
Temperature range: -40 to +150°C (-40 to +300°F)
Pressure range: -1 to +25bar (-14.5 to +360psi)
Sensor length options: 500mm (20"), 1,000mm (40"), 1,500mm (60")
Sensor material: 316L stainless steel
Certifications: ATEX, FM, CSA, CSA C/US, IEC Ex, NEPSI, INMETRO, EAC
