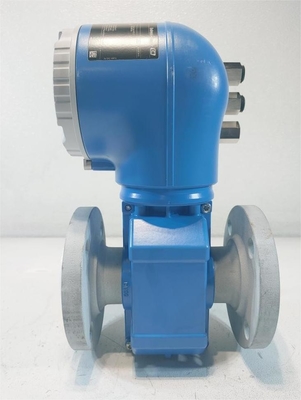

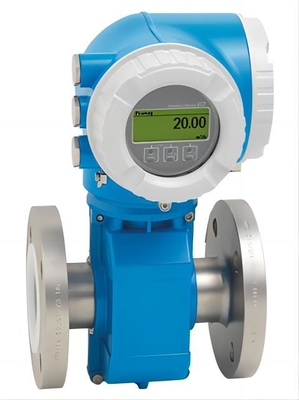

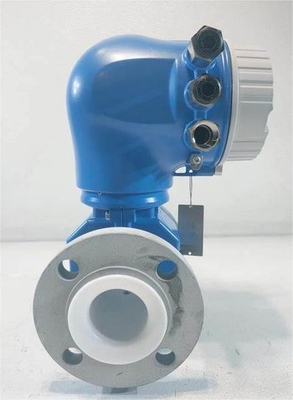

Mass Flow Endress Hauser Promag P 300 Electromagnetic Flowmeter DN15-600

Large Image : Mass Flow Endress Hauser Promag P 300 Electromagnetic Flowmeter DN15-600

Product Details:

Place of Origin:	Germany
Brand Name:	Endress+Hauser
Certification:	CE
Model Number:	5P3B50-AAIBAEAFAAED5K0AA2+LA(5P3B50-VXH9/0)

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	on request
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

Mass Flow Endress Hauser Promag P 300 Electromagnetic Flowmeter DN15-600

Description

Nominal Diameter Range:	DN 15 To 600 (½ To 24")	Measured Variables:	Volume Flow, Conductivity, Mass Flow
Max. Process Pressure:	PN 40, Class 300, 20K	Degree Of Protection:	Standard: IP66/67, Type 4X Enclosure
Inputs:	Status Input 4-20 MA Input	Power Supply:	DC 24 V AC 100 To 230 V AC 100 To 230 V / DC 24 V (non-hazardous Area)
Highlight:	Mass Flow endress hauser promag p 300 , promag p300 endress hauser flowmeter , 5P3B50 endress hauser promag p300

Endress+Hauser Proline Promag P 300 Electromagnetic Flowmeter 5P3B50

Product Specifications

Attribute	Value
Nominal diameter range	DN 15 to 600 (½ to 24")
Measured variables	Volume flow, conductivity, mass flow
Max. process pressure	PN 40, Class 300, 20K
Degree of protection	Standard: IP66/67, Type 4X enclosure
Inputs	Status input 4-20 mA input
Power supply	DC 24 V AC 100 to 230 V AC 100 to 230 V / DC 24 V (non-hazardous area)

Product Overview

The Endress+Hauser Proline Promag P 300 electromagnetic flowmeter 5P3B50 is designed for chemical and process applications involving corrosive liquids and high medium temperatures. Featuring a compact transmitter, the Promag P 300 offers exceptional operational flexibility and system integration capabilities, including single-side access, remote display, and enhanced connectivity options. Its Heartbeat Technology ensures continuous compliance and process safety.

Key Features

Bidirectional measuring principle virtually independent of pressure, density, temperature, and viscosity
Ideal for chemical and process applications with corrosive liquids and high temperatures
Maximum nominal diameter: DN 600 (24")
Comprehensive Ex approvals
PTFE or PFA liner options
Compact dual-compartment housing with up to 3 I/Os
Backlit display with touch control and WLAN access
Optional remote display available

Related Models

53P1Z-EH2B1BA0ABAA Successor type:5P3B1Z-BDDBAEAFAAED3S2BA2	5P3B1Z-DEV5/0	80E08-AD2SAABAAAAA Successor type: 8E3B08-BDEBAEAFAASAD2SHA2	8E3B08-R5K1/0
50P50-EA2A1AA0BAAA Successor type:5P3B50-AAIBAEAFADED5K2AA2	5P3B50-2JKV5/0	50W25-UA0A1AA0A4AA Successor type: 5W4C25-AAELHA0AUD5K0A	5W4C25-5NT3/0
80E08-AD2SAABAABAA Successor type:8E3B08-BDDBAEAFAASAD2SHA2	8E3B08-R5J6/0	50W1H-HCOA1AA0AAAA Successor type: 5W4C1H-AAELHA0AHD3K0A	5W4C1H-L7L0/0
