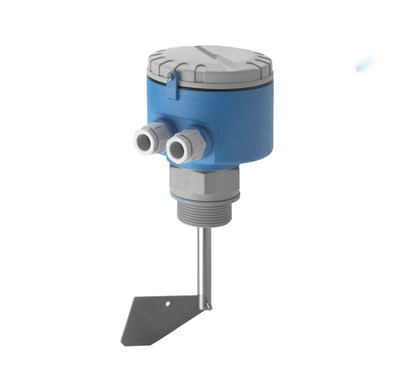

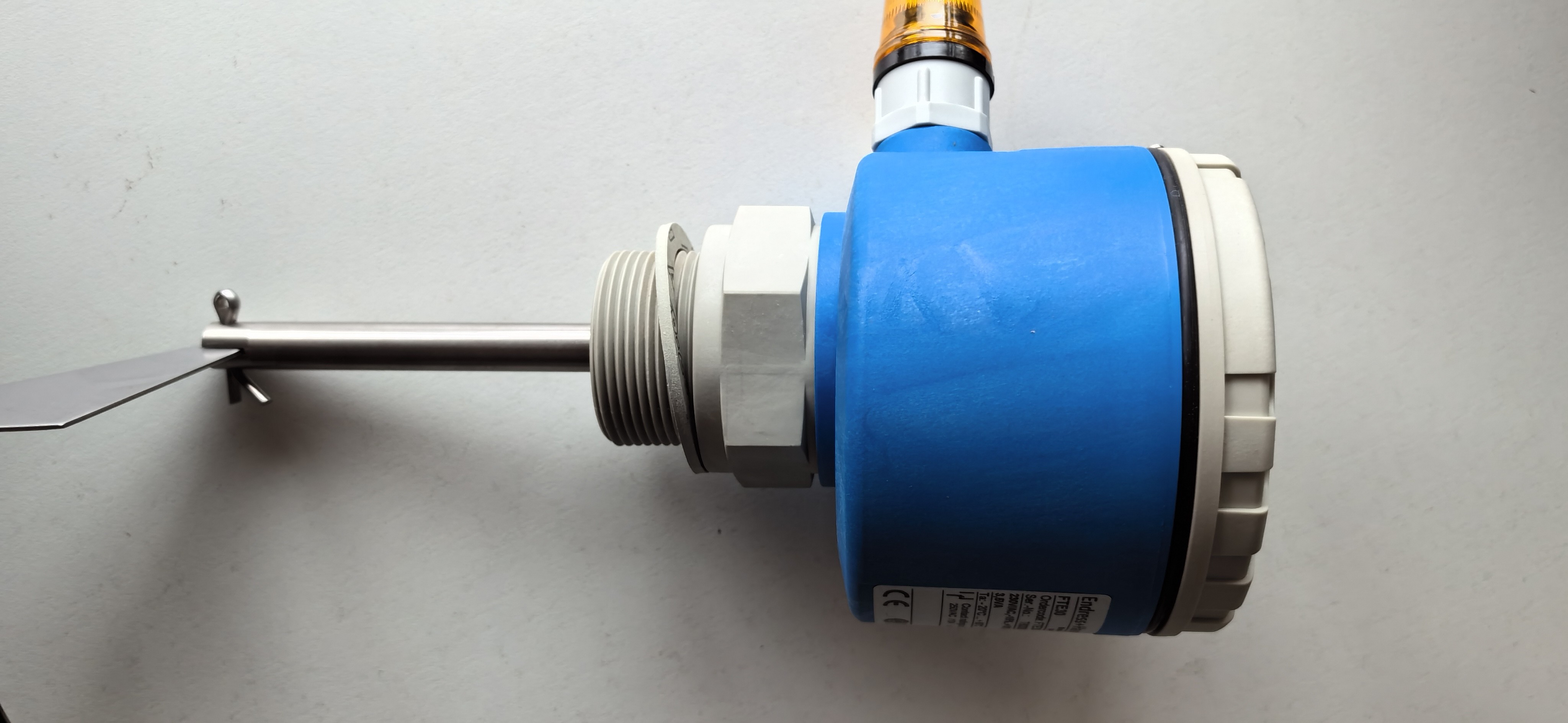

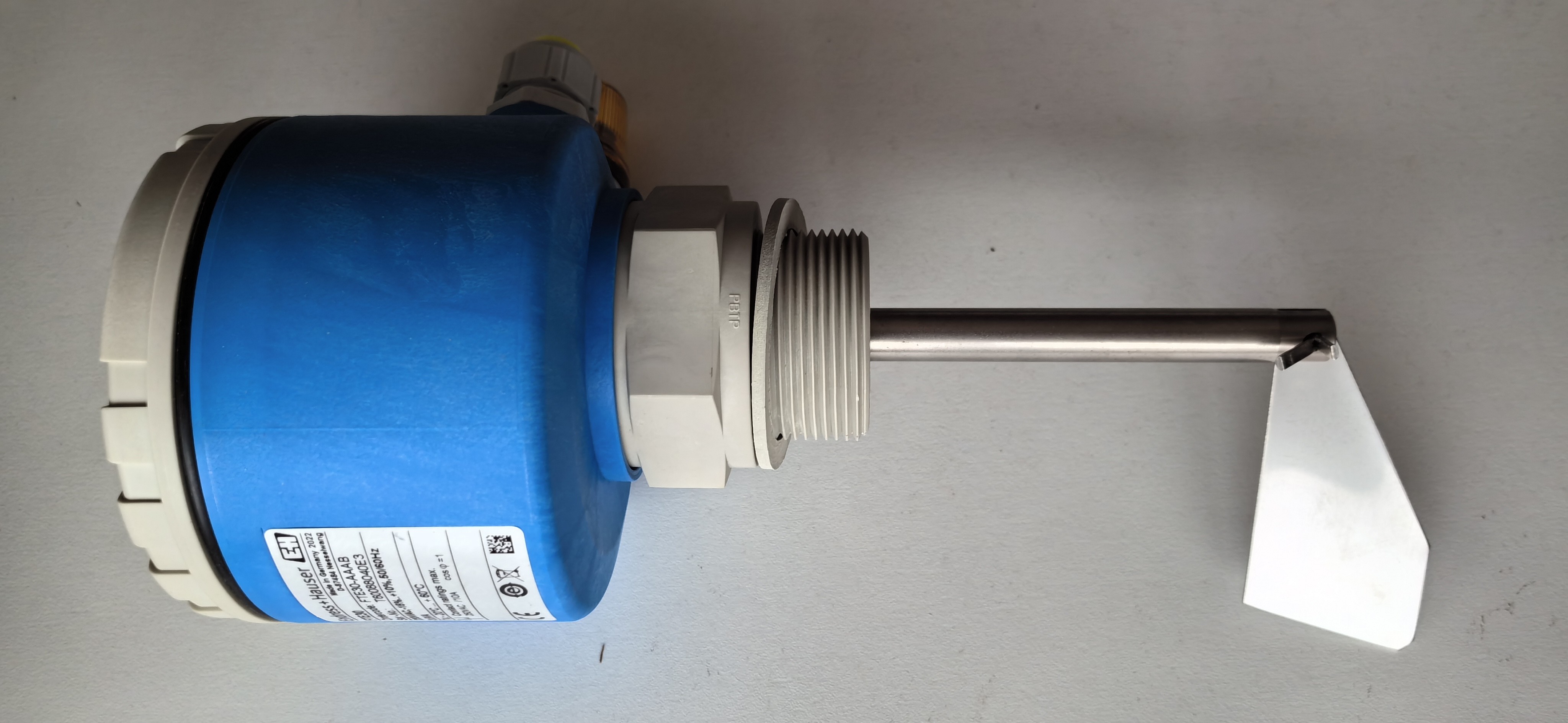

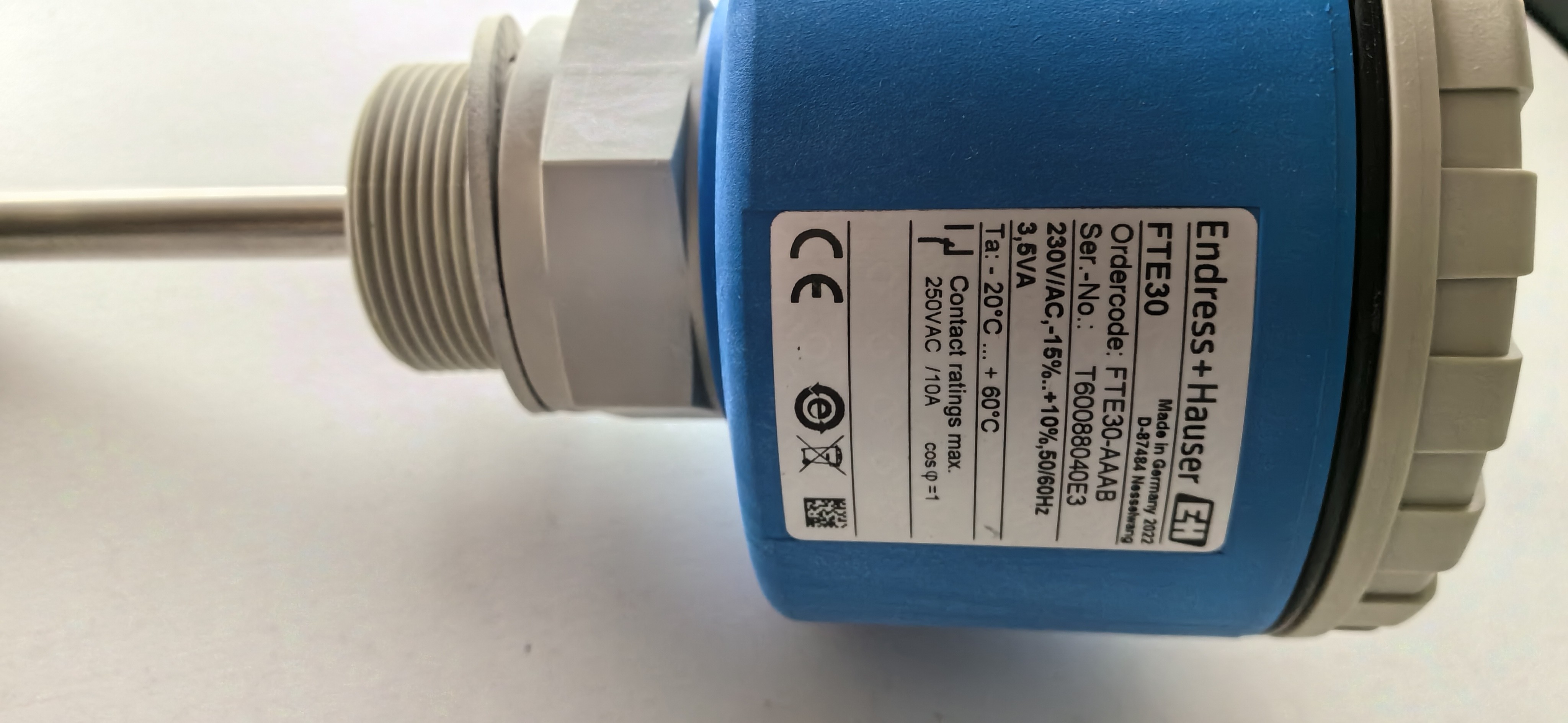

Endress Hauser Fte30 Soliswitch Rotary Paddle Level Switch 230VAC

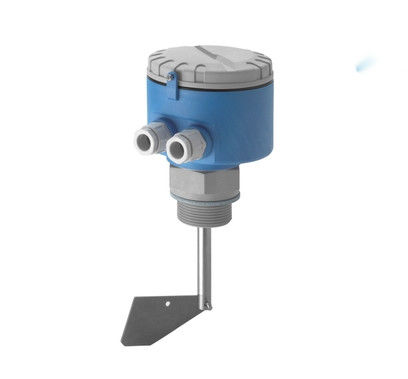

Large Image : Endress Hauser Fte30 Soliswitch Rotary Paddle Level Switch 230VAC

Product Details:

Place of Origin:	Germany
Brand Name:	Endress+Hauser
Certification:	CE
Model Number:	FTE30-AAAB

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	12-14weeks
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

Endress Hauser Fte30 Soliswitch Rotary Paddle Level Switch 230VAC

Description

Power Supply; Output:	230VAC, Relay 250VAC, 100mA -10A	Process Connection:	G1-1/2 Male Thread, PBT
Version:	Shaft 100mm	Paddle; Additional Option:	303; Signal Lamp; Non-hazardous
Net Weight:	0.950 Kilogram	Country Of Origin:	DE
Highlight:	endress hauser fte30 soliswitch , rotary paddle level switch 230VAC , 230VAC soliswitch fte30

Endress+Hauser Point Level Switch Soliswitch FTE30 Rotary Paddle Switch

Product Specifications

Attribute	Value
Power Supply; Output	230VAC, relay 250VAC, 100mA -10A
Process Connection	G1-1/2 male thread, PBT
Version	Shaft 100mm
Paddle; Additional Option	303; signal lamp; non-hazardous
Net weight	0.950 Kilogram
Country of origin	DE

Product Description

The economical Soliswitch FTE30 is a paddle switch for point level detection in bulk materials. Its robust polymer housing and compact design makes it an ideal sensor for full, empty and demand alarm in applications with bulk solids. The optimized materials make the unit outstandingly robust and therefore suitable for use in dust explosive areas.

Process connections: G 1½", PBT; G 1½", 1.4305; Reinforced shaft G 1½", 1.4305
Sensor length: Different standard lengths between 100 mm (4") and 600 mm (24"), additional rope length of 2,000 mm (80") (can be shortened)
Temperature: -20 to +80 °C (-4 to +170 °F)
Pressure: 0.5 to 1.8 bar (7 to 25 psi)

Technical Specifications

Measuring principle	Paddle
Specialities	Hinged paddle
Supply / Communication	230 VAC 50/60 Hz 115 VAC 50/60 Hz 48 VAC 50/60 Hz 24 VAC 50/60 Hz 20 bis 28 VDC
Ambient temperature	-20 °C ... 60 °C (-4 °F ... 140 °F)
Process temperature	-20 °C ... 80 °C (-4 °F ... 170 °F)
Process pressure / max. overpressure limit	0.5 bar to 1.5 bar (7 psi to 22 psi)
Min. density of medium	>= 100 g/l
Main wetted parts	Shaft: 1.4305 Paddle: 1.4301
Process connection	G 1 1/2", PBT G 1 1/2", 1.4305 Reinforced shaft G 1 1/2", 1.4305
Sensor length	100 mm (4") 200 mm (8") 300 mm (12") 400 mm (16") 500 mm (20") 600 mm (24") Rope length of approx 2000 mm (80"), can be shortened
Communication	Micro switch with changeover contact max. 10 A/250 VAC
Certificates / Approvals	No approvals available
Options	Relay
Application limits	max. grain size 50 mm (2")
