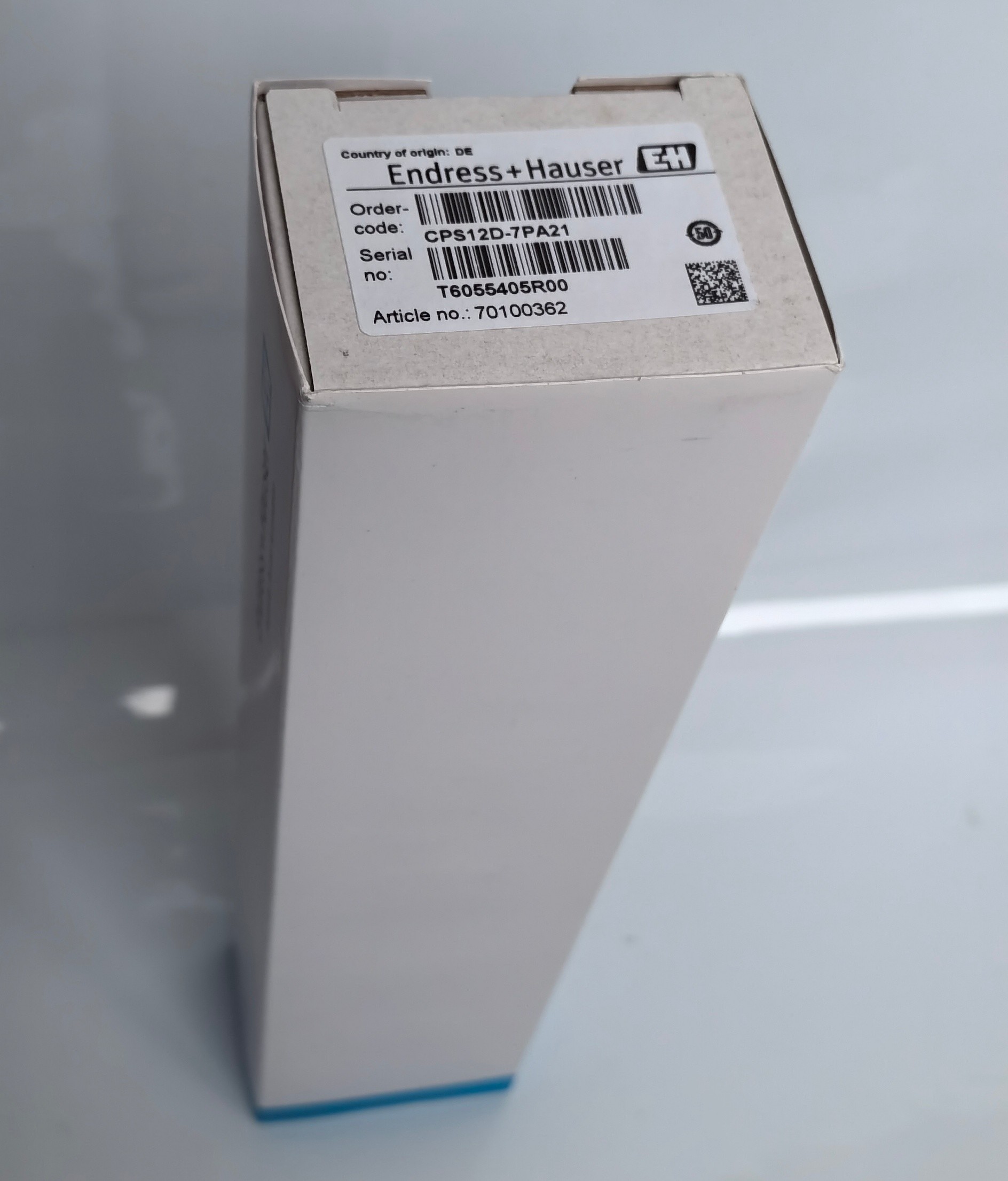

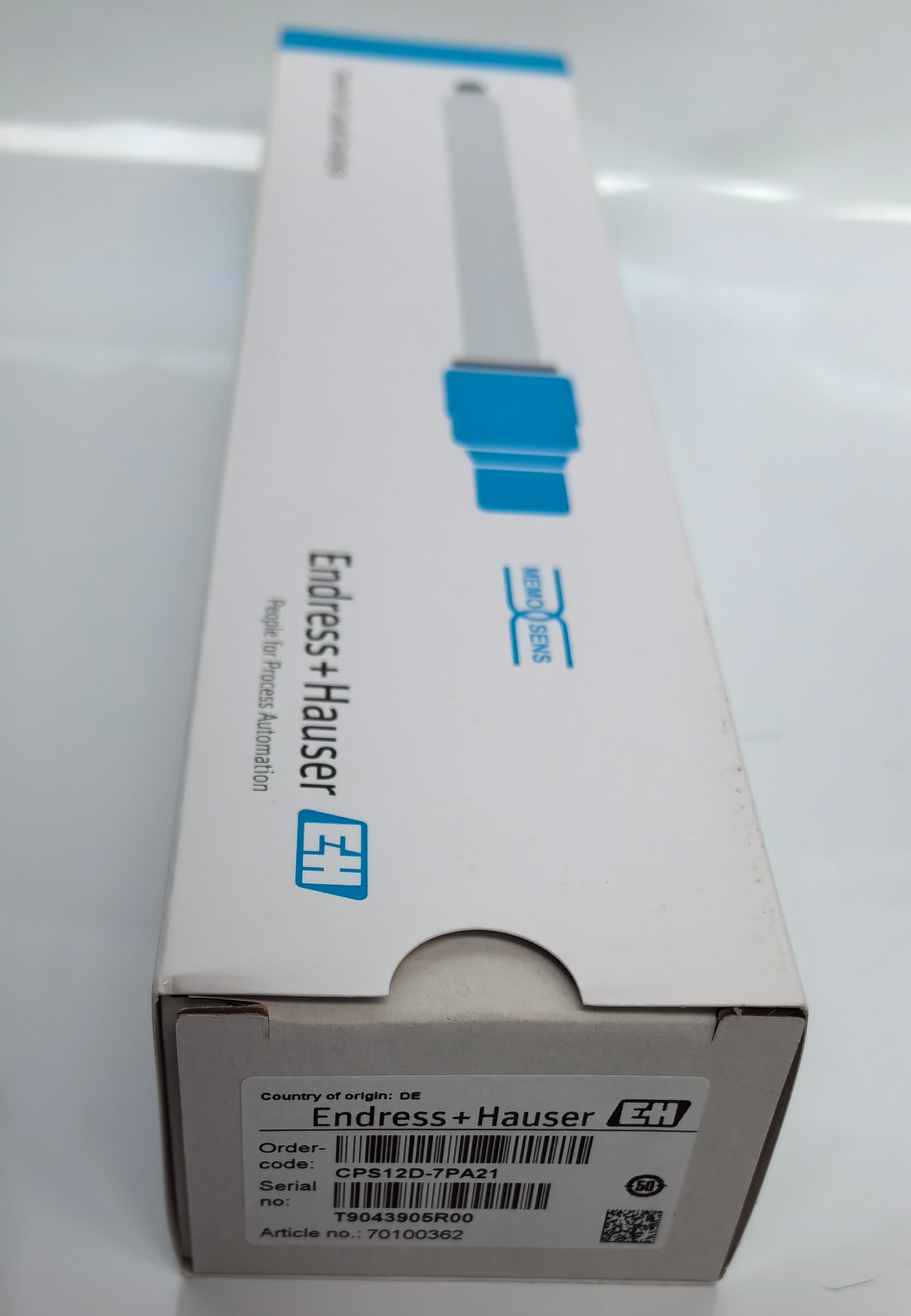

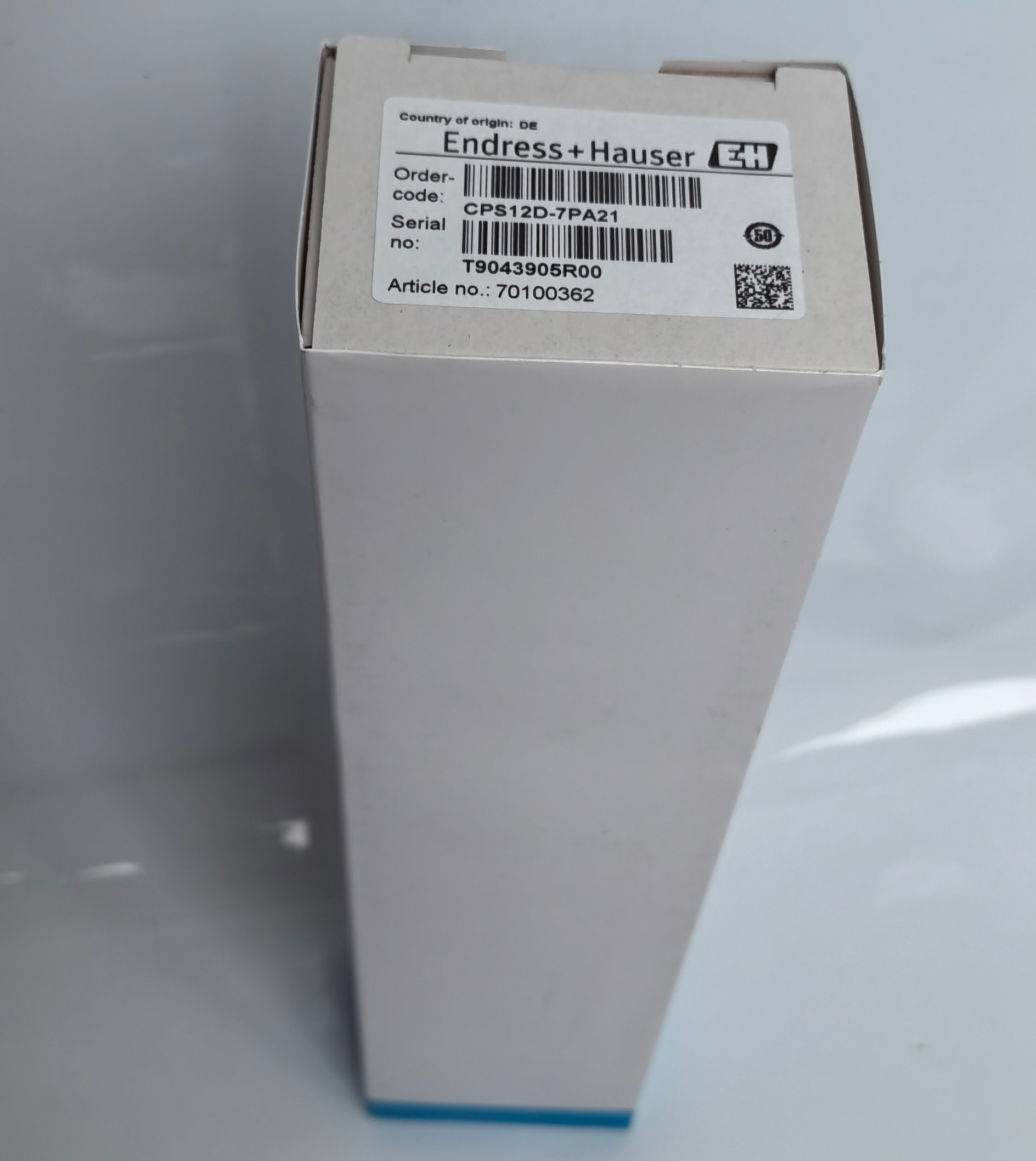

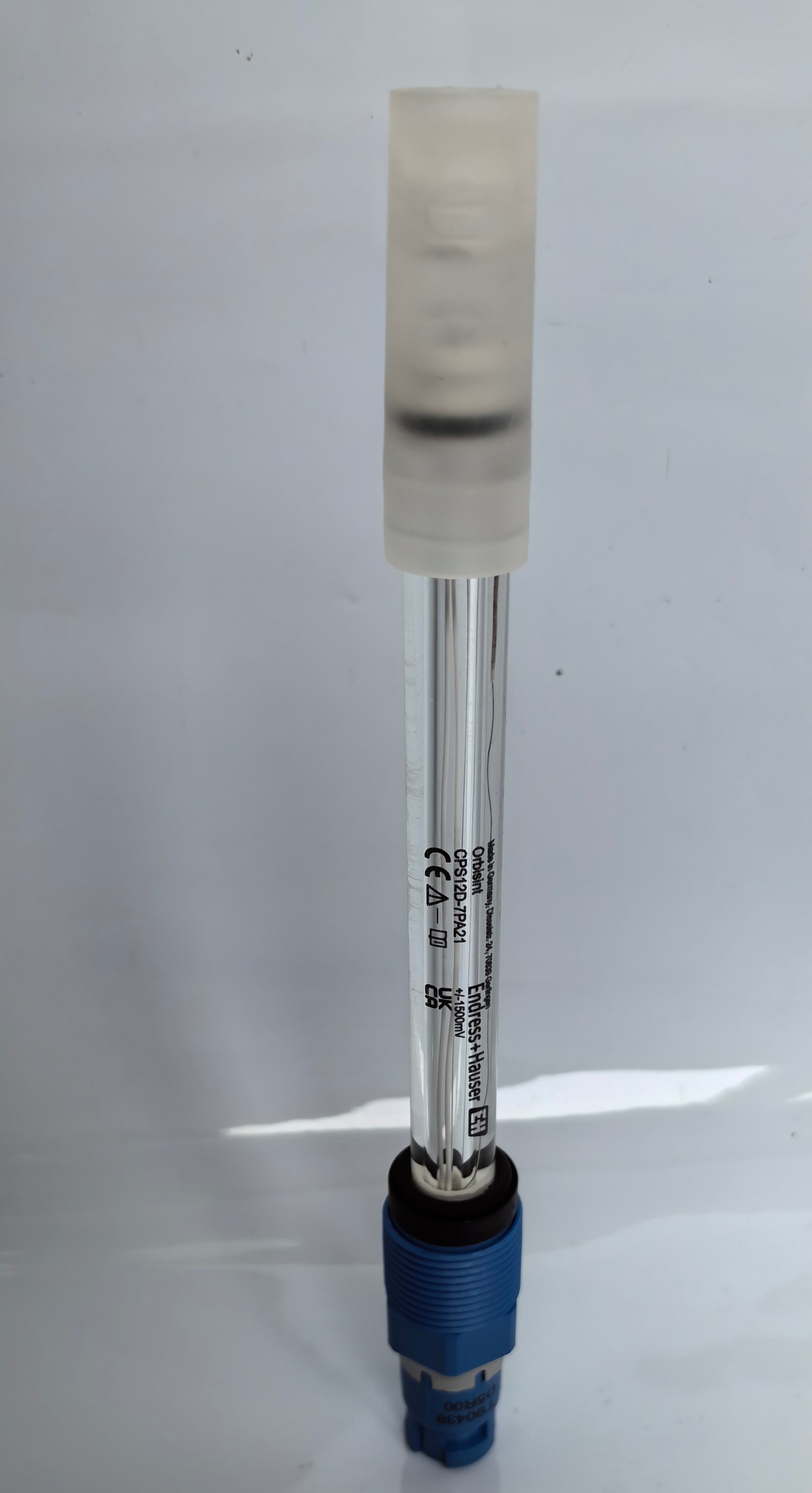

Endress Hauser Digital ORP Sensor CPS12D-7PA21 12mm Memosens

Endress Hauser Digital ORP Sensor CPS12D-7PA21 12mm Memosens
Endress Hauser Digital ORP Sensor CPS12D-7PA21 12mm Memosens Endress Hauser Digital ORP Sensor CPS12D-7PA21 12mm Memosens Endress Hauser Digital ORP Sensor CPS12D-7PA21 12mm Memosens Endress Hauser Digital ORP Sensor CPS12D-7PA21 12mm Memosens

Large Image :  Endress Hauser Digital ORP Sensor CPS12D-7PA21 12mm Memosens

Product Details:
Place of Origin: Germany
Brand Name: Endress+Hauser
Certification: With ATEX, IECEx, CSA C/US, NEPSI, Japan Ex and INMETRO approvals for use in hazardous areas Zone 0, Zone 1 and Zone 2
Model Number: CPS12D-7PA21
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: standard carton packing
Delivery Time: on request
Payment Terms: T/T
Supply Ability: 100pcs per month
Contact Now Chat Now

Endress Hauser Digital ORP Sensor CPS12D-7PA21 12mm Memosens

Description
Material: Sensor Shaft: Glass To Suit Process ORP Measuring Element: Platinum Or Gold Metal Lead: Ag/AgCl Aperture: Ring-shaped PTFE Diaphragm, Sterilizable O-ring: FKM Process Coupling: PPS Fibre-glass Reinforced Nameplate: Ceramic Metal Oxide Dimension: Diameter: 12 Mm (0.47 Inch) Shaft Lengths: 120, 225 And 360 Mm (4.72, 8.86 And 14.17 Inch)
Measuring Principle: Gel Compact Electrode With Teflon Junction And Double Gel Reference Measuring Part As Gold-pin Or Platinum Ring Application: Long-term Monitoring And Limit Control In Processes With Stable Process Conditions Water Treatment
Characteristic: Digital ORP Sensor For Standard Applications In Process Technology And Environmental Engineering With Dirt-repellent PTFE Junction And Integrated Temperature Sensor Design: All Shaft Lengths With Temperature Sensor Advanced Gel Technology
Process Temperature: -15 To 135 °C (5 To 275 °F) Temperature Sensor: NTC 30K
Highlight:

Digital endress and hauser flow meter

,

ORP sensor 12mm

,

CPS12D 7PA21

Digital Endress And Hauser Flow Meter ORP Sensor 12mm Memosens CPS12D-7PA21
Product Specifications
Attribute Value
Material Sensor shaft: Glass to suit process ORP measuring element: Platinum or gold Metal lead: Ag/AgCl Aperture: Ring-shaped PTFE diaphragm, sterilizable O-ring: FKM Process coupling: PPS fibre-glass reinforced Nameplate: ceramic metal oxide
Dimension Diameter: 12 mm (0.47 inch) Shaft lengths: 120, 225 and 360 mm (4.72, 8.86 and 14.17 inch)
Measuring principle Gel compact electrode with teflon junction and double gel reference Measuring part as gold-pin or platinum ring
Application Long-term monitoring and limit control in processes with stable process conditions Water treatment
Characteristic Digital ORP sensor for standard applications in process technology and environmental engineering with dirt-repellent PTFE junction and integrated temperature sensor
Design All shaft lengths with temperature sensor Advanced gel technology
Process temperature -15 to 135 °C (5 to 275 °F)
Temperature sensor NTC 30K
Detailed Description

The Endress Hauser Digital ORP sensor Memosens CPS12D-7PA21 is designed for reliable measurement in demanding industrial environments. Key specifications include:

  • Measurement range: -1500 mV to +1500 mV
  • Process pressure: 0.8 to 17 bar (11.6 to 246.5 psi) absolute
  • Ex certification: ATEX, IECEx, CSA C/US, NEPSI, Japan Ex and INMETRO approvals
  • Connection: Inductive, digital connection head with Memosens 2.0 technology
  • Ingress protection: IP68
Field of Application

The Memosens CPS12E is the digital all-round ORP sensor, measuring reliably in harsh applications or hazardous areas. Designed for low maintenance and long operating life, it offers excellent value.

  • Long-term monitoring applications:
    • Chemical industry
    • Pulp & paper industry
    • Power plants
    • Incineration plants
  • Water & wastewater treatment:
    • Drinking water
    • Cooling water
    • Well water
    • Wastewater treatment plants
Key Benefits
  • Robust, low maintenance design with dirt-repellent PTFE junction
  • Suitable for harsh applications with pressure stability up to 17 bar
  • Memosens 2.0 technology enables extended data storage for predictive maintenance
  • Non-contact, inductive signal transmission for increased process safety
  • Lab calibration and fast sensor replacement minimize downtime
Related Part Numbers
FMU30-AAHEAAGGF CPS11D-7AA21 CPS71D-7TB21 CPS12D-7NA21 CPM223-PR0005 CUS52D-AA1AA3 FTL31-AA4U3BAWSJ CPS11D-7AS21 COS61-A2F0 CPS12D-7PA21 CPF81D-7LH11 CPS11D-7BA2G CPM253-PR0005 51518598 CM42-MEA000EAZ00 CUS51D-AAD1A3 CM442-AAM2A2F010A CM442-AAM1A2F011A+AK CYK10-G101 CYK10-G051 COY31-Z
