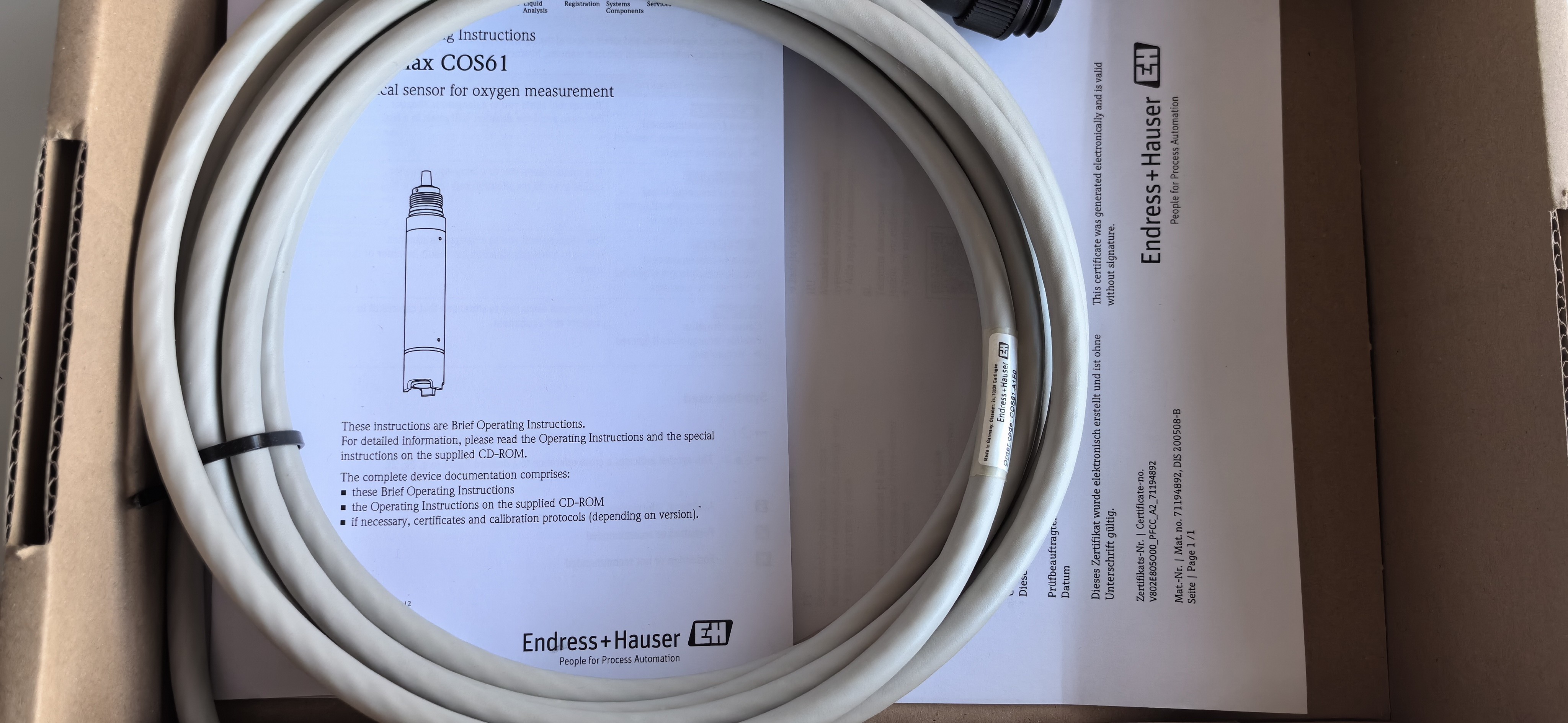

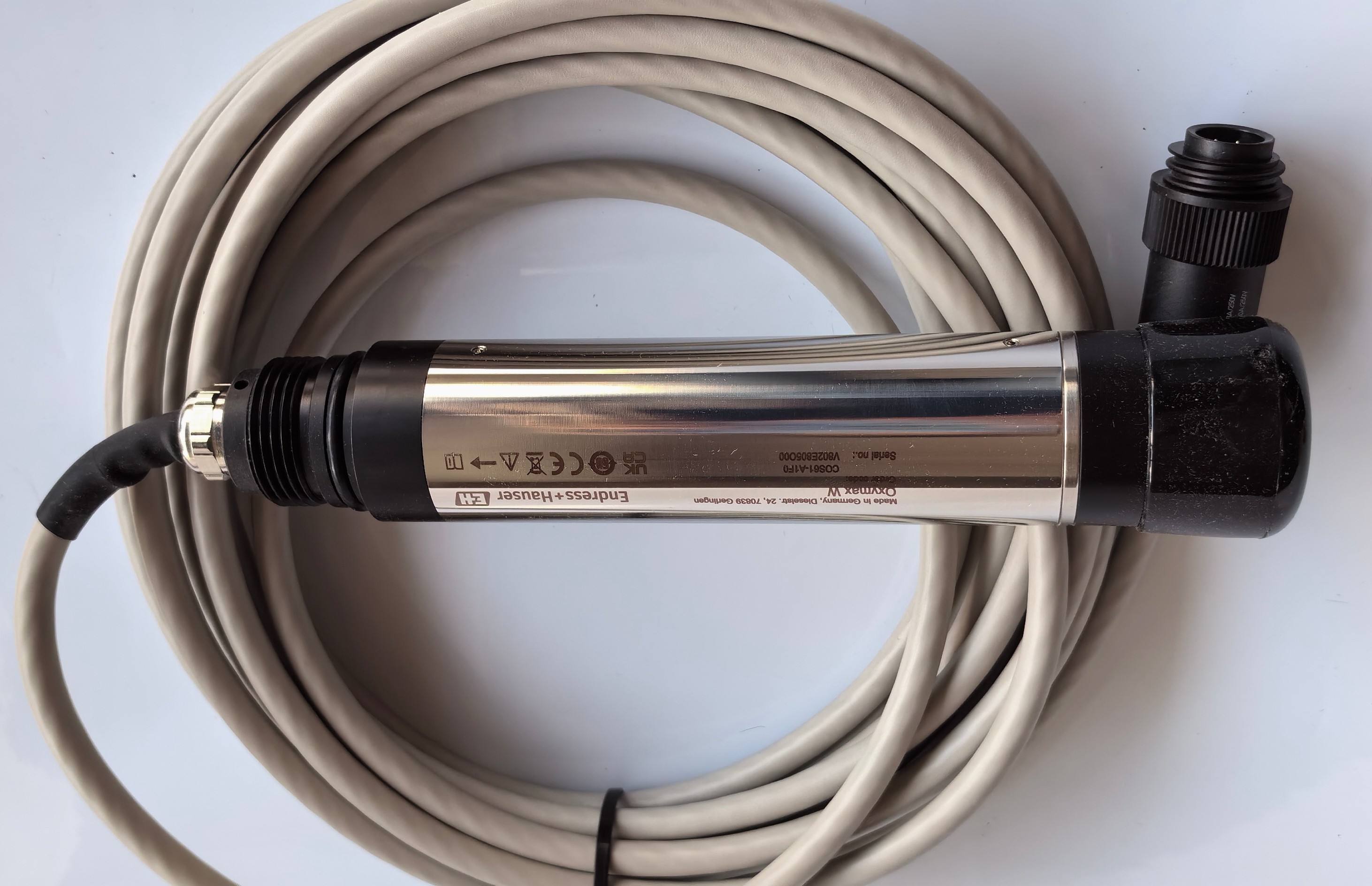

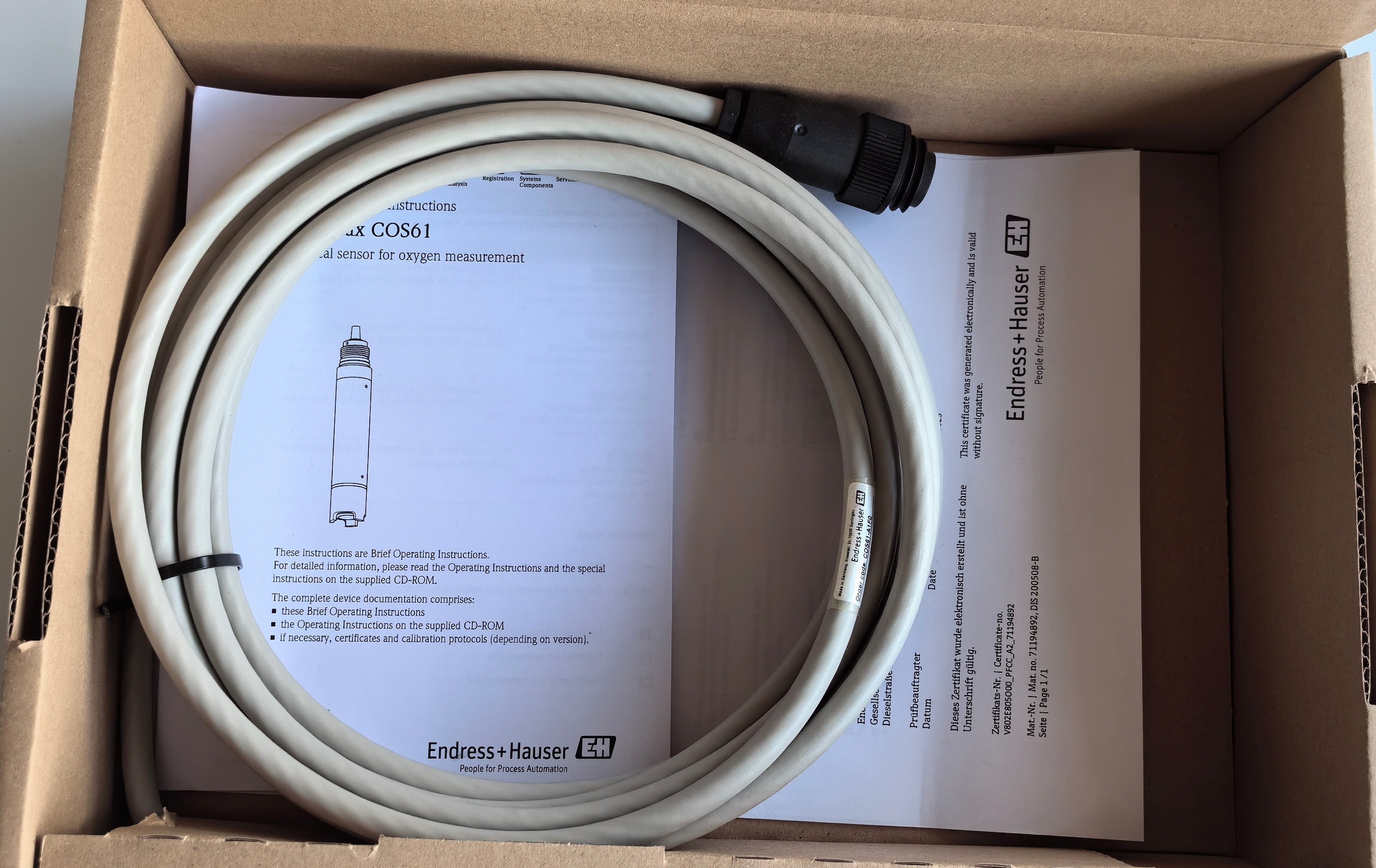

Endress Hauser Dissolved Oxygen Sensor Meter Oxymax COS61-A1F0
| Material |
Sensor body: stainless steel 1.4571
Membrane cap: POM |
| Dimension |
Diameter: 40mm (1.56inch)
Length: 220mm (8.58inch) |
| Measuring principle |
Optical oxygen measurement |
| Application |
Aeration tank, river monitoring, water treatment, fish farming |
| Characteristic |
Digital, optical (luminescence) dissolved oxygen measurement. No flow needed - measurement possible in still water |
| Design |
Calibration data saved in sensor. High degree of EMC protection |
| Process temperature |
-5 to 60°C (20 to 140°F) |
| Temperature sensor |
NTC temperature sensor, 0 to 50°C (32 - 122°F) |
Product Description
Endress Hauser Dissolved Oxygen Sensor Oxymax COS61-A1F0
Specifications
- Measuring principle: Optical oxygen measurement
- Application: Aeration tank, river monitoring, water treatment, fish farming
- Characteristic: Digital, optical (luminescence) dissolved oxygen measurement. No flow needed - measurement possible in still water
- Measurement range: 0mg/l ... 20mg/l; 0%SAT ... 200%SAT; 0 ... 400hPa
- Process temperature: -5°C ... 60°C (23 - 140°F)
- Process pressure: max. 10bar (145psi)
- Connection: Process connection: G1" thread; Cable connection: fixed cable or TOP68 plug-in-head
Field of Application
Oxymax COS61 is a high-performance oxygen sensor that offers fast, accurate and drift-free measurement. It supports your process with low maintenance, high availability and easy handling. The sensor's long-term stable fluorescence layer is exclusively oxygen-selective (interference-free), ensuring consistently reliable measurement.
Oxymax COS61 measures the dissolved oxygen concentration in:
- Wastewater treatment plants:
- O2 control in the aeration basin
- Process water treatment and monitoring
- Water works:
- Status monitoring of drinking water (oxygen enrichment, corrosion protection, etc.)
- Water quality monitoring in rivers, lakes or seas
- Utilities of all industries:
- O2 control in the biological treatment
- Process water treatment and monitoring
- Fish farming:
- O2 control for optimum growth conditions
Benefits
- Minimum maintenance, maximum availability
- Fast, drift-free measurement for aeration control and process monitoring
- Long-term stability for increased process safety
- High-performing in all aeration processes (SBR, Anamox, etc.)
- Chemical-free: no electrolyte handling
- Easy measuring point changeover to optical technology compatible with COS31 and COS41
