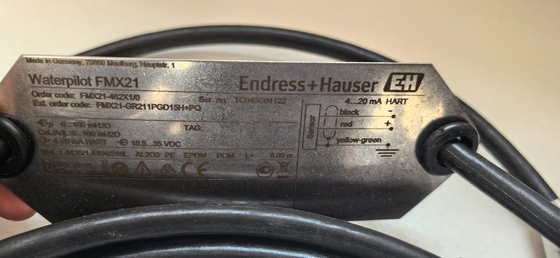

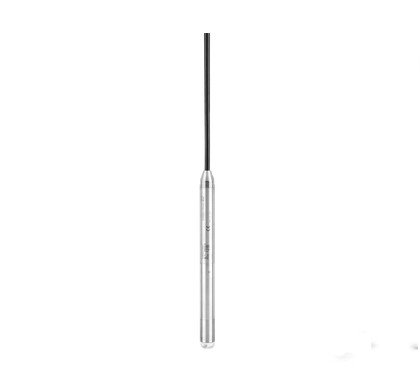

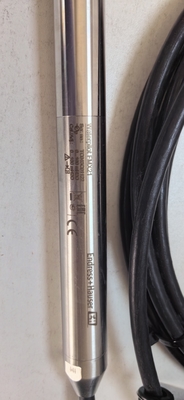

Standard Endress Hauser Waterpilot FMX21 Hydrostatic Level Probe With Ceramic Cell

Large Image : Standard Endress Hauser Waterpilot FMX21 Hydrostatic Level Probe With Ceramic Cell

Product Details:

Place of Origin:	Germany
Brand Name:	Endress+Hauser
Certification:	CE
Model Number:	FMX21-GR211PGD15H+PQ(FMX21-462X1/0)

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	12-14weeks
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

Standard Endress Hauser Waterpilot FMX21 Hydrostatic Level Probe With Ceramic Cell

Description

Approval:	Non-hazardous Area + EAC Marking	Output:	4-20mA HART
Probe Tube:	316L, D=22mm/0.87in	Sensor Range:	10bar/1MPa/150psi Gauge, 100mH2O/333ftH2O/4000inH2O
Reference Accuracy:	Standard	Calibration; Unit:	Sensor Range; Mm/mH2O
Highlight:	Endress Hauser Waterpilot FMX21 , FMX21 Hydrostatic Level Probe , Ceramic Cell Endress Hauser Waterpilot

Endress Hauser Waterpilot FMX21 Compact Probe With Ceramic Cell For Hydrostatic Level Measurement

Product Specifications

Attribute	Value
Approval	Non-hazardous area + EAC marking
Output	4-20mA HART
Probe Tube	316L, d=22mm/0.87in
Sensor Range	10bar/1MPa/150psi gauge, 100mH2O/333ftH2O/4000inH2O
Reference Accuracy	Standard
Calibration; Unit	Sensor range; mm/mH2O

Product Description

The Waterpilot FMX21 transmitter with capacitive, oil-free ceramic measuring cell is designed for hydrostatic level measurement in process and environmental applications. Featuring HART output, this device allows for freely adjustable measuring ranges and supports density-compensated level measurement.

Key Features

Certified for drinking water applications
Integrated temperature measurement
Available versions for wastewater, sludge, and saltwater applications
Process connections: Suspension clamp, cable gland
Temperature range: -10 to +70°C (14 to 158°F)
Measuring range: 0 to 20bar / 200m H20 (0 to 300psi / 600ft H2O)
Accuracy: ±0.2%, "Platinum" ±0.1%
International explosion protection certificates and marine approvals

Technical Specifications

Measuring principle: Hydrostatic pressure

Characteristic: Compact probe with ceramic cell for hydrostatic level measurement

Diameter options:

22 mm: General applications, fresh water
42 mm: Waste water applications
29 mm: Salt water applications

Supply voltage: 10.5 ...35V DC

Reference Accuracy: 0.2% (0.1% optional)

Long term stability: 0.1% of URL/year

Process temperature: -10°C...70°C (14°F...158°F)

Measuring cell: 100mbar...20bar (1.5psi...300psi)

Process connection: Suspension clamp, Cable mounting screws

Communication: 4...20 mA, 4...20 mA HART

Certifications & Approvals

ATEX, FM, CSA, CSA C/US, IEC Ex, INMETRO, NEPSI, UK Ex
Marine approvals: GL/ ABS/ BV/ DNV/ LR
Drinking water approvals: NSF/ KTW/ ACS
