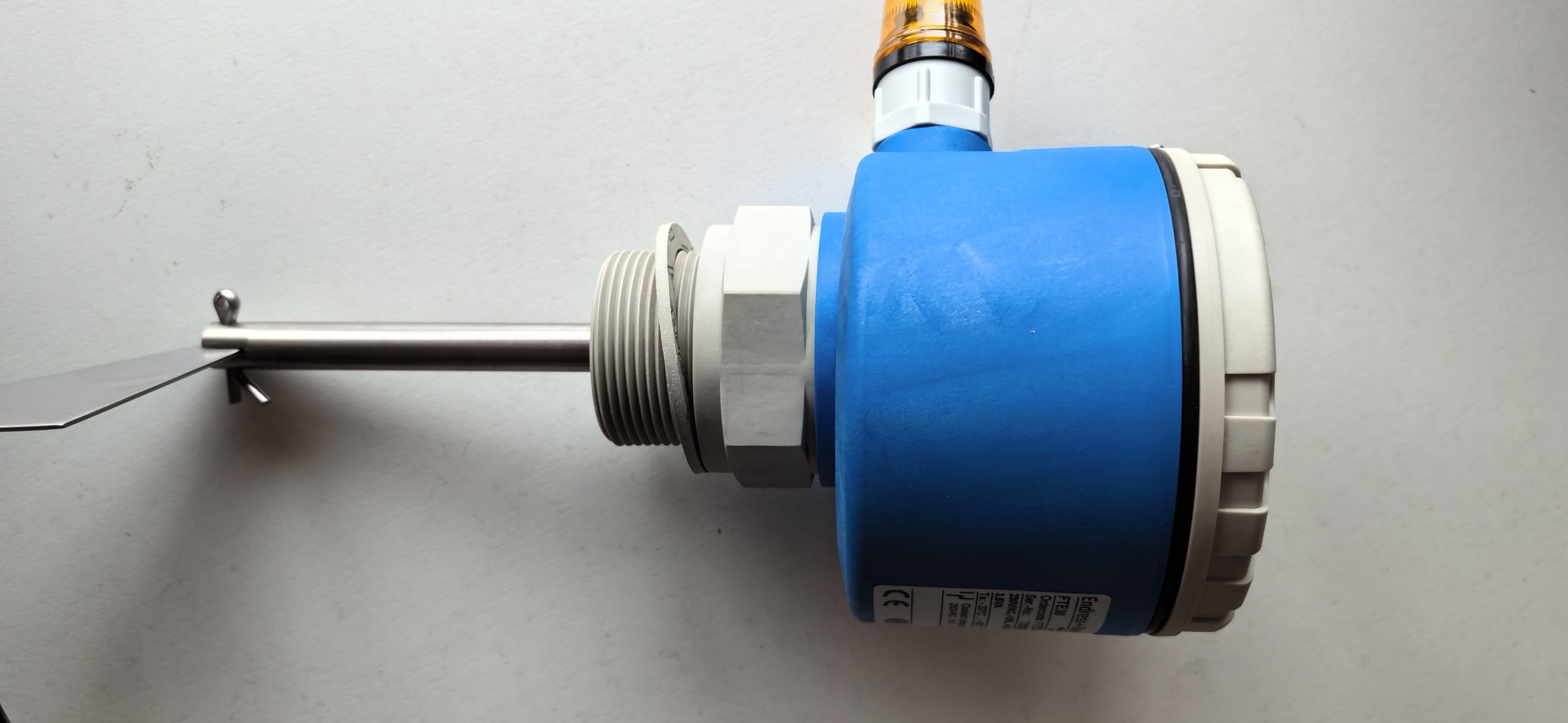

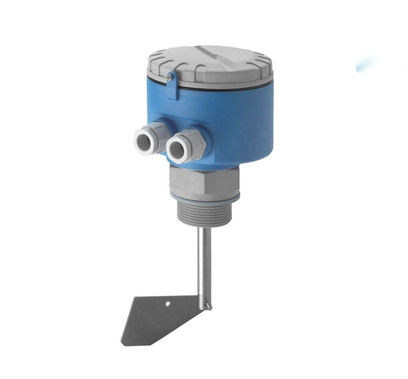

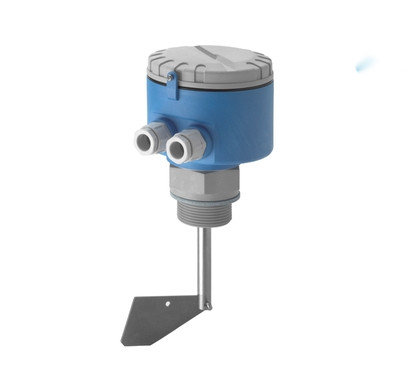

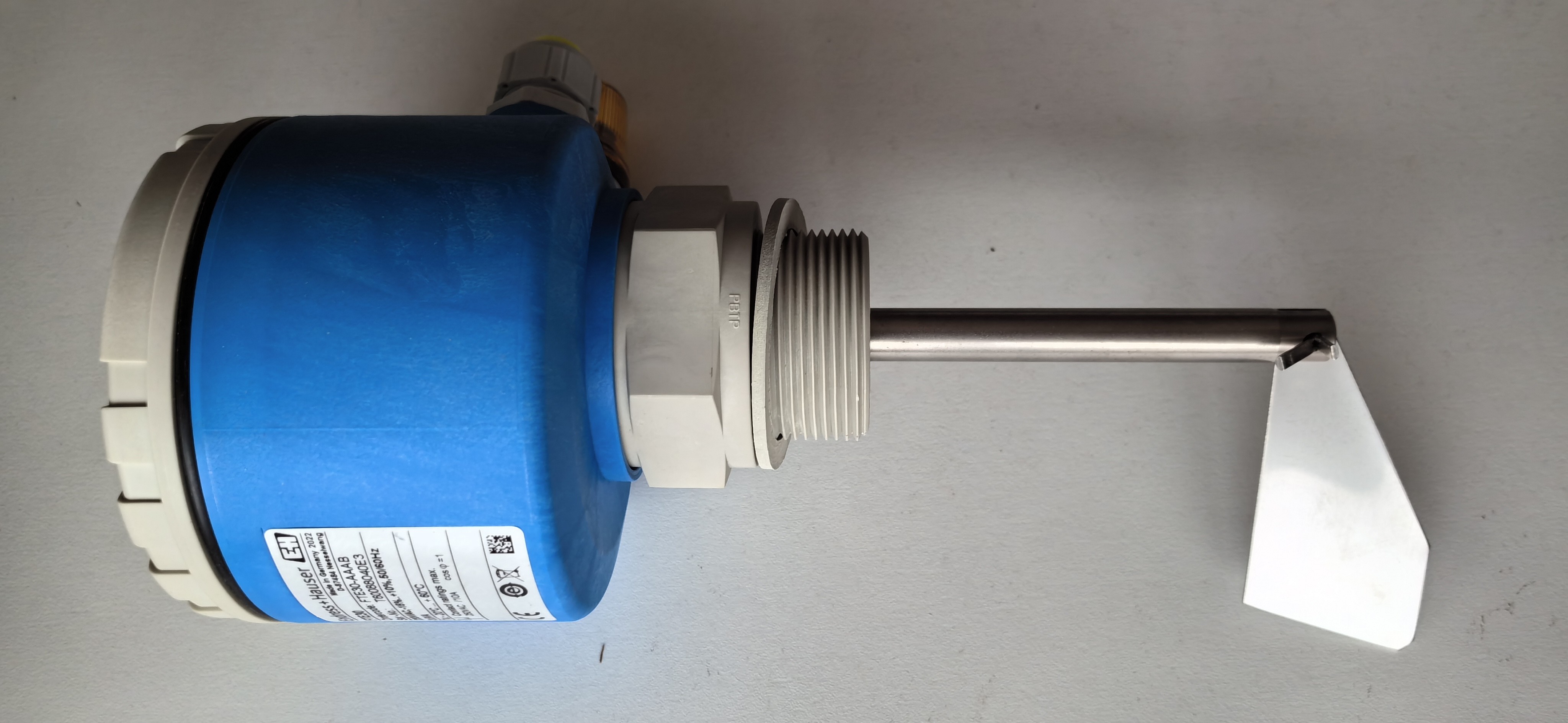

Endress Hauser FTE30 Point Level Switch 230VAC with Relay Output

The economical Endress+Hauser Soliswitch FTE30 is a paddle switch designed for reliable point level detection in bulk materials. Its robust polymer housing and compact design make it ideal for full, empty, and demand alarm applications with bulk solids.

• Optimized materials for outstanding robustness
• Suitable for use in dust explosive areas
• Multiple process connection options: G 1½", PBT; G 1½", 1.4305; Reinforced shaft G 1½", 1.4305
• Sensor lengths available from 100 mm (4") to 600 mm (24")
• Optional rope length of 2,000 mm (80"), can be shortened
• Operating temperature range: -20 to +80 °C (-4 to +170 °F)
• Pressure range: 0.5 to 1.8 bar (7 to 25 psi)

• Measuring principle: Paddle
• Application: Universally applicable as full, empty and demand alarm on silos containing solids
• Special features: Hinged paddle design
• Power options: 230VAC, 115VAC, 48VAC, 24VAC (50/60 Hz), 20-28VDC
• Ambient temperature: -20°C to 60°C (-4°F to 140°F)
• Process temperature: -20°C to 80°C (-4°F to 170°F)
• Process pressure: 0.5 bar to 1.5 bar (7 psi to 22 psi)
• Minimum density: ≥100 g/l
• Material specifications: Shaft: 1.4305; Paddle: 1.4301
• Output: Micro switch with changeover contact max. 10 A/250 VAC
• Application limits: Maximum grain size 50 mm (2")
