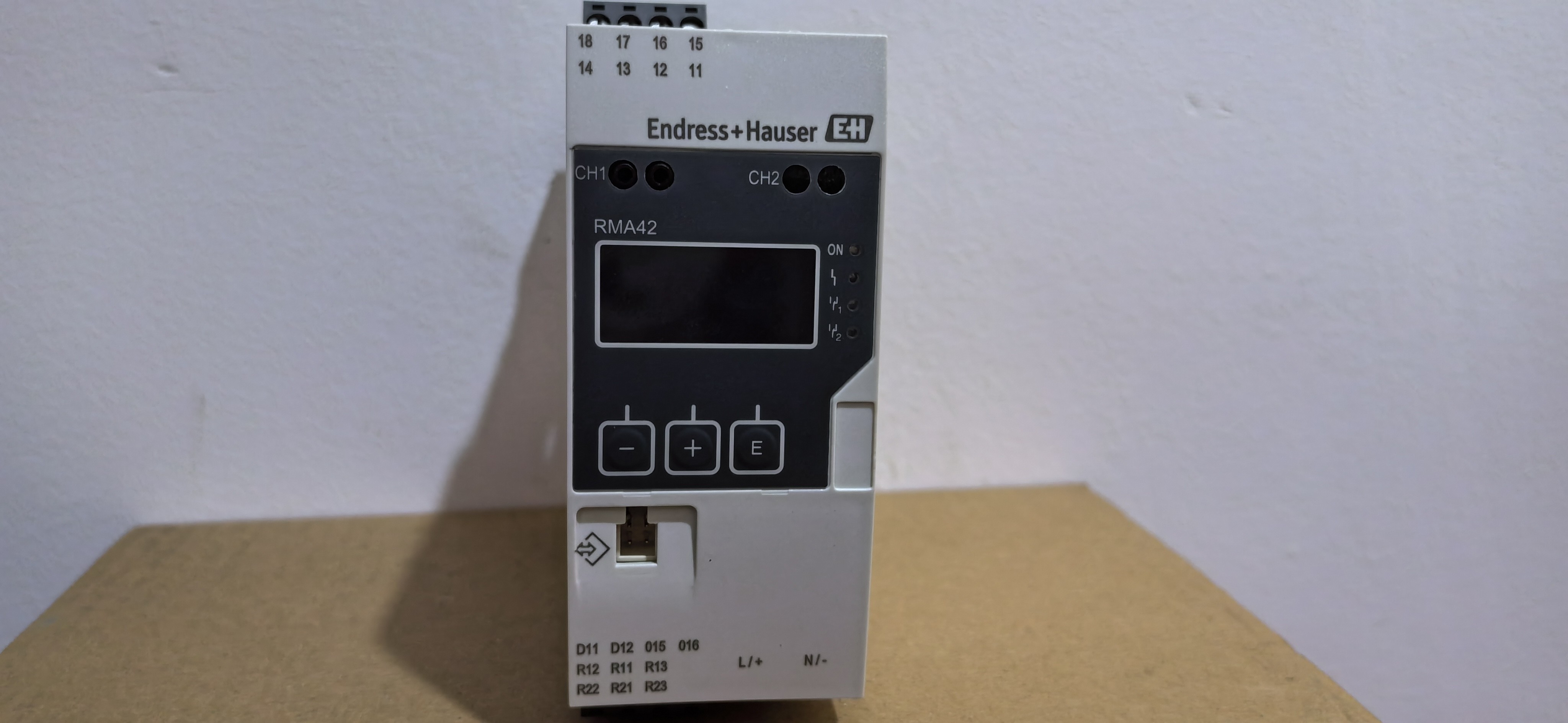

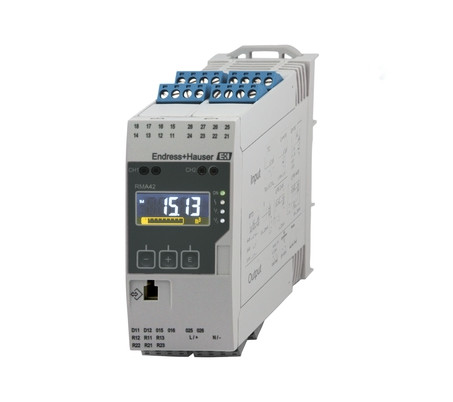

Endress Hauser RMA42 Process Transmitter with Loop Power Supply

Large Image : Endress Hauser RMA42 Process Transmitter with Loop Power Supply

Product Details:

Place of Origin:	Germany
Brand Name:	Endress+Hauser
Certification:	CE
Model Number:	RMA42-1082/0(RMA42-AAC)

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	12-14weeks
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

Endress Hauser RMA42 Process Transmitter with Loop Power Supply

Description

Approval:	Non-hazardous Area	Input; Output:	1x Universal; 1x Analog + 2 Relay
Display:	LCD 7 Segment Multicolour Bargraph TAG Unit Colour Change In Case Of Failure	Power Supply:	Wide Range Power Supply 24 To 230 V AC/DC (-20 % / +10 %) 50/60 Hz
Gross Weight:	0.320 Kilogram	Country Of Origin:	DE
Highlight:	RMA42 Process Transmitter , Endress Hauser Process Transmitter

Endress Hauser Process Transmitter RMA42 Integrated Loop Power Supply Two-wire Sensors

Key Features

Universal process and temperature transmitter with control unit
24 V intrinsically safe loop power supply
Wide range power supply 24 to 230 V AC/DC
2 universal inputs (current, voltage, R, RTD, TC, resistance)
2 analog outputs (current, voltage)
LCD display with multicolor bargraph and TAG unit

Product Attributes

Attribute	Value
Approval	Non-hazardous area
Input; Output	1x universal; 1x analog + 2 relay
Display	LCD 7 segment Multicolour Bargraph TAG unit Colour change in case of failure
Power Supply	Wide range power supply 24 to 230 V AC/DC (-20 % / +10 %) 50/60 Hz
Gross weight	0.320 Kilogram
Country of origin	DE

Product Description

The Endress+Hauser RMA42 Process Transmitter and Control Unit processes analog measured values with indication, evaluation, and calculation capabilities. Its integrated loop power supply powers two-wire sensors, while universal inputs accommodate current, voltage, RTDs, and TCs. The unit features limit value monitoring, relay switching, and analog output for process signal forwarding. The included "differential pressure" application package enables quick commissioning for differential pressure applications.

Applications

Plant and apparatus engineering
Control rooms and cabinets
Process control, recording and supervision
Signal adjustment and conversion
Overfill protection (WHG)

Technical Specifications

Measuring principle: Process transmitter

Function: Universal process and temperature transmitter with control unit

Loop power supply: 24 V intrinsically safe loop power supply

Power Supply: Wide range power supply 24 to 230 V AC/DC (-20 % / +10 %) 50/60 Hz

Input: 2 x universal (current, voltage, R, RTD, TC, resistance)

Output: 2 x Analog (current, voltage)

Software functions: Internal software for calculations, linearization, limit monitoring

Monitoring: Sensor wires according NAMUR NE43

Application package: Differential pressure measurement

Certificates: ATEX, FM, NEPSI, CSA, UKCA, UR C/US, marine approval, KTA, German WHG overfill protection

SIL: 2

Display: LCD, 7 segment, Multicolour, Bargraph, TAG unit, Colour change in case of failure

Interface: Not defined

Dimensions (WxHxD): 45 x 115 x 118 mm (1.77" x 4.53" x 4.65")
