20m Cable Non Hazardous Area Display Endress Hauser Instruments FHX40-A1B

Large Image : 20m Cable Non Hazardous Area Display Endress Hauser Instruments FHX40-A1B

Product Details:

Place of Origin:	Germany
Brand Name:	Endress+Hauser
Certification:	CE
Model Number:	FHX40-A1B

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	12-14weeks
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

20m Cable Non Hazardous Area Display Endress Hauser Instruments FHX40-A1B

Description

Approval:	Non-hazardous Area	Cable:	20m/65ft (> HART)
Additional Option:	Mounting Bracket, Pipe 1"/2"	Material Of Housing:	Aluminium Alloy AL Si 12
Material Of Cable Gland:	Brass, Nickel Plated	Dimensions [mm:	122x120x80 (4.8x4.72x3.15) (HxWxD)
Net Weight:	2.870 Kilogram	Country Of Origin:	DE
Highlight:	Endress Hauser Instruments , 20m Cable Non Hazardous Area Display , Endress Hauser FHX40-A1B

Non-Hazardous Area Endress Hauser Display FHX40-A1B DE Origin High Performance

Product Specifications

Attribute	Value
Approval	Non-hazardous area
Cable	20m/65ft (> HART)
Additional Option	Mounting bracket, pipe 1"/2"
Material of housing	Aluminium alloy AL Si 12
Material of cable gland	Brass, nickel plated
Dimensions [mm]	122x120x80 (4.8x4.72x3.15) (HxWxD)
Net weight	2.870 Kilogram
Country of origin	DE

Product Description

Endress+Hauser Display FHX40-A1B

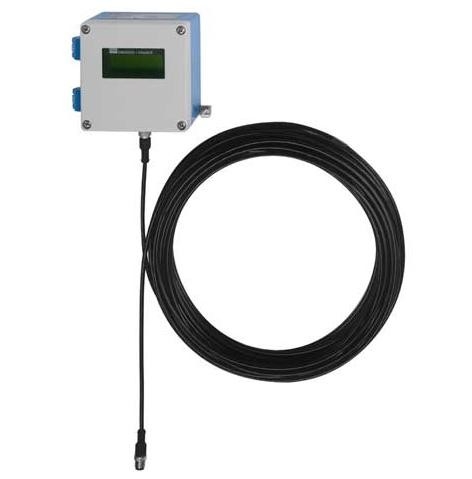

The remote display and operation FHX40 contains the display module VU331 of the instruments Prosonic M, Levelflex M, Micropilot M and Gammapilot M. By a cable it is connected to the electronics in the sensor housing.

The separate housing FHX40 will be mounted at an easy accessible location. This enables an easy monitoring of the measuring value and the simple operation of the display module.

The connection cable (20 m (65 ft)) has a round plug-in connector M12 on both sides. This enables a fast, secure and easy mounting.

For the connection of the electronics with the display and operation tools are not required.

Should the display VU331 be needed directly at the sensor, an easy modification makes this possible.

Technical Data

Max. cable length: 20 m (65 ft)

Temperature range: -40 to +60 °C (-40 to +140 °F) for temperature class T6 -40 to +75 °C (-40 to +167 °F) for temperature class T5

Ingress protection: IP66/67 according to EN60529 with plugged cable

Ingress protection of the cable: IP68 acc. to EN 60529 for plugged connector

Material of housing: Aluminium alloy AL Si 12

Material of cable gland: Brass, nickel plated

Dimensions [mm]: 122x120x80 (4.8x4.72x3.15) (HxWxD)
