Endress Hauser Liquisys COM253 Dissolved Oxygen Transmitter 230VAC

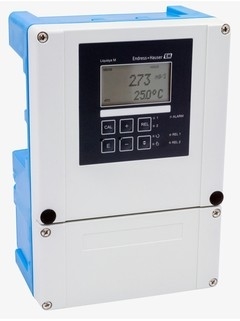

Large Image : Endress Hauser Liquisys COM253 Dissolved Oxygen Transmitter 230VAC

Product Details:

Place of Origin:	Germany
Brand Name:	Endress+Hauser
Certification:	CE
Model Number:	COM253-DX0005

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

Endress Hauser Liquisys COM253 Dissolved Oxygen Transmitter 230VAC

Description

Application:	Water, Waste Water, Process, Fish Farming	Input:	Input
Output / Communication:	0/4-20mA, Hart, Profibus	Material:	PC/ABS-housing
Power Supply:	230VAC	Net Weight:	1.971 Kilogram
Dimension:	247x170x115mm (9.63x6.63x4.48inch)	Country Of Origin:	DE
Highlight:	Endress Hauser Liquisys COM253 , COM253 Dissolved Oxygen Transmitter , 230VAC Liquisys COM253

Endress+Hauser Dissolved Oxygen Transmitter Liquisys COM253 230VAC Power Supply

Product Specifications

Attribute	Value
Application	Water, Waste water, process, fish farming
Input	Input
Output / communication	0/4-20mA, Hart, Profibus
Material	PC/ABS-housing
Power Supply	230VAC
Net weight	1.971 Kilogram
Dimension	247x170x115mm (9.63x6.63x4.48inch)
Country of origin	DE

Product Overview

The Liquisys COM253 is a standard transmitter designed for use with COS41 and COS61 oxygen sensors. It enhances operational safety through continuous plausibility, process, and sensor checks. The transmitter offers modular hardware and software options, including relays and fieldbus communication, allowing precise adaptation to your measurement requirements. Its modular design also permits future upgrades. The intuitive menu and calibration features ensure quick and easy configuration and operation.

Typical Applications

O2 control in the aeration basin
O2 control and monitoring of drinking water
Surface water monitoring
Process water treatment and monitoring
O2 control in fish farming for optimum growth conditions

Technical Specifications

Measuring principle	Amperometric oxygen measurement
Characteristic	4-wire transmitter with graphic display
Design	Dissolved oxygen transmitter in a field housing made of PC/ABS for COS31/41/71
Temperature sensor	Display and current output
Input	1-channel transmitter
Additional certifications	CSA Gen. Purpose

Supported Protocols and Interfaces

0/4...20 mA
HART
PROFIBUS DP
PROFIBUS PA
