Volume Flow Endress Hauser Proline Promag W 300 Flowmeter DN25-3000

Large Image : Volume Flow Endress Hauser Proline Promag W 300 Flowmeter DN25-3000

Product Details:

Place of Origin:	Germany
Brand Name:	Endress+Hauser
Certification:	CE
Model Number:	5W3B80-AAEIBAAAFAAUD5K0AA2+AADAJA(5W3B80-E1T0/101)

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	on request
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

Volume Flow Endress Hauser Proline Promag W 300 Flowmeter DN25-3000

Description

Nominal Diameter Range:	DN 25 To 3000(1 To 120")	Measured Variables:	Volume Flow, Conductivity, Mass Flow
Max. Process Pressure:	PN 40, Class 300, 20K	Inputs:	Status Input 4-20 MA Input
Power Supply:	DC 24 V AC 100 To 230 V AC 100 To 230 V / DC 24 V (non-hazardous Area)	Product Safety:	CE, C-tick, EAC Marking
Highlight:	Endress Hauser Proline Promag W 300 , Proline Promag W 300 Flowmeter , 5W3B80

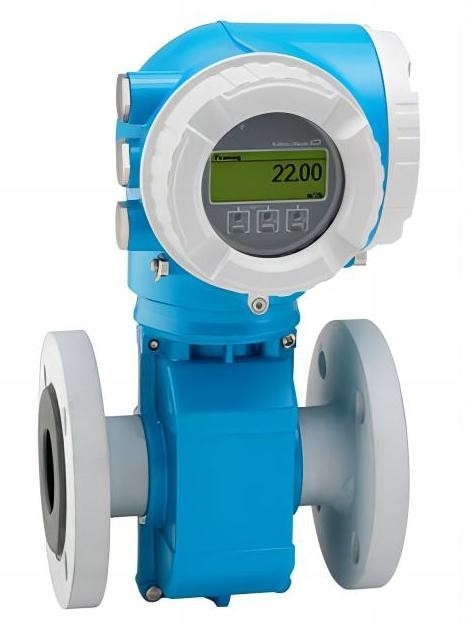

Endress+Hauser Proline Promag W 300 Electromagnetic Flowmeter 5W3B80

Product Specifications

Nominal diameter range	DN 25 to 3000(1 to 120")
Measured variables	Volume flow, conductivity, mass flow
Max. process pressure	PN 40, Class 300, 20K
Inputs	Status input 4-20 mA input
Power supply	DC 24 V AC 100 to 230 V AC 100 to 230 V / DC 24 V (non-hazardous area)
Product safety	CE, C-tick, EAC marking

Product Overview

The Endress+Hauser Proline Promag W 300 electromagnetic flowmeter is a premium device designed for reliable water and wastewater measurement in hazardous areas and harsh conditions. Its compact transmitter offers exceptional flexibility with one-side access, remote display capability, and enhanced connectivity options. The innovative Heartbeat Technology ensures measurement reliability and compliant verification.

Key Features

Bidirectional measuring principle virtually independent of pressure, density, temperature, and viscosity
Specifically designed for industrial and municipal water/wastewater measurement
International drinking water approvals
IP68 protection rating (Type 6P enclosure)
Custody transfer approval to MI-001/OIML R49
Compact dual-compartment housing with up to 3 I/Os
Backlit display with touch control and WLAN access
Optional remote display available

Related Models
