E+H Compact Pressure Transmitter Cerabar PMP23-DN33/0 PMP23-IA1N1HF3CJ+F3RW
Product Specifications
| Attribute |
Value |
| Approval |
IECEx ia IIC T4 Ga/Gb |
| Output |
4-20mA |
| Electrical Connection |
Plug M12, IP66/69 NEMA Type 4X Encl. |
| Calibration |
Factory verification certificate 3-point |
| Accessory Enclosed |
Plug connector M12 90deg, IP69, 5m cable, union nut 316L |
| Net weight |
0.685 Kilogram |

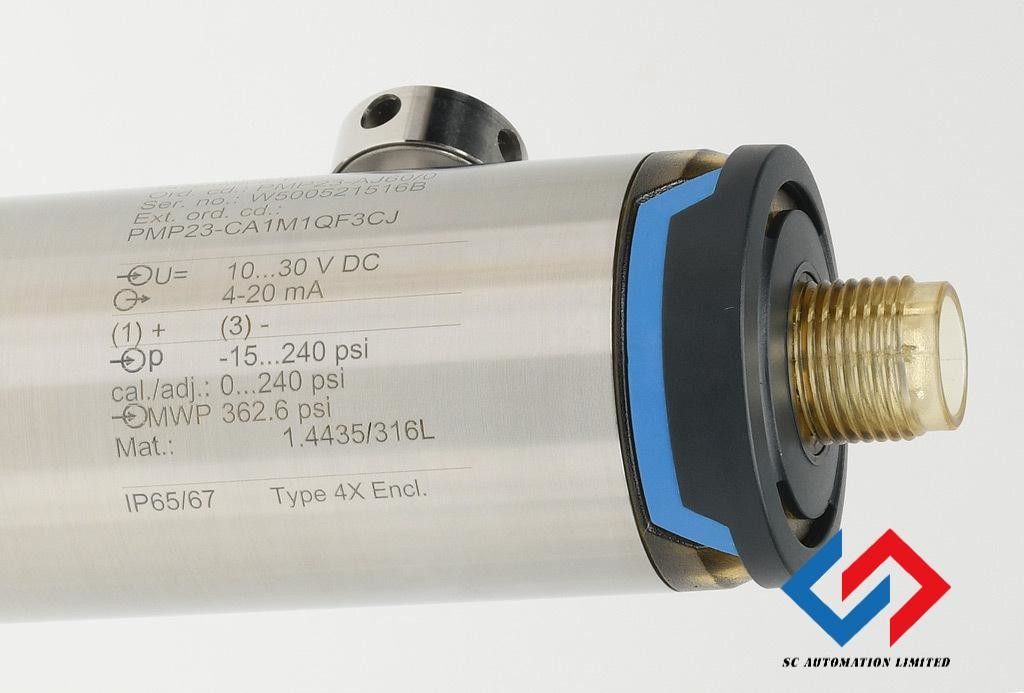

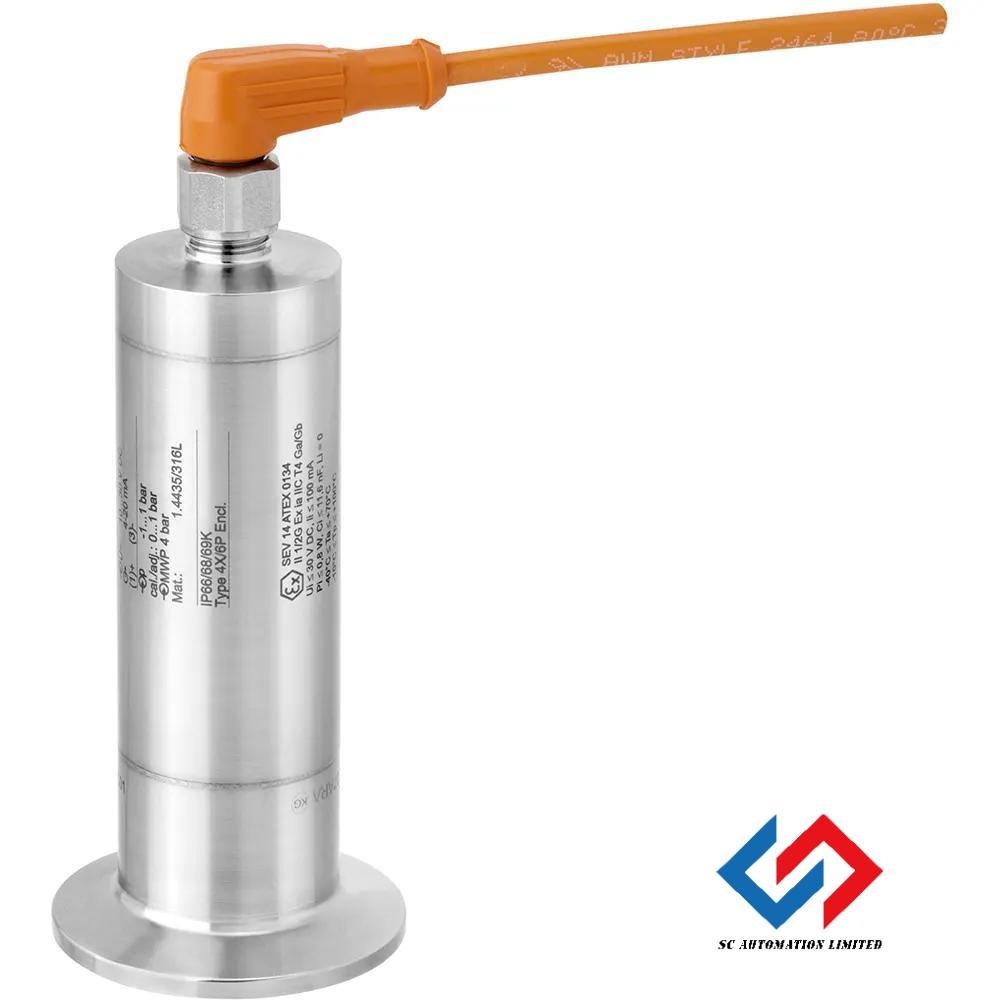

E+H Absolute and Gauge Pressure Cerabar PMP23

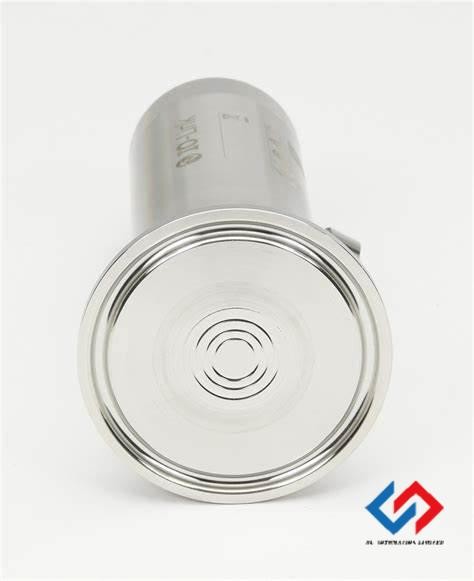

The Cerabar PMP23 is a cost-effective, compact absolute or gauge pressure transmitter designed for hygienic industry applications. Featuring a piezo-resistive measuring cell with flush-mounted 316L diaphragm, it offers various EHEDG and 3-A certified hygienic process connections with FDA-conform materials.
- Process connections: Flush-mounted hygienic connections, flush mounted thread connections
- Process temperature: -10°C to +100°C (-40°F to +212°F) and +135°C (+275°F) for max. 1h
- Process pressure: 400mbar to +40bar (6 to 600psi)
- Accuracy: ±0.3% of span
- International explosion protection and hygienic certificates
| Measuring principle |
Absolute and gauge pressure |
| Characteristic |
Cost-effective pressure transducer, piezoresistive sensor with metallic measuring diaphragm for hygienic applications |
| Supply voltage |
10…30 VDC |
| Reference Accuracy |
0.3 % |
| Long term stability |
0.2 % of URL/year |
| Process temperature |
-10 °C…+100 °C (+14 °F…+212 °F)
+135 °C for 1 h (+275 °F for 1 h) |
| Ambient temperature |
-40 °C…+85 °C (-40 °F…+185 °F) |
| Measuring cell |
+400 mbar…+40 bar (+6 psi...+600 psi) |
| Max. overpressure limit |
160 bar (2400 psi) |
| Process connection |
Threads: G1, M24 |
| Process connection hygienic |
DIN11851, Clamp, SMS, Varivent, Universal adapter |
| Communication |
4...20 mA
IO-Link |
| Certificates / Approvals |
ATEX, FM, CSA, IEC Ex, NEPSI, UK Ex |
