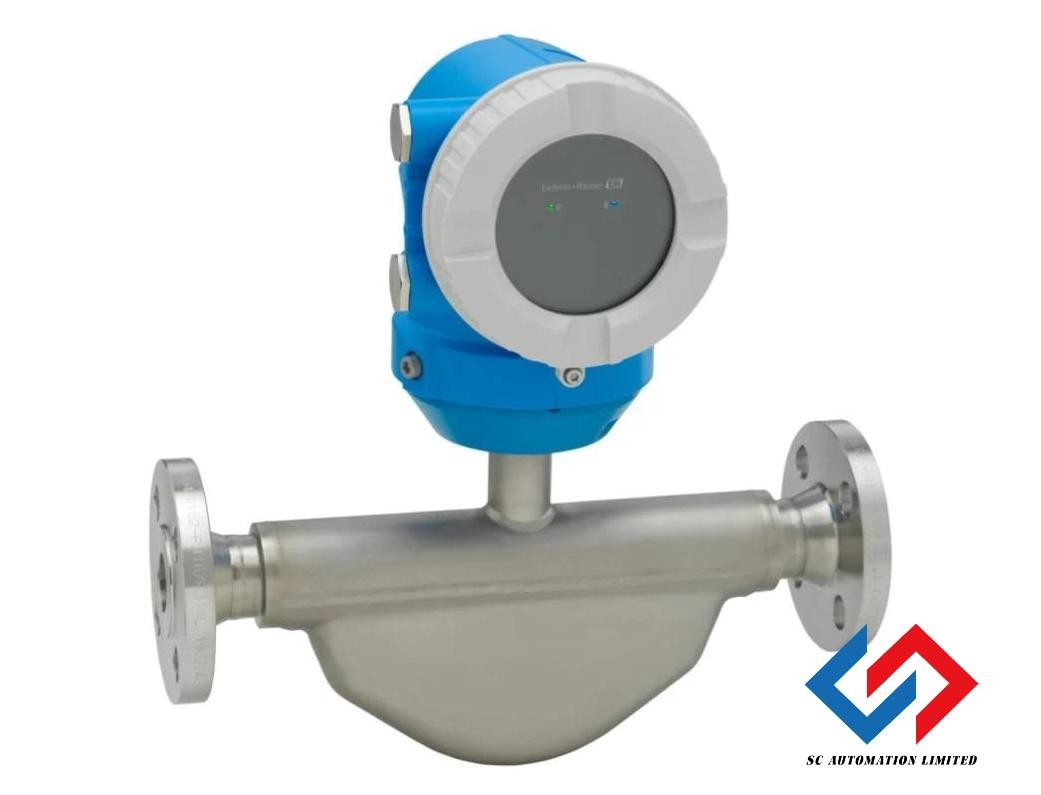

Endress Hauser Mass Flow Meter 8KBB40-14M8/0 with Coated Housing and 24VDC Power Supply
Product Specifications
| Attribute |
Value |
| Power Supply |
24VDC |
| Output; Input |
4-20mA HART, pulse/freq./switch output |
| Display; Operation |
LCD, 2.40"; SmartBlue app |
| Housing |
Alu, coated |
| Electrical Connection |
Gland M20 |
| Meas. Tube Mat., Wetted Parts |
Stainl. steel, not polished |
Product Overview
The Endress+Hauser Promass K series provides a cost-efficient Coriolis solution for fundamental mass flow measurement tasks. This reliable instrument delivers precise measurements in basic applications involving air, gas, fuel, and water. With its straightforward hardware and software design, the Promass K 10 simplifies every stage from installation to maintenance while maintaining Endress+Hauser's renowned quality standards. Heartbeat Technology ensures measurement reliability and extends recalibration intervals.
Measuring Principle
Coriolis
Key Features
- Flowmeter with minimized total cost of ownership and intuitive operation
- Designed for liquid and gas measurement in utility processes and basic applications
- Cost-effective general-purpose alternative to mechanical flowmeters
- Reduces process measuring points through multivariable measurement (flow, density, temperature)
- Space-saving installation with no inlet/outlet run requirements
- Compact dual-tube sensor design
Technical Specifications
- Nominal diameter range: DN 8 to 80 (⅜ to 3")
- Wetted materials: Measuring tube: 1.4539 (904L), Connection: 1.4404 (316/316L)
- Measured variables: Mass flow, temperature, Density (option), volume flow, corrected volume flow
- Max. measurement error: Mass flow (liquid): ±0.5% (standard), ±0.15% (option); Mass flow (gas): ±0.75%
- Measuring range: 0 to 180,000 kg/h (0 to 6615 lb/min)
- Max. process pressure: PN 40, Class 300, 40K
- Medium temperature range: -40 to +150°C (-40 to +302°F)
- Ambient temperature range: Standard: -20 to +60°C (-4 to +140°F)
- Housing material: Sensor: Stainless steel 1.4301 (304); Transmitter: AlSi10Mg, coated
- Degree of protection: Standard: IP66/67, Type 4X enclosure
- Display/Operation: 2.4" LCD display with touch & auto rotate; Configuration via SmartBlue App (Bluetooth)
