5mA 4MB AB Modules ControlLogix 4 MB Controller 1756-L72
Product Specifications
| Attribute |
Value |
| Series |
ControlLogix |
| Module Type |
Processor Module |
| Nonvolatile Memory |
1 GB (1784-SD1 ships with every controller) 2 GB (1784-SD2) |
| User Memory |
4 MB |
| Maximum I-O |
128,000 |
| Communication |
1 port USB |
| Power Dissipation |
2.5 Watts |
| Backplane Current (1.2 Volts DC) |
5 mA |
Product Description

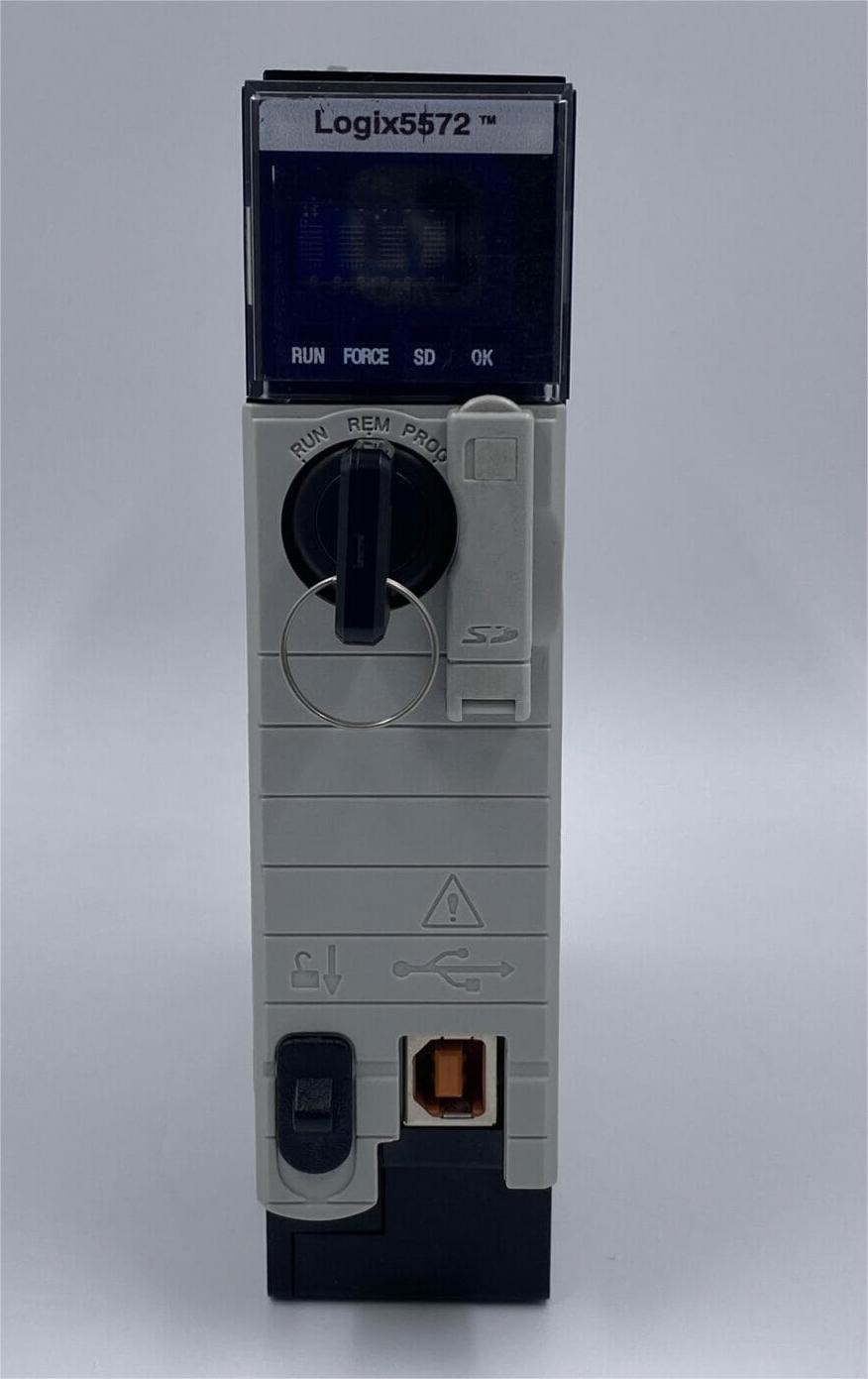

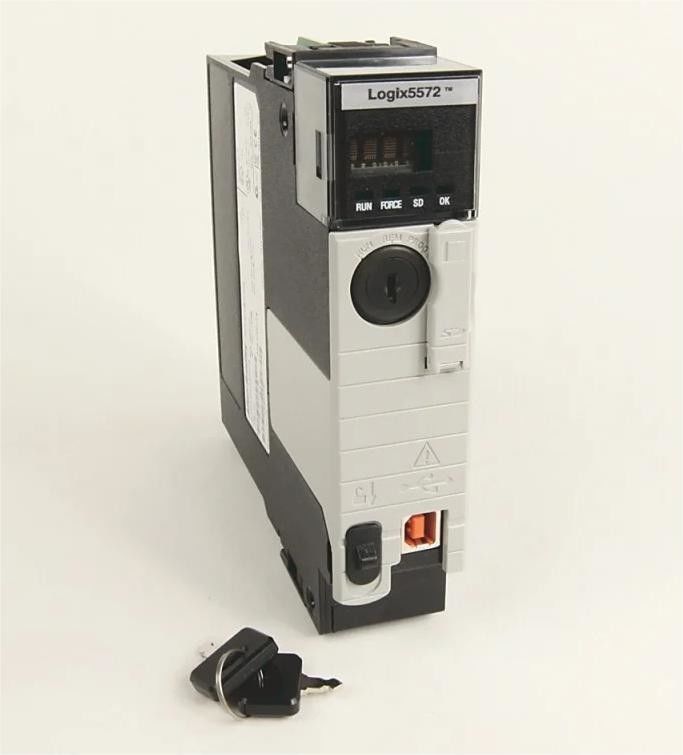

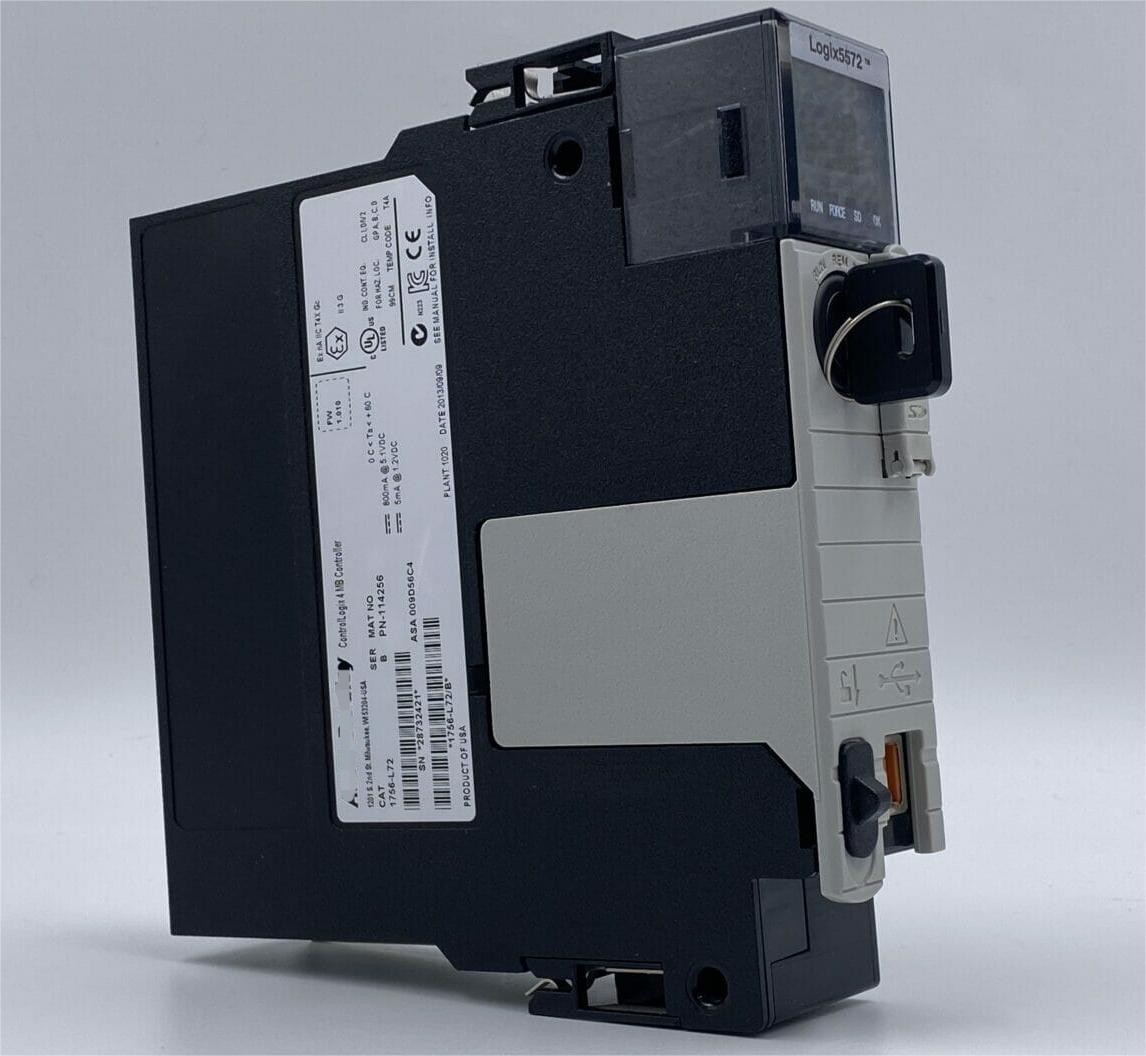

The AB 1756-L72 is a ControlLogix Series Programmable Automation Controller (PAC) with 4 MB user memory for data and logic and 0.98 MB I/O memory. The controller includes a 1 GB SD card (1784-SD1) for optional nonvolatile memory storage, upgradable to 2 GB via the 1784-SD2 card.
Important: Only use Rockwell Automation SD cards as they are fully tested with the controllers. Other cards may cause data loss or corruption. The SD cards primarily store diagnostic data for troubleshooting purposes.
The controller includes three capacitor energy storage modules:
- 1756-ESMCAP/1756-ESMCAPK (removable)
- 1756-ESMNSE/1756-ESMNSEK (removable, no residual WallClockTime power backup)
- 1756-ESMNRM/1756-ESMNRMK (nonremovable, enhances security by preventing USB/SD card use)
The 1756-L72 can be used with specific modules to create an Armor ControlLogix controller and supports controller redundancy when paired with a similar controller on the same ControlNet network.
Compatible Chassis: 1756-A4, 1756-A4K, 1756-A7, 1756-A7K, 1756-A10, 1756-A10K, 1756-A13, 1756-A13K, 1756-A17, 1756-A17K
Technical Specifications:
- Display: 4-character alphanumeric status display
- Communication options: Data Highway Plus, DeviceNet, Ethernet/IP, Remote I/O, SynchLink, ControlNet, Third-party networks
- Isolation voltage: 30V continuous (tested at 500V AC for 60 seconds)
- Current draw: 5 mA at 1.2V DC, 800 mA at 5.1V DC
- Power dissipation: 2.5 Watts (8.5 BTU/hour)
- Temperature range: Operating 0-60°C, Storage -40-85°C
- Vibration: 2G at 10-500Hz
- Shock: 30G operating, 50G non-operating
Related Part Numbers
Frequently Asked Questions
What is this module's power dissipation?
The 1756-L72 has a power dissipation of around 2.5 Watts.
What type of enclosure does the 1756-L72 require?
The 1756-L72 does not require any kind of enclosure.
