P+F KFD2-SR2-Ex1.W Switch Amplifier SIL 2 35mA 10Hz

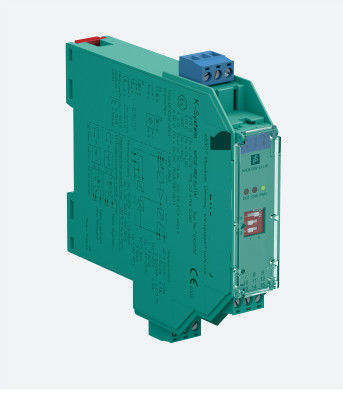

Large Image : P+F KFD2-SR2-Ex1.W Switch Amplifier SIL 2 35mA 10Hz

Product Details:

Place of Origin:	Germany
Brand Name:	P+F
Certification:	PF 08 CERT 0803
Model Number:	KFD2-SR2-Ex1.W

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	on request
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

P+F KFD2-SR2-Ex1.W Switch Amplifier SIL 2 35mA 10Hz

Description

Safety Integrity Level (SIL):	SIL 2	Supply Connection:	Power Rail Or Terminals 14+, 15-
Supply Rated Current:	≤ 35 MA	Switching Frequency:	< 10 Hz
Display Elements:	LEDs	Electromagnetic Compatibility:	NE 21:2017 , EN 61326-3-1:2017 , EN IEC 61326-3-2:2018
Ambient Temperature:	-40 ... 70 °C (-40 ... 158 °F)	Dimensions:	20 X 119 X 115 Mm (0.8 X 4.7 X 4.5 Inch) (W X H X D) , Housing Type B2
Highlight:	35mA P+F Sensors , 10Hz P+F Sensors , KFD2-SR2-Ex1.W

35mA 10Hz P+F Sensors Switch Amplifier KFD2-SR2-Ex1.W

Product Overview

1-channel isolated barrier with 24 V DC supply (Power Rail), supporting dry contact or NAMUR inputs with relay contact output. Features line fault detection (LFD) and reversible operation mode. Certified for safety applications up to SIL 2 (SC 3) according to IEC/EN 61508.

Key Specifications

Attribute	Value
Safety Integrity Level (SIL)	SIL 2
Supply Connection	Power Rail or terminals 14+, 15-
Supply Rated current	≤ 35 mA
Switching frequency	< 10 Hz
Display elements	LEDs
Electromagnetic compatibility	NE 21:2017, EN 61326-3-1:2017, EN IEC 61326-3-2:2018
Ambient temperature	-40 ... 70 °C (-40 ... 158 °F)
Dimensions	20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D), housing type B2

Technical Details

General Specifications

Signal type: Digital Input
Functional safety: SIL 2, SC 3
Supply: 19 ... 30 V DC, ≤ 35 mA, ≤ 0.7 W power consumption
Input: NAMUR or volt-free contact, line fault detection
Output: 1 x relay (change-over contact)
Switching frequency: < 10 Hz
Galvanic isolation: reinforced insulation (300 Veff)

Certifications & Approvals

ATEX, IECEx, FM, UL, cULus certified
Compliant with EN 61010-1, EN 61326-1, IEC/EN 61508
Hazardous area approvals: Ex ia, Ex ic, Ex ec

Mechanical Specifications

Dimensions: 20 x 119 x 115 mm (W x H x D)
Weight: approx. 150 g
Mounting: 35 mm DIN rail
Degree of protection: IP20
Connection: screw terminals
