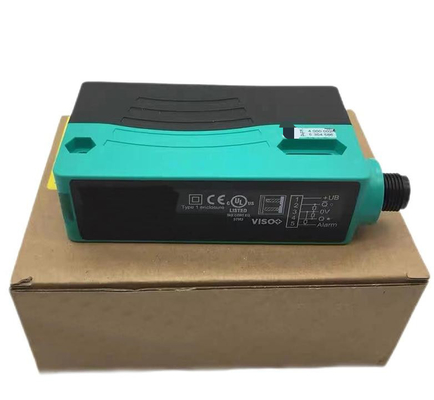

P+F RL28-8-H-2000-IR Background Suppression Sensor 880nm IP67

P+F RL28-8-H-2000-IR Background Suppression Sensor 880nm IP67
P+F RL28-8-H-2000-IR Background Suppression Sensor 880nm IP67 P+F RL28-8-H-2000-IR Background Suppression Sensor 880nm IP67

Large Image :  P+F RL28-8-H-2000-IR Background Suppression Sensor 880nm IP67

Product Details:
Place of Origin: Germany
Brand Name: P+F
Certification: CE
Model Number: RL28-8-H-2000-IR/47/105
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: standard carton packing
Delivery Time: on request
Payment Terms: T/T
Supply Ability: 100pcs per month
Contact Now Chat Now

P+F RL28-8-H-2000-IR Background Suppression Sensor 880nm IP67

Description
Background Suppression: Max. + 10 % Of The Upper Limit Of The Detection Range Light Type: Modulated Infrared Light , 880 Nm
Mission Time (TM): 20 A Standards: EN 60947-5-2
Protection Class: II, Rated Voltage ≤ 250 V AC With Pollution Degree 1-2 According To IEC 60664-1 Connection: 5-pin, M12 X 1 Connector
Ambient Temperature: -40 ... 60 °C (-40 ... 140 °F) Degree Of Protection: IP67
Highlight:

P+F Background suppression sensor

,

880nm diffuse sensor with background suppression

,

RL28-8-H-2000-IR

P+F 880nm Background Suppression Sensor RL28-8-H-2000-IR/47/105
Key Features
  • Background suppression with max. +10% of upper detection range limit
  • Modulated infrared light (880 nm) for reliable detection
  • Ultra bright LEDs for power and status indication
  • Minimal black-white difference through infrared transmission LED
  • Insensitive to ambient light, including energy saving lamps
  • IP67 protection rating for waterproof operation
  • Protection class II for electrical safety
Technical Specifications
Detection Range
20...2000 mm (adjustable 20...200 mm)
Light Source
IRED, modulated infrared light (880 nm)
Black-white Difference
< 40% (6%/90%)
Light Spot Diameter
≈70 mm at 2000 mm distance
Opening Angle
2° (transmitter and receiver)
Ambient Light Limit
50000 Lux
Electrical Specifications
Operating Voltage 10...30 V DC
No-load Supply Current ≤40 mA
Switching Output 2 PNP, complementary, short-circuit protected
Switching Current max. 200 mA
Switching Frequency 250 Hz
Response Time 2 ms
Environmental Specifications
Ambient Temperature -40...60°C (-40...140°F)
Storage Temperature -40...60°C (-40...140°F)
Degree of Protection IP67
Connection 5-pin, M12 x 1 connector
Mechanical Specifications
Housing Material Plastic ABS
Mass 70 g
Dimensions (H × W × D) 88 × 25.8 × 54.3 mm
Standards & Approvals
  • EN 60947-5-2 product standard
  • UL approval E87056, cULus Listed
  • Class 2 power supply, type rating 1
  • Protection class II (IEC 60664-1)
