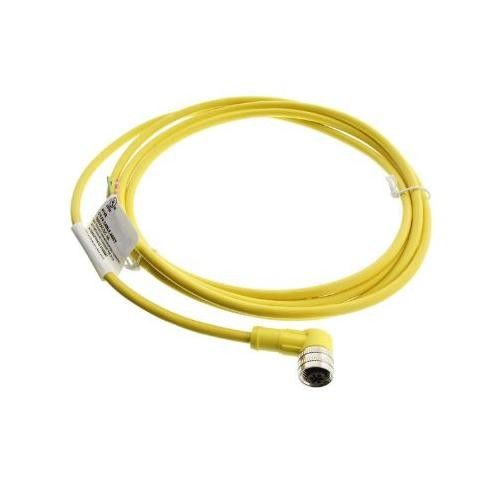

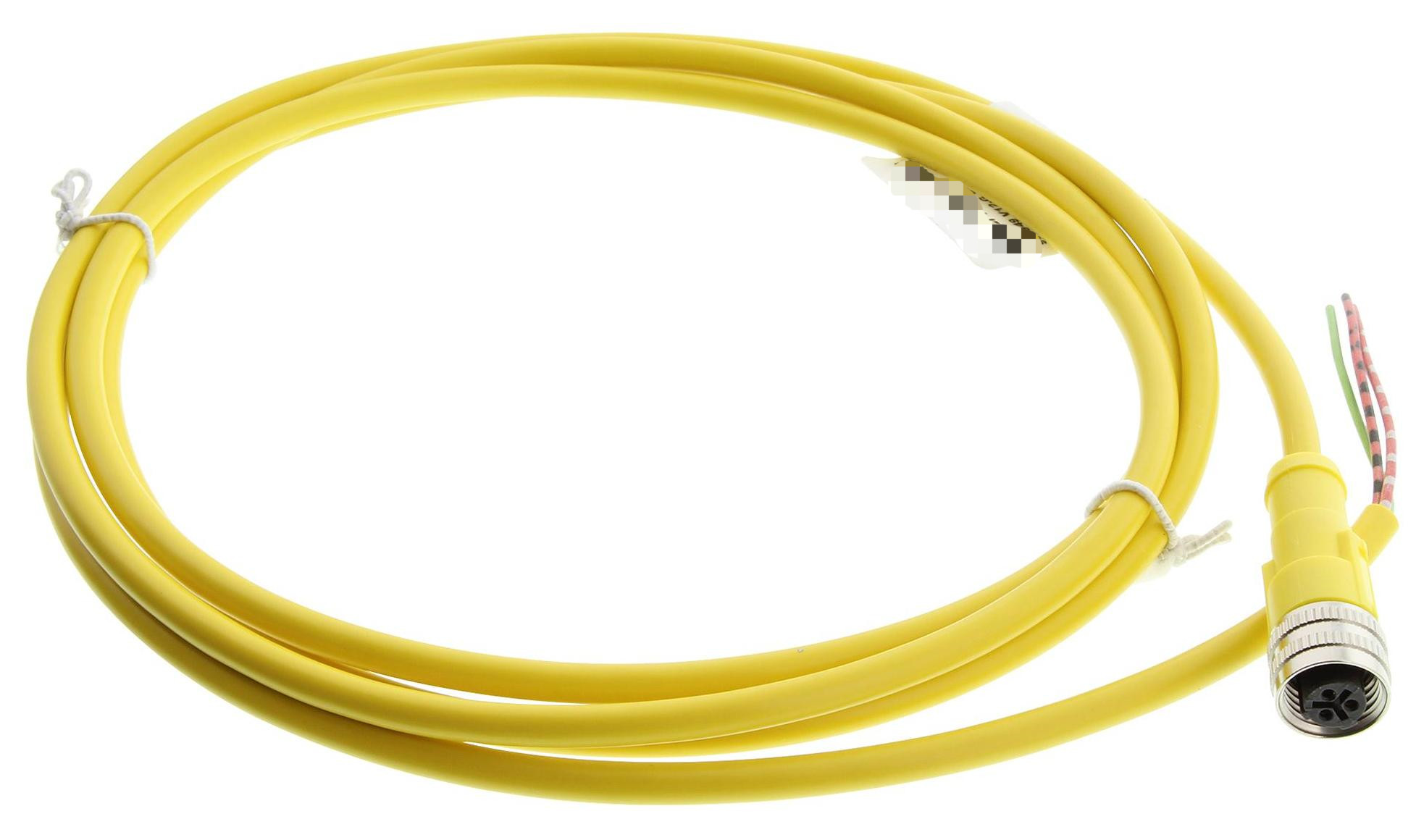

V12-G-YE10M-PVC Female Connector 3Pin 4A IP68 P And F Sensors

V12-G-YE10M-PVC Female Connector 3Pin 4A IP68 P And F Sensors
V12-G-YE10M-PVC Female Connector 3Pin 4A IP68 P And F Sensors V12-G-YE10M-PVC Female Connector 3Pin 4A IP68 P And F Sensors V12-G-YE10M-PVC Female Connector 3Pin 4A IP68 P And F Sensors

Large Image :  V12-G-YE10M-PVC Female Connector 3Pin 4A IP68 P And F Sensors

Product Details:
Place of Origin: Germany
Brand Name: P+F
Certification: CE
Model Number: V12-G-YE10M-PVC
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: standard carton packing
Delivery Time: on request
Payment Terms: T/T
Supply Ability: 100pcs per month
Contact Now Chat Now

V12-G-YE10M-PVC Female Connector 3Pin 4A IP68 P And F Sensors

Description
Volume Resistance: < 5 MΩ Operating Current (TM): Max. 4 A
Test Voltage: > 1500 V Eff AC Operating Voltage: Max. 300 V DC
Number Of Pins: 3 Ambient Temperature: -25 ... 105 °C (-13 ... 221 °F)
Degree Of Protection: IP68 / IP69K Pollution Degree: 3
Highlight:

V12-G-YE10M-PVC Female Connector

,

3Pin 4A p and f sensors

,

IP68 p and f sensors

4A P+F Sensors Female Connector V12-G-YE10M-PVC
Key Specifications
Attribute Value
Volume resistance < 5 mΩ
Operating current (TM) max. 4 A
Test voltage > 1500 V eff AC
Operating voltage max. 300 V DC
Number of pins 3
Ambient temperature -25 ... 105 °C (-13 ... 221 °F)
Degree of protection IP68 / IP69K
Pollution degree 3
Female Connector V12-G-YE10M-PVC
Product Features
  • Knurled nut suitable for tool assembly
  • Immunity to vibration, with mechanical latching
  • Gold-plated and machined contacts
  • Degree of protection IP68 / IP69K
Technical Specifications
Product Description Connecting cable, 1/2" - 20 UNF, 3-pin, PVC cable
Number of pins 3
Connection 1 socket
Construction type 1 straight
Threading 1 1/2"
Connection 2 cable end
Pin diameter 1 mm
Material - Contacts CuSn / Au
Material - Contact surface Ni/Au
Material - Body TPU, yellow
Material - Cable PVC
Material - Slotted nut brass, nickel-plated
Material - Core insulation PVC
Cable - Sheath diameter ∅5.2 mm
Cable - Bending radius 10 x cable diameter
Cable - Color yellow
Cable - Cores 3 x 0.34 mm²
Cable - Length 10 m
Flammability - Contact carrier 94 V-2
Flammability - Housing 94 V-2
Flammability - Cable VW-1 flame rating from UL
