P+F KFA6-DWB-Ex1.D Rotation Speed Monitor SIL 2 18mA

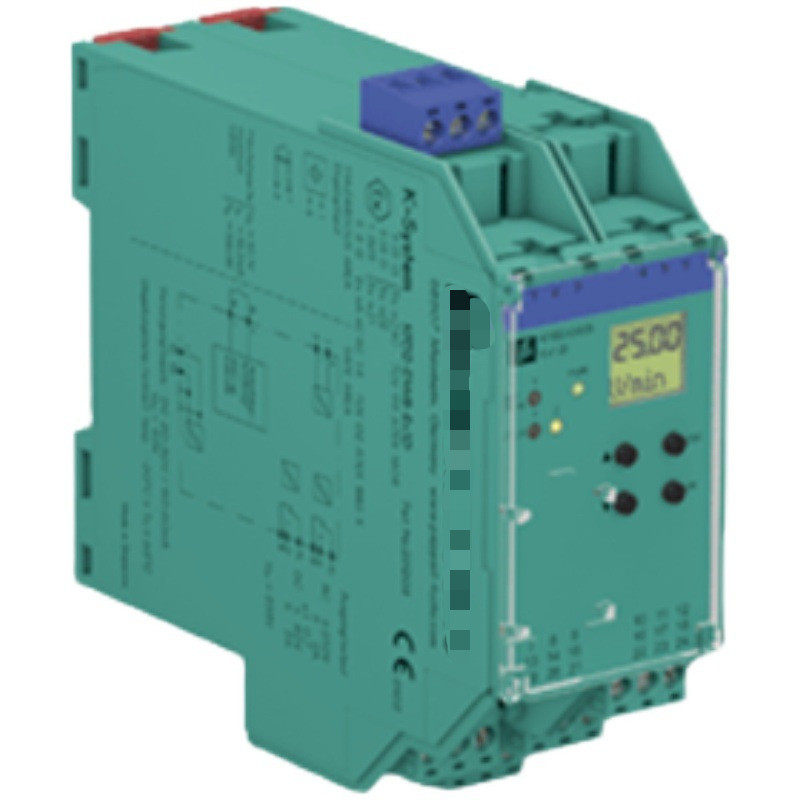

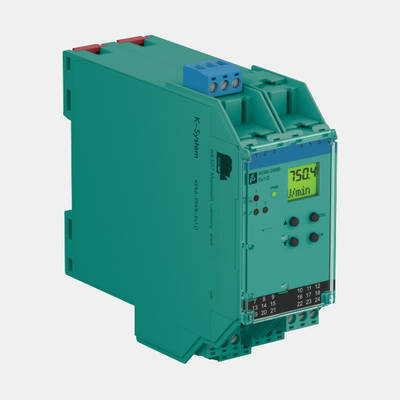

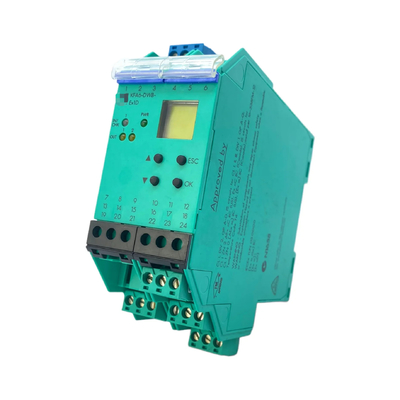

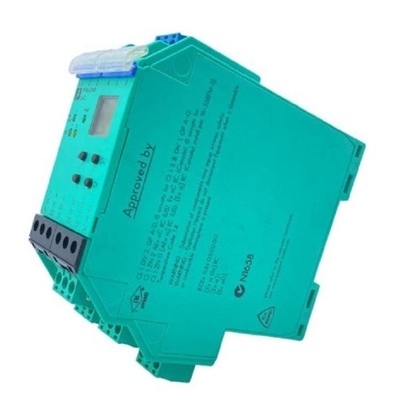

Large Image : P+F KFA6-DWB-Ex1.D Rotation Speed Monitor SIL 2 18mA

Product Details:

Place of Origin:	Germany
Brand Name:	P+F
Certification:	TÜV 02 ATEX 1885 X
Model Number:	KFA6-DWB-Ex1.D

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	on request
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

P+F KFA6-DWB-Ex1.D Rotation Speed Monitor SIL 2 18mA

Description

Safety Integrity Level (SIL):	SIL 2	Supply Connection:	Terminals 23, 24
Supply Rated Current:	18 MA	Degree Of Protection:	IEC 60529:2001
Display Elements:	LEDs , Display	Electromagnetic Compatibility:	NE 21:2006
Ambient Temperature:	-20 ... 60 °C (-4 ... 140 °F)	Dimensions:	40 X 119 X 115 Mm (1.6 X 4.7 X 4.5 Inch) (W X H X D) , Housing Type C2
Highlight:	18mA Rotation Speed Monitor , P+F Rotation Speed Monitor , KFA6-DWB-Ex1.D

P+F 18mA Rotation Speed Monitor KFA6-DWB-Ex1.D

Key Features

1-channel isolated barrier with 230 V AC supply
Accepts dry contact or NAMUR inputs (1 mHz ... 5 kHz)
2 relay contact outputs with configurable start-up override
Keypad configuration and line fault detection (LFD)
SIL 2 safety rating per IEC/EN 61508/61511
Compact 40 mm housing width with DIN rail mounting

Technical Specifications

Attribute	Value
Safety Integrity Level (SIL)	SIL 2
Supply Connection	terminals 23, 24
Supply Rated current	18 mA
Degree of protection	IEC 60529:2001
Display elements	LEDs, display
Electromagnetic compatibility	NE 21:2006
Ambient temperature	-20 ... 60 °C (-4 ... 140 °F)
Dimensions	40 x 119 x 115 mm (1.6 x 4.7 x 4.5 inch) (W x H x D), housing type C2

Detailed Technical Data

Input Specifications

Input I (NAMUR)

Terminals 1+, 3- | Pulse duration > 50 µs | Frequency range 0.001-5000 Hz

Input II

Terminals 13+, 14- | Startup override adjustable 1-1000 s

Output Specifications

Output I, II

Relay contacts | 253 V AC / 2 A / cos φ ≥ 0.7 | 40 V DC / 2 A

Mechanical life

50 million switching cycles

Safety Certifications

ATEX Certification

TÜV 99 ATEX 1408 | II (1)G [Ex ia Ga] IIC

IECEx Certification

IECEx TUN 03.0000 | [Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I

UL Approval

E223772
