P+F NBB5-18GM50-E2-V1 IP68 M18 Inductive Sensor

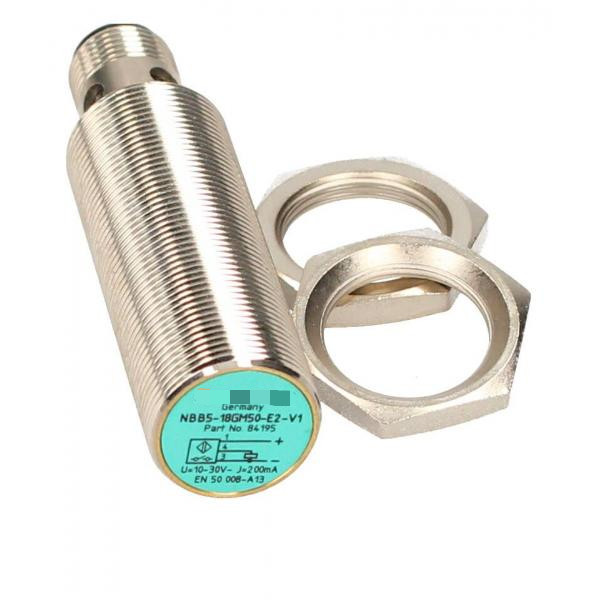

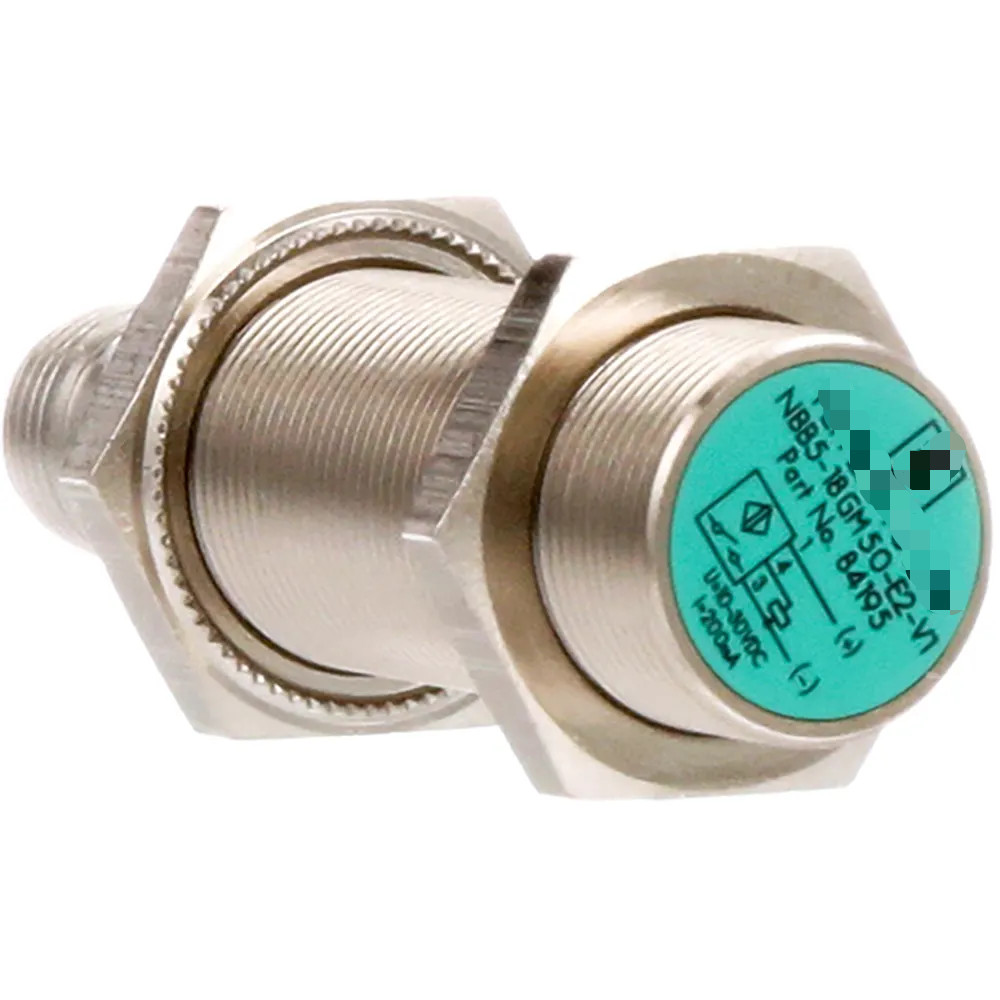

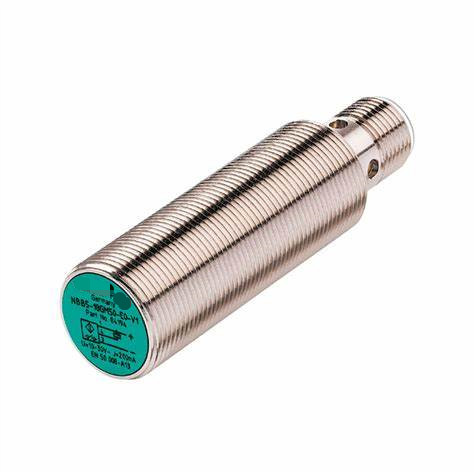

Large Image : P+F NBB5-18GM50-E2-V1 IP68 M18 Inductive Sensor

Product Details:

Place of Origin:	Germany
Brand Name:	P+F
Certification:	CE
Model Number:	NBB5-18GM50-E2-V1

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	on request
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

P+F NBB5-18GM50-E2-V1 IP68 M18 Inductive Sensor

Description

Degree Of Protection:	IP68	Ambient Temperature:	-40 ... 85 °C (-40 ... 185 °F)
Dimensions:	Length 66 Mm Diameter 18 Mm	Switching Function:	Normally Open (NO)
PWIS Conformity:	VDMA 24364-A1/B2/C1/T100°C-W	Standards:	EN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012
Highlight:	IP68 P+F Sensors , 18mm P+F Sensors , NBB5-18GM50-E2-V1

IP68 Od 18mm P+F Sensors NBB5-18GM50-E2-V1

Product Attributes

Attribute	Value
Degree of protection	IP68
Ambient temperature	-40 ... 85 °C (-40 ... 185 °F)
Dimensions	Length 66 mm, Diameter 18 mm
Switching function	Normally open (NO)
PWIS conformity	VDMA 24364-A1/B2/C1/T100°C-W
Standards	EN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012

Product Description

Inductive sensor NBB5-18GM50-E2-V1

Extended temperature range inductive sensor with normally open (NO) switching function and PNP output type. Designed for flush installation with DC output polarity and 3-wire configuration.

Key Features

Thread size: M18
Cylindrical construction type
DC voltage type
Connector plug connection type
Brass housing with white bronze coating
IP68 protection rating
M12 x 1 threading

Technical Specifications

General Specifications

Switching function	Normally open (NO)
Output type	PNP
Rated operating distance	5 mm
Installation	Flush
Assured operating distance	0 ... 4.05 mm

Nominal Ratings

Operating voltage	5 ... 36 V
Switching frequency	0 ... 1950 Hz
Reverse polarity protection	Yes
Short-circuit protection	Pulsing

Mechanical Specifications

Housing material	Brass, white bronze coated
Sensing face	PBT, green
Mass	61 g
Dimensions	Length: 66 mm, Diameter: 18 mm
Mounting	With nuts, M18

Related Part Numbers

KFU8-UFT

KFD0-CS-Ex1.51P

K-HM26-2M-261533

KFD0-CS-Ex2.50P

NBB15-U1-E2

KFD0-CS-Ex2.51P

NBB1,5-5GM25-E2

KFD0-RO-Ex2

NBB1,5-5GM25-E2-V3

KFD0-SCS-Ex1.55

NBB1,5-F79-E0

KFD0-SD2-Ex2.1045

NBB1,5-F79-E2

KFD0-SD2-Ex2.1245

NBB15-U1-Z2

KFD0-TR-Ex1

NBB5-18GM50-E2-V1

KFD0-CC-1
