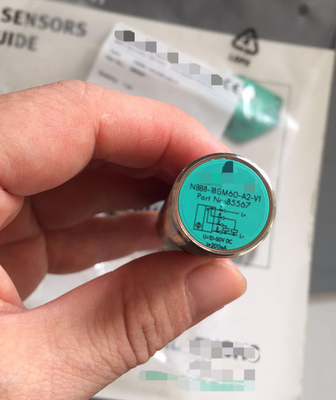

P+F NBB8-18GM60-A2-V1 IP68 Inductive Sensor M18 Thread

Large Image : P+F NBB8-18GM60-A2-V1 IP68 Inductive Sensor M18 Thread

Product Details:

Place of Origin:	Germany
Brand Name:	P+F
Certification:	CE
Model Number:	NBB8-18GM60-A2-V1

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	on request
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

P+F NBB8-18GM60-A2-V1 IP68 Inductive Sensor M18 Thread

Description

Degree Of Protection:	IP68	Ambient Temperature:	-40 ... 85 °C (-40 ... 185 °F)
Dimensions:	Length 76 Mm Diameter 18 Mm	Switching Function:	Complementary
PWIS Conformity:	VDMA 24364-A1/B2/C1/T100°C-W	Standards:	EN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012
Highlight:	IP68 P+F inductive sensor , 76mm P+F inductive sensor , NBB8-18GM60-A2-V1

IP68 76mm P+F Inductive Sensor NBB8-18GM60-A2-V1

Product Specifications

Degree of protection	IP68
Ambient temperature	-40 ... 85 °C (-40 ... 185 °F)
Dimensions	Length: 76 mm, Diameter: 18 mm
Switching function	Complementary
PWIS conformity	VDMA 24364-A1/B2/C1/T100°C-W
Standards	EN 60947-5-2:2007, EN 60947-5-2/A1:2012, IEC 60947-5-2:2007, IEC 60947-5-2 AMD 1:2012

Product Description

Inductive Sensor NBB8-18GM60-A2-V1

High-performance inductive sensor with extended temperature range and robust IP68 protection rating. Features complementary switching function, PNP output, and flush installation capability.

Key Features

Output type: PNP, 4-wire
Installation: flush
Thread mold: M18, cylindrical construction
Housing material: brass with white bronze coating
Degree of protection: IP68
Connection type: connector plug with M12 x 1 threading
Extended operating temperature range: -40°C to 85°C

Technical Data

Rated operating distance	8 mm
Assured operating distance	0 ... 6.48 mm
Operating voltage	5 ... 36 V
Switching frequency	0 ... 1350 Hz
Reverse polarity protection	Yes
Short-circuit protection	Pulsing
Switching state indicator	Multihole-LED, yellow
MTTFd	1255 a
Mission Time (TM)	20 a
Mass	68 g
Tightening torque	0 ... 30 Nm
