M12 A-Coded Female Cordset 4-Pin Straight PUR Cable 10m

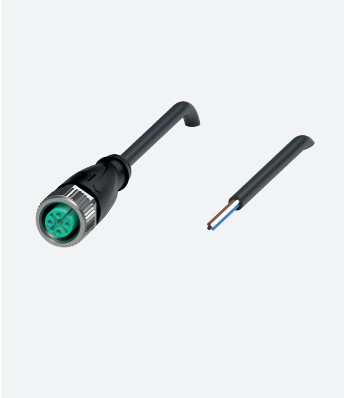

Large Image : M12 A-Coded Female Cordset 4-Pin Straight PUR Cable 10m

Product Details:

Place of Origin:	Germany
Brand Name:	P+F
Certification:	CE
Model Number:	V1-G-BK10M-PUR-R1

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	on request
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

M12 A-Coded Female Cordset 4-Pin Straight PUR Cable 10m

Description

Connection:	Socket	Construction Type:	M12
Style:	Straight	Locking:	Screw Connection
Number Of Pins:	4	Coding:	A-coded
Highlight:	M12 P+F Female cordset , P+F Female cordset , Female cordset V1-G-BK10M-PUR-R1

P+F Female Cordset V1-G-BK10M-PUR-R1 M12 Straight Female Cordset

Key Features

Highly flexible design suitable for robotics applications
Drag chain compatible and abrasion resistant
Torsion resistant for demanding environments
IP68/IP69 protection rating
Free of paint wetting interfering substances
Resistant to microbes, hydrolysis, oil, and salt water
UL listed for USA and Canada
Halogen-free construction
Special design prevents loosening and inaccurate installation

Product Specifications

Connection: socket

Construction type: M12

Style: straight

Locking: screw connection

Number of pins: 4

Coding: A-coded

Electrical Specifications

Operating voltage: max. 250 V AC/DC

Operating current: max. 4 A

Mechanical Specifications

Tightening torque: 0.6 Nm

Mating cycles: min. 100

Degree of protection: IP68 / IP69

Sheath diameter: 4.3 mm

Bending radius: > 10x cable diameter (moving), > 5x cable diameter (fixed)

Length: 10 m

Drag Chain Specifications

Drag chain cycles: min. 10,000,000

Motion velocity: max. 3 m/s

Traverse distance: max. 10 m

Acceleration: max. 10 m/s²

Torsion cycles: min. 10,000,000

Torsional stress: ± 360 °/m

Material Composition

PWIS free: yes

Halogen-free: yes

Plug connector body: TPU, black

Contact surface: gold plated (Au)

Cable sheathing: PUR based on polyether

Environmental Specifications

Ambient temperature (plug): -40 to 90°C (-40 to 194°F)

Ambient temperature (cable, fixed): -40 to 80°C (-40 to 176°F)

Ambient temperature (cable, flexing): -25 to 80°C (-13 to 176°F)

Pollution degree: 3

Dimensions

Summary: Female cordset single-ended M12 straight A-coded 4-pin, PUR cable black, UL approved, drag chain suitable, torsion resistant, oil and salt water resistant, robotics.
